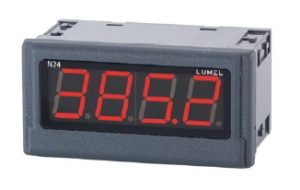

The NEW N24 digital panel meter is designed for measurement of d.c. voltage or current, temperature sensors through Pt100 resistance devices, type J, K thermocouples, a.c. voltage and current.
The N24 has a96 x 48 DIN impact resistant moulded bezel which is rated to IP65, LED digit height is a large 20 mm digit making viewing distance possible from up to 10 metres
The input type is fixed, but parameters programmable by PC software using PD14 programmer are:
decimal point selection, measurement averaging time, input scale to display range, automatic or manual compensation: cold juncti on
temperature for measurement with thermocouples
or wire resistance for measurement with Pt100 (N24T).
Available 230V AC or 24VDC with 24V transmitter power supply.

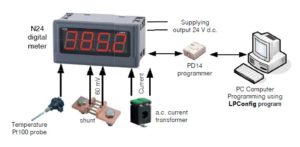

Typical applications
