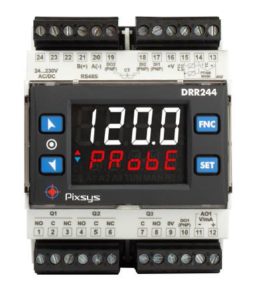

DRR244 DIN rail Process and temperature controller sets the highest standards as a DIN rail mounted, single loop controller. With its large, bright 2 line display, which ensures optimal visibility and increased level of information for the user with new English scrolling Help functions.
Why this DIN rail controller is so Unique:
User selectable Output :
Choose from; Relay, Logic, 0-10V, 4-20mA or Servo Valve Drive.
Universal Power Supply:
24-240VAC/DC no selection required:
Scrolling Help menu:
No manual? No problem! As you click on each parameter, a scrolling description appears in the lower display:
Contactless Smart Phone Configuration:
PC configuration via mini USB port via Labviewsoft software.
3 relay, 2 pnp and 1 analogue mA/V outputs
1 Universal analogue and 2 PNP inputs with 12 or 24VDC selectable transmitter power supply
Program with Android App
Programming is possible by NFC/RFID technology with dedicated App MyPixsys for Android smartphones and now IOS. Power is not required for this function, allowing quick set-up/updates on site. Set up files can be saved and emailed
