V7DFTS3 Multifunction Digital Timer

This versatile up or down predetermining timer has a wide range of innovative and attractive features. Designed with imagination and built to the highest standards it offers up to 35 operation modes, simple programming, 110-240VAC power supply with 24 to 60VAC/DC trigger in one unit.

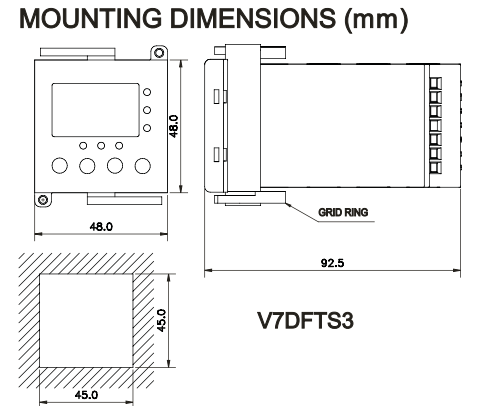

Specification
Supply Voltage 110-240VAC -20/+10%

Timing Range 0.1s to 999 days Two Independent Channel outputs with selectable Timer modes

Tamper proof with key lock feature

Provision to save two independent functional Profiles (P1 & P2)

Isolation High Range: 85-265V AC/ 100-265V DC, Low Range: 24-60V AC/DC / 2 KV

Operating Temp -5 to +55 C

Storage Temp -10 C to +60 C

Operating Modes;

1) On delay

2) On delay constant supply type 2

3) On delay constant supply type 3

4) On delay (control switch resettable)

5) Signal on delay

6) Inverted signal on delay

7) Inverted signal on delay type 2

8) Signal off delay

9) Off delay const. supply type 2

10) Cyclic on/off

11) Cyclic off/on

12) Asymmetric cycle pulse start

13) Asymmetric recycler pulse start type 2

14) Signal on off delay

15) Signal on off delay type 2

16) Signal off/on (new)

17) Impulse on energizing

18) Impulse on/off

19) Accumulative delay on signal

20) Accumulative delay on inverted signal

21) Accumulative impulse on signal

22) Leading edge impulse

23) Leading edge impulse 2

24) Trailing edge impulse

25) Trailing edge impulse 2

26) Delayed impulse

27) Delayed impulse type 2

28) Delayed pulse (constant supply)

29) Delayed pulse (remote trig.)

30) Delayed pulse (const. supply type 1)

31) On pulse (control switch resettable)

32) On pulse (supply reset)mode

33) Leading edge bi-stable or step relay

34) Forward - Reverse Mode with total time

35) Forward - Reverse Mode without total time.
