ATR224 Temperature Controller

ATR224-12ABC Digital Output Temperature Controller

Pixsys ATR224 Process and temperature controller is a single loop controller with 2 relays and a logic output. It stands out with the bright 2 line display which ensures optimal visibility and increased level of information for the operator with new scrolling Help function and 20 character scrolling messages.

Choose from; Relay or Logic output.

Universal Power Supply:
24-240VAC/DC no selection required:

Scrolling Help menu:
No manual? All good! As you click on each parameter, a scrolling description of the parameter appears in the lower display:

Smart Phone Configuration via NFC:

Program with Android App or new IOS adaptor

Programming is possible by NFC/RFID technology with dedicated App MyPixsys. Power is not required for this function, allowing quick set-up/updates on site. Set up files can be saved and mailed

So Many Benefits;

Contactless set up without need for power. Touch back of the phone on bezel of the controller to transfer configuration parameters.
Clone the set up parameters of one controller into another in seconds.
Need Support; we can set a controller up here send you the file via email/WhatsApp to your phone and you drop it straight over to the controller.
Store multiple frequently used configurations as file names, for 100% accurate and quick recall of past applications.

Program with Software

Programming is also possible by standard windows PC using free labsoftview utility & mini USB cable. Power is not required for this function

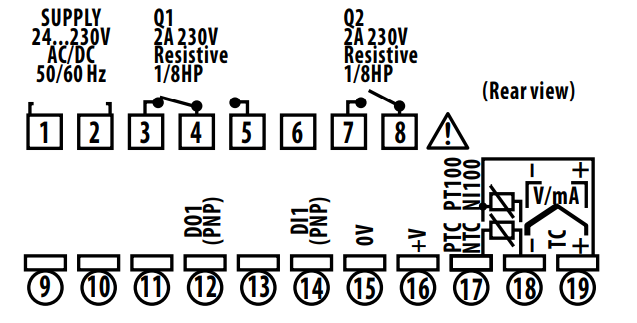

Connection Layout

Dimmensions

SPECIFICATION

48 x 48 (front panel) x 105 mm

Power supply 24-230 V AC / DC +-15% 50/60 Hz - galvanical isolation 2,5KV

Consumption 8 W

Display 4 digits 0.5" white + 4 digits 0.3" red

Operating conditions Temperature 0-45 degC, humidity 35-95 RH%

Material Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2

Weight Approx. 185 g

Sealing IP65 (front panel) IP20 (box and terminal bloks)

Quick set-up options Memory Card, software LABSOFTVIEW, or EASY-UP, APP / NFC Programming via APP MyPixsys for Android smartphones

Res. 16 bit, selectable Programmable up to 2,1 ms (frequency up to 470 Hz)

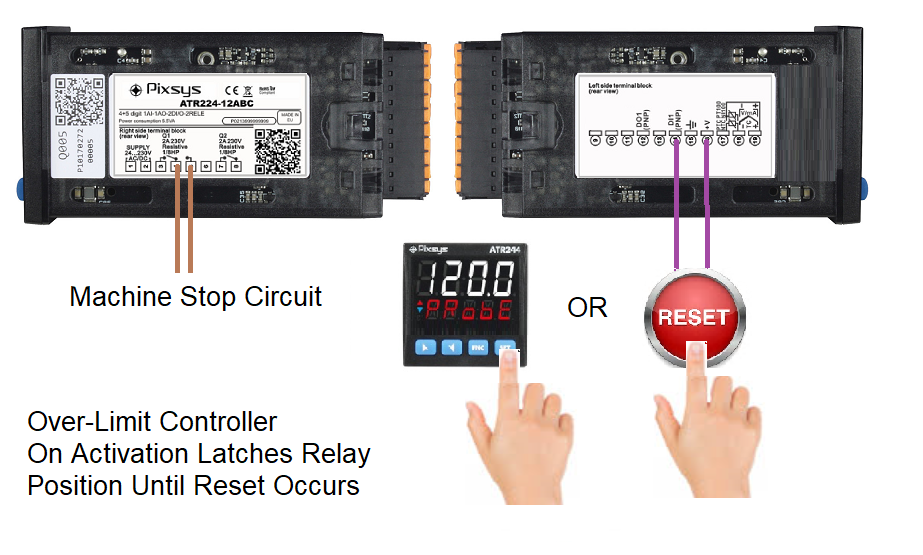

1 digital input Setpoint change, Hold, Run, Tuning launch, Start / Stop, Lock configuration, reset latched output

Outputs 2 Relay 5 A - 250 V AC resistive change

1 SSR 12 / 24 V DC - 30 mA max
