K109UI Signal Converter
24VDC powered Signal converter and signal isolator with 4-20mA, 0-10V output signals
K109UI is a DIN rail signal convrter only 6.2mm width which can accept multiple inputs including (0) 4-20mA 0-10V, 0-30V, 0-1V, (0) 1-5V and provide 0-10V, (0) 4-20mA active outputs. K109UI can also provide square root extraction, linearization for cyclindrical tank in a tank level application and invert signals, all selectable via dip switches. Galvanic isolation is 3 way to 1500 VAC and Power supply is 19.2 to 30VDC

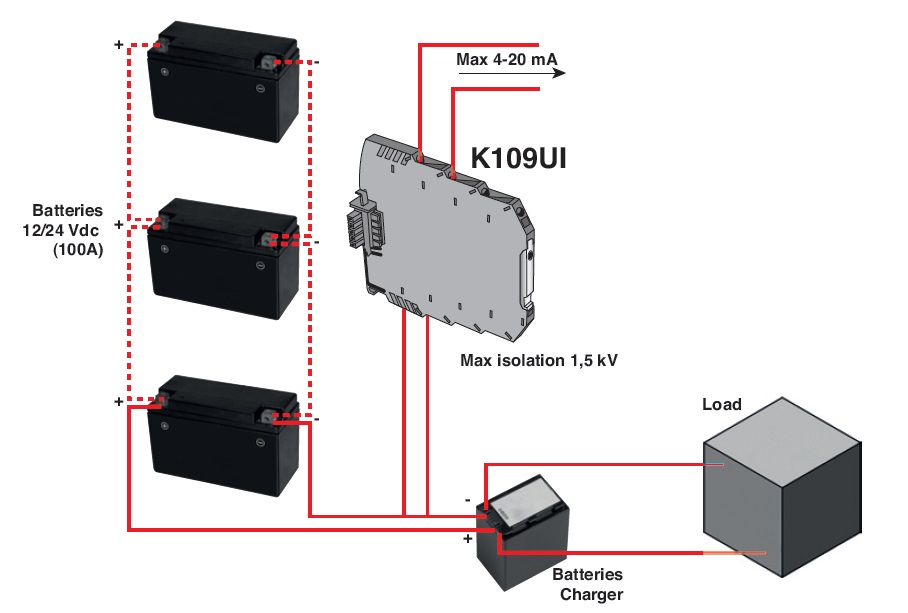

Typical K109UI Signal Converter Application
The K109UI signal converter measures voltage in battery load bank and converts measurement to 4-20mA

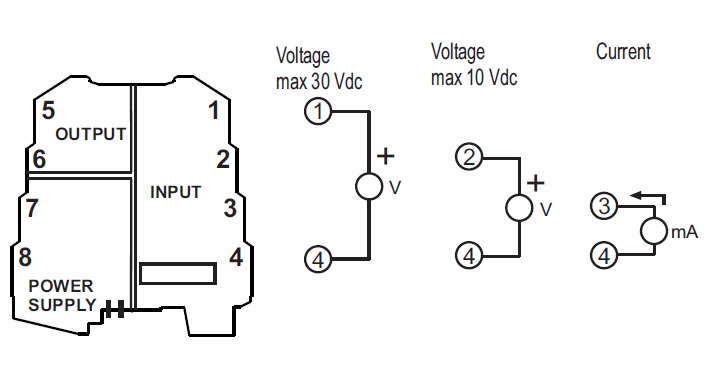

K109UI Signal Conditioner Connections

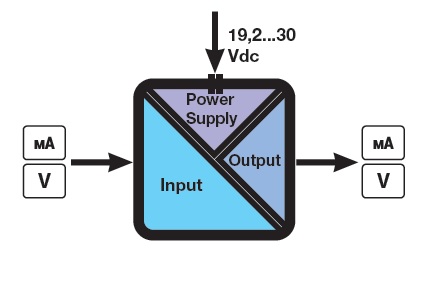

3 Way Galvanic isolation to 1.5KV

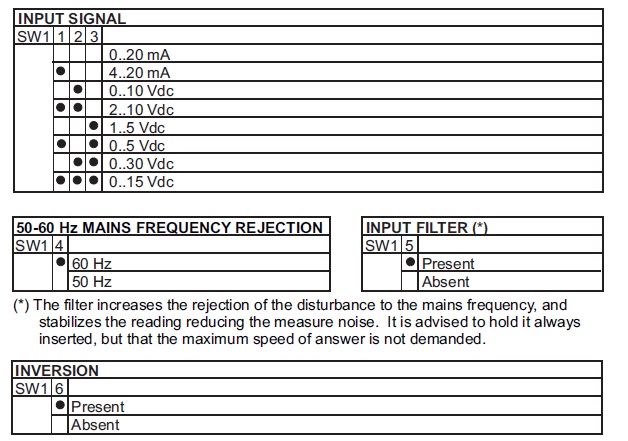

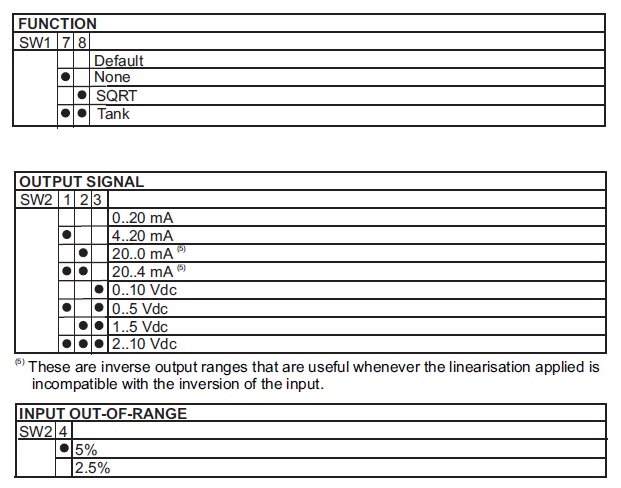

K109UI Signal Converter Dip Switch Settings
K109UI Signal Conditioner Specification
Power supply 19,2...30 VdcPower consumption 500 mW
Isolation 1.500 Vac (3 way)
Transducer Power Supply No
Accuracy 0,1%
Response time 40 ms
Status Indicators Power supply, error
Setting Dip Switches
Mounting 35 mm DIN rail guide
Protection Degree IP20
Operating
Temperature -20..+65 DegC Dimension (W x H x D) 6,2 x 93 x 102,5 mm
INPUT:
Channel Numbers 1
Voltage Range: 0..10 / 10..0 / 0..5 / 1..5 / 0..15 / 0..30 V (inversion as well)
Impedance: 110 kohm - 325 kohm
Current Range: 4..20 / 20..4 / 0..20 / 20..0 mA
Impedance: 35 ohm
OUTPUT:
Channel Numbers 1 Voltage Range: 0..10 / 10..0 / 0..5 / 1..5 V
Min load resistance: 2 kohm
Current Range: 4..20 / 20..4 / 0..20 / 20..0 mA
Max load resistance: 500 ohm
