2000.35.016 Temperature Transmitter
Loop Powered temperature transmitter for Thermocouple and RTD Sensors
2000.35.106 Loop Powered Temperature Transmitter is from a new generation of flexible isolated measurement devices which are configurable by NFC via a smart phone or RFID PC converter. The 2000.35.016 accepts 2, 3 and 4 wire RTD, mV, resistance, J,R,S,N,B,E,T and type K Thermocouple inputs with adjustable filtration and basic logger ability. The temperature transmitter is powered via 6-32VDC and galvanically isolated to 1.0 kV
Configuration via PC or SmartPhone APP

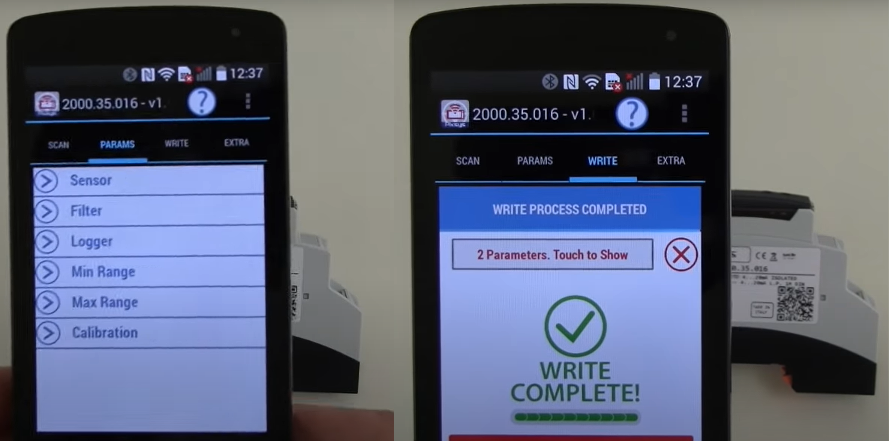

The 2000.35.016 can be configured via free smartphone APP available on Google play, or via the bluetooth programmer with the IOS system. This provides a fast and simple method of configuration and ease of record storing and file sharing.

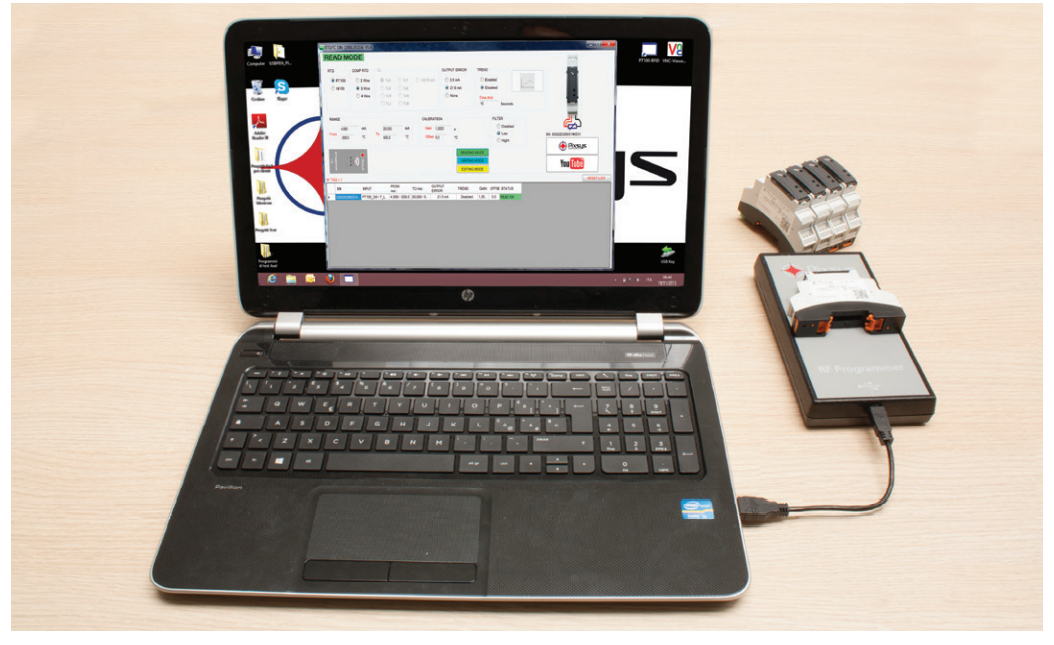

Otherwise the temperature transmitters can be set up with wirless RFID programmer which also allows extraction of log files.

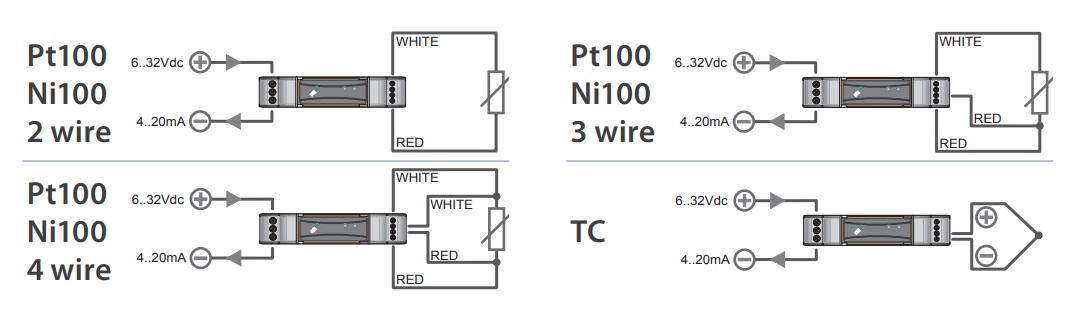

2000.35.016 Temperature Transmitter Connections

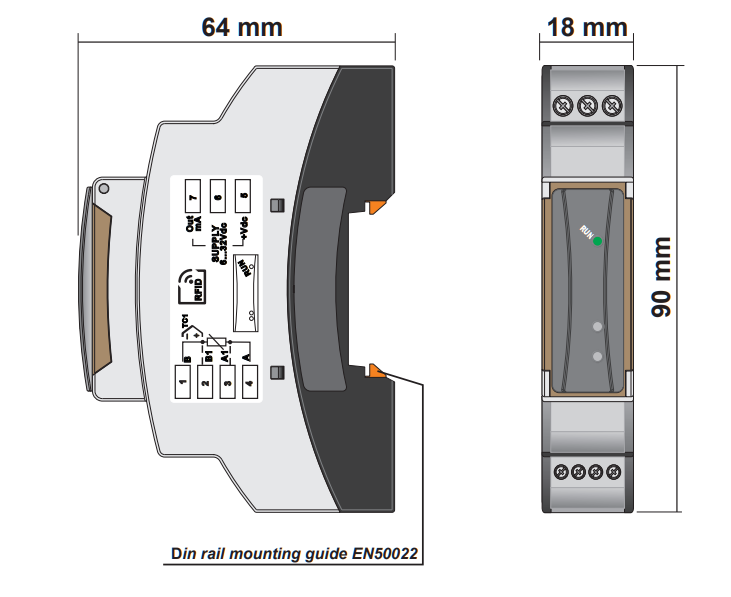

2000.35.016 Temperature Transmitter Dimmension
2000.35.016 Temperature Transmitter Specification
1 Operating range 6-32 Vdc2 Current output 4..20 mA (2 wires)
3 Functional insulation 1K Vac
4 Output resolution 2 micro amp
5 Over-range output + 5 DegC
6 Under-range output - 5 DegC
7 Failure output selectable 21mA, 3,8mA or anyone
8 Current output protection 30 mA approx.
9 Rejection 50-60 Hz
10 Max transmission error greater between 0,1% f.s. or 0,2°C
11 EMI < 0,5%
12 Cable resistance Max 20 Ohm
13 Temperature coefficient < 100 ppm
14 Sampling time 300 ms
15 Response time (10..90%) 600 ms
16 Sealing IP 20
17 Conformity CE, EN 61000-6-4, EN 61000-6-2
3.2 Thermo-mechanic features
1 Operating temperature -40..+85 DegC
2 Humidity 30-90% @ 40 DegC (non condensing)
3 Storage temperature -40..+105 DegC
4 Connections Screw pins
5 Conductors section 1 mm2
6 Wires strip 8 mm
7 Enclosure Nylon (PA66)
4 Input PT100 Measuring range: -200..+600 degC
Resistance range: 18,5...314 Ohm
Connection: 2, 3, 4 wires Ni100 Measuring range: -60..+180 degC
Resistance range: 69,5..223 Ohm Connection: 2, 3, 4 wires
TC K Measuring range: -260..+1360 degC
TC S Measuring range: -40..+1760 degC
TC R Measuring range: -40..+1760 degC
TC J Measuring range: -200..+1200 degC
TC T Measuring range: -260..+400 degC
TC N Measuring range: -260..+1280 degC
TC B Measuring range: +40..+1820 degC
TC E Measuring range: -260..+940 degC
mV Measuring range: -10..+70mV
