Analog Signal Converters
Pixsys 2000.35.016 Termperature Transmitter

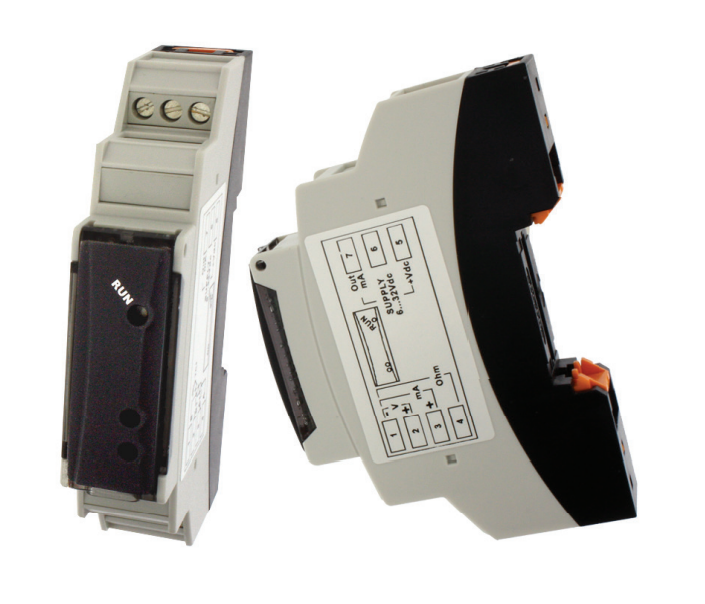

2000.35.016 Isolated Loop Powered Converter
2000.35.106 Loop Powered Temperature Transmitter is from a new generation of flexible isolated measurement devices which are configurable by NFC via a smart phone or RFID PC converter. The 2000.35.016 accepts 2, 3 and 4 wire RTD, mV, resistance and Thermocouple inputs with adjustable filtration.

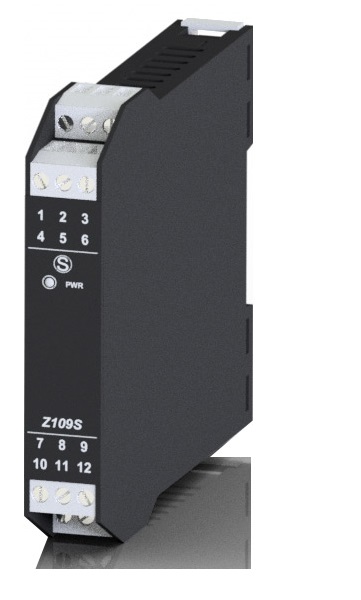

Seneca 4-20mA loop isolator
Z109S 0/4-20mA Signal Loop Isolator
Z109S is a very simple, flexible and cost efficient DIN rail 4-20mA signal isolator that provides signal isolation to 1500V to 4-20mA measurement loops. The input can be active (powered by the converter with 20V stabilized transmitter power) or passive, requiring external power on the 4-20mA signal. The Output can also be active or passive, selection is made via terminal connections. Power supply is 10-40VDC/18-28VAC

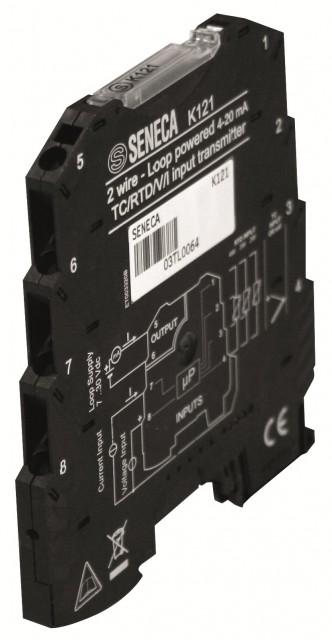

Seneca K121 Programmable Input 4-20mA Powered Signal Conditioner
K121 Universal Input
K121 is a high performance universal input loop powered signal converter, able to accept almost all analog inputs ( 4 to 20 ma, mV, 0-10V, PT100, Pt1000, Pt500, Ni100, Thermocouple, Ohms ) and convert / isolate it into a 4 to 20 milliamp current loop powered signal. The output mode can be normal or inverted scale over range, % output in event of faulty sensor are selectable parameters available by PC software. 2 way, 1.5 kV galvanic isolation between input / output ensures circuit measurement integrity
Seneca K109UI Analog Signal Converter for mA and < 30V DC
K109UI Analog Input
K109UI Signal Conditioner Technical Data
K109UI is a high performance programmable analog input signal converter & signal isolator is able to accept analog inputs 4-20 mA, 0-10V & 0-30V full range and convert / isolate it into either a 4 to 20mA or 0 to 10V output. Power supply is 19.2 - 30VDC. User programming is very simple by on board dipswitches. 3 way 1.5 kV galvanic isolation between input / output / power supply ensures circuit measurement integrity
Seneca K Series Slimline Transmitters
K line Signal Converters
Seneca K series, signal converter and signal isolator line offers a range of cost effective, flexible, slimline signal conditioner solutions ideal for when panel space is limited. The 2 most popular devices above between them cover the majority of applications, in addition to these, there is also:
K109PT: Pt100 to DC current / voltage signal isolator / signal converter
K109TC: TC to DC current / voltage signal converter, with trip amplifier
K109LV: DC low voltage to current / voltage converter shunt converter

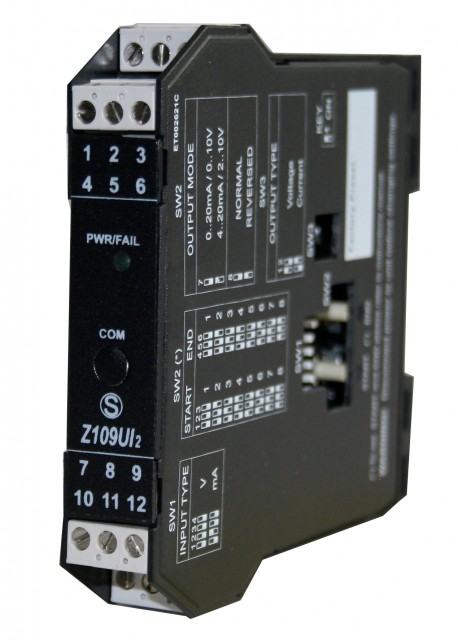

Seneca Z109UI Universal Analog Signal Converter
Z109UI Converter
Z109UI2 is a signal conditioner & signal isolator, that accepts (0) 4-20mA 0-10V 0-1000mV full range inputs and converts these into 4 to 20 milliamp or 0 to 10V. All parameters are configurable through dip-switches or by free EASY wizard based PC software. The Z109UI can provide power for 2 wire sensors. 3 way 1.5 kV galvanic isolation between the power supply / input / output
Seneca Z170REG Signal Splitter or Signal Duplicator
Z170REG-1 Signal Splitter Datasheet
Z170REG signal splitters or signal repeater will accept almost all analog inputs( 4-20mA, mV, 0-10V, PT100, Pt1000, Pt500, Ni100, Thermocouple, Ohms ) and provide 2 independent 4-20 mA or 0-10V outputs. The Z170REG signal splitter parameters are configurable through dip-switches or the free EASY wizard based PC software. The auxiliary power supply provides option of active or passive 4 to 20 mA connections on the output side. 4 way 1.5 kV galvanic isolation between Power supply / input / output1 / output2
Seneca Z109REG2 Universal Input Signal Converter With Trip Amplifier
Seneca Z109REG2 Universal Converter
Z109REG2 signal converter & signal isolator will accept possibly the largest range of analog inputs of any device of its type, which includes ( 4 to 20 mA, mV, 0 to 10V, PT100, Pt1000, Pt500, Ni100, Thermocouple, Ohms , NTC thermistor) and provide an independent 4- 20mA or 0-10V output. In addition it has a single digital output programable for trip amplification. Parameters are configurable through dip-switches, the free EASY wizard based PC software or a hand held programmer. The auxiliary power supply provides option of active or passive 4-20mA connections on the output side. 3 way 1.5 kV galvanic isolation between Power supply / input / output

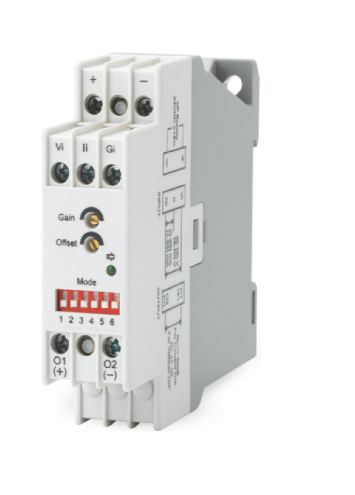

2SC3D11CC3 SIGNAL TRANSDUCER
Basic Converter and Isolator for mA and V
2SC3D11CC3 Signal Converter Manual
2SC3D11 basic Signal Converter & signal isolator will accept (0) 4-20mA 0-10V input and provide a (0) 4-20mA Active output or 0-10VDC signal. 24VDC supply with 3 way 3.75 kV galvanic isolation between Power supply / input / output. Slection via dipswitch, Gain and offset adjustment via potentiometers

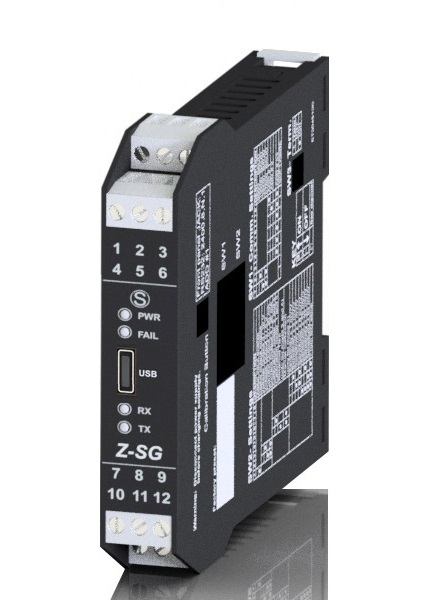

2SC3D11-basic-Signal-Converter.jpgSeneca ZSG Strain Gauge Amplifier for Load Cells
ZSG Strain Gauge Transmitter
ZSG is a 24 bit strain gauge signal converter, or load cell amplifier which uses 6 wire or 4 wires method of measurement with sensitivity from 1 to 64mV/V. The strain gauge signal is converted to Modbus RTU serial protocol and either 4- 20 mA or 0-10v analog output. , settable by DIP-switch for integer values or via free EASY wizard based PC software. Stable weight indication & writing of the tare value in non volatile memory by digital input or Modbus RTU command is possible. Supply is 19-28VAC/10-40VDC & 3 way 1.5 kV galvanic isolation between Power supply / input / output
2SC3D11-basic-Signal-Converter.jpgDigital Signal Converters

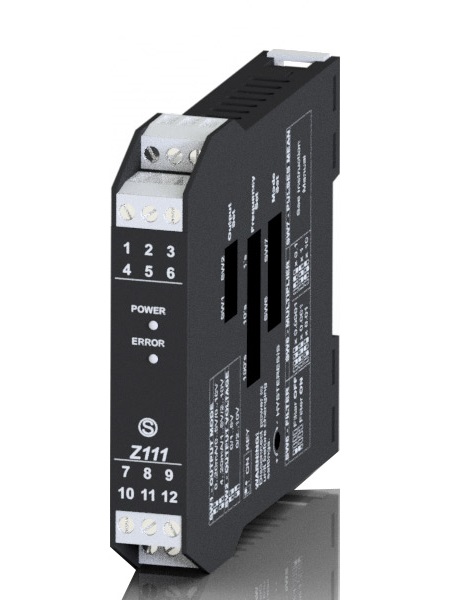

Seneca Z111 Frequency to Analog Signal Converter
Z111 F-I Conditioner
Z111 frequency to analog signal conditioner, converts a frequency input into a standard 4- 20mA / 0- 10V signal. The Z111 accepts, NPN, PNP, variable reluctance, volt free contact inputs from 0.001 to 10kHz & is completely configurable through on board dip switches. Supply is 19-28VAC/10-40VDC & 3 way 1.5 kV galvanic isolation between Power supply / input / output

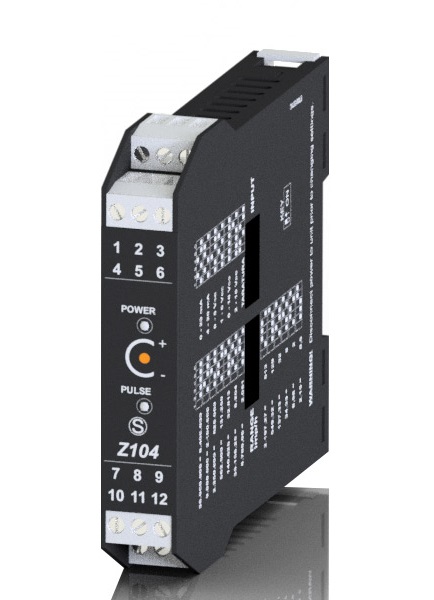

Seneca Z104 Analog Converter to Frequency
Z104 F-I Conditioner
Z104 analog to frequency signal converter, converts a standard 4-20 mA / 0-10V signal in to an NPN open collector or reed switch (when <40 Hz) pulse frequency. The Z104 is completely configurable through on board dip switches. Supply is 19-28VAC/10-40VDC & 3 way 1.5 kV galvanic isolation between Power supply / input / output

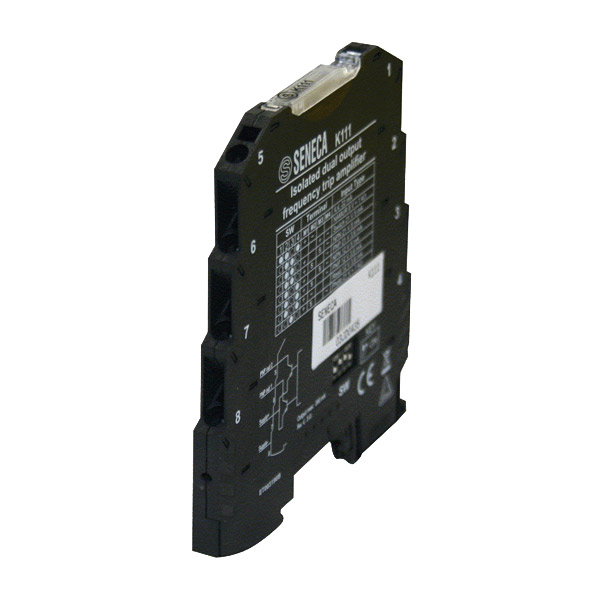

Seneca K111 dual output frequency trip amplifier
K111 Trip Amplifier
K111 is a dual output isolated pulse input trip amplifier, signal splitter for specific on/off sensors. In addition it is also an input repeater and frequency divider of maximum frequency 20 KHz. A perfect application is stand alone speed monitoring system of rotating shaft. Output 1 & 2 are independent from each other and can be configured one as alarm and the other as frequency repeater. 2 way 1.5 kV galvanic isolation between input / output

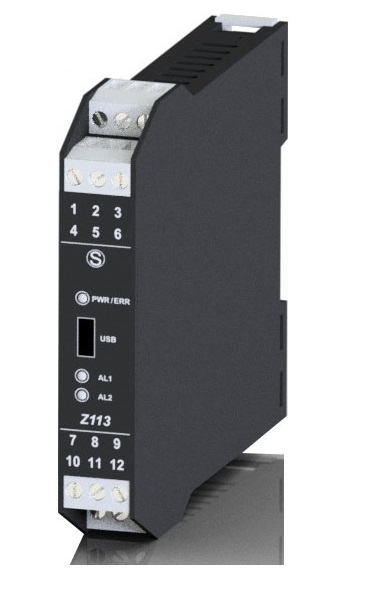

Z113-1
Z113-1 dual output trip amplifier
Z113-1 DIN rail mounted trip amplifier with two normally open relay outputs which share the same common andh accepts multiple inputs including (0)4-20mA 0-10V, 0-1V, (0)1-5V, thermocouple, RTD sensors and Potentiometers. Programmable with the free EASY programme software for Windows and standard USB cable.
DRR244-13ABC-T Trip Amplifier / Controller
DRR244 DIN Rail controller, programmable inputs PT100, PT500, PT1000, Potentiometer, thermocouples, 10K NTC thermistor, 0-10 V, 4-20 mA with 12V or 24VDC selectable transmitter power for 2 wire 4-20mA devices. 3 relays, 1 4-20mA / 0-10V analogue output with galvanic isolation. USB Flash card & PC configuration via labsoftview, contactless smart phone configuration with free APP available on Google Play. Modbus RTU is standard, supply 24...230VAC/VDC
Serial Communications Signal Converters

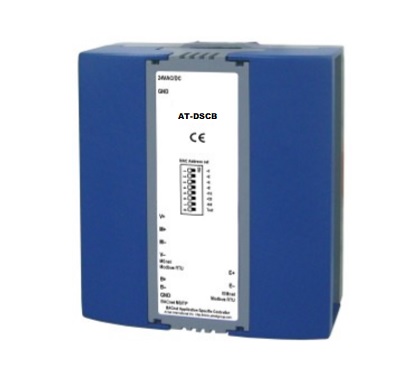

AT-DSCB Modbus to BACnet Gateway
AT-DSCB Modbus MS/TP to BACnet Converter
AT-DSCB is a low cost BACnet gateway that converts up to 100 registers RS485 Modbus RTU to standard BACnet MS/TP. Modbus Baud rate up to 38400 BPS and BACnet Baud rate up to 76800 BPS with programmable instance number and MAC number. The Modbus port can be Master or Slave and programmed with multiple formats.

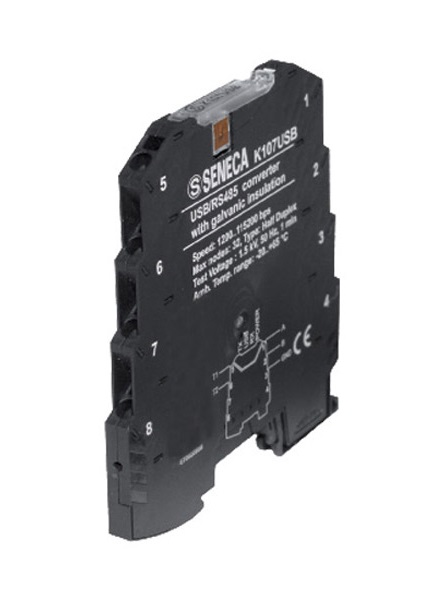

.Seneca K107USB USB to RS485 Converter
K107USB
K107B converts a RS485 to standard PC USB port. The driver recognizes the serial interface as a standard serial port so the use of the product is allowed through any software able to communicate directly with standard serial ports of the operating system COM 1, COM 2, etc. USB & RS485 ports are fully isolated from each other 1.5 KV
Seneca K107B RS232 to RS485 Converter
K107B
The K107B accepts a single half duplex RS485 input and provides a single, isolated, half duplex RS-232 output, the K107B is ideal for most serial conversions and isolated transmissions over long distances. RS232 & RS485 ports are fully isolated from each other to 1.5 KV

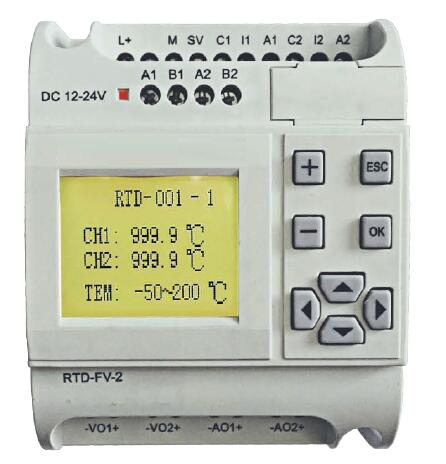

RTD-FV2 Double PT100 Transmitter
Transmitter to convert RTD to 0-10V, 4-20mA or Modbus
RTD-FV2 is a flexible dual channel DIN rail mounted temperature transmitter to convert PT100 into an active 4-20mA, 0-10VDC signal or Modbus RTU RS485 serial communications. Powered from a 12-24VDC supply, baud rate & address are configurable via the key pad.
Seneca Z-PC Range of Signal to Modbus Converter
ZPC Modbus Converters
The ZPC range of analog and digital to Modbus RTU signal converters, each model specific for various input types providing up to 6 way 1.5 kV galvanic isolation, down to 1 ms response time & simple set up using the free EASY wizard based PC software utility.
Pixsys Modbus & Canbus expansion modules
MCM260X-1AD 16 Digital outputs 700mA MCM260X-2AD 16 Digital outputs PNP MCM260X-3AD 8 Digital outputs 700mA + 8 Digital inputs PNP MCM260X-4AD 8 Relay outputs 5A + 8 Digital inputs PNP MCM260X-5AD 4 Analogue inputs V,mA,TC,RTD,mV & 2 Analogue outputs V/mA MCM260X-9AD 4 Analogue inputs V,mA,TC,RTD,mV & 2 Analogue outputs V/mA, 16 digital I/O
Din rail mount expansion modules for Pixsys and third party devices, all modules utilize both Can Open and Modbus RTU protocol, user selectable input types and communication settings. 12-24VAC/DC supply.
Analogue I/O & High Speed digital I/O Combination
MCM260X-9AD 4 Analogue inputs V,mA,TC,RTD,mV & 2 Analogue outputs V/mA, 16 Digital I/O
MCM260X-9AD universal analogue signal and 16 digital I/O DIN rail expansion with Modbus RTU slave protocol. 4 universal 16-bit analogue inputs, 2 analogue outputs programmable for 0-10V or 4-20mA. 8 high speed digital PNP inputs and 8 digital PNP outputs max 700mA resistive load.
AC/DC Current transfomer and Current Transducer

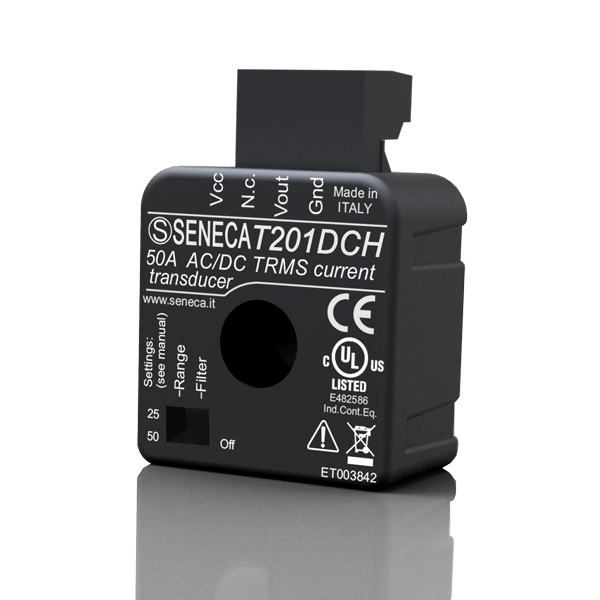

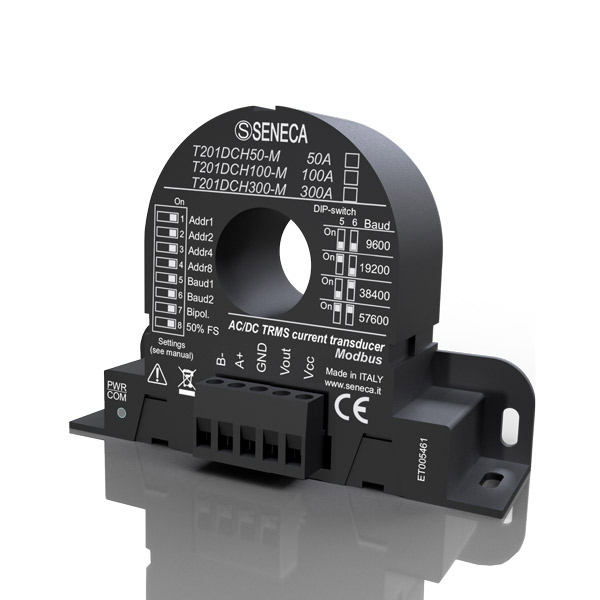

T201DCH 4-20mA Current Transformer
T201DCH Current Tranfomer Datasheet
T201DCH xx LP is an isolated, DIN rail mount, contact-less AC / DC current transformer / CT using pioneering inductive measurement technology, with loop powered current loop analog signal. There are 3 units which cover full scale ranges 25A / 50A, 50A / 100A & 150A / 300A selectable by dipwitch
T201DCHxxM AC Current Transformer with Modbus
T201DCHxxM Modbus CT datasheet
T201DCH xx M is an isolated, DIN rail mount, contact-less AC / DC current transformer or current transducer with Modbus RTU RS485 serial communications and a seperate 0-10V linear output. There are 3 units which cover full scale ranges 25A / 50A, 50A / 100A & 150A / 300A selectable by dipwitch and new +/-600A MU version

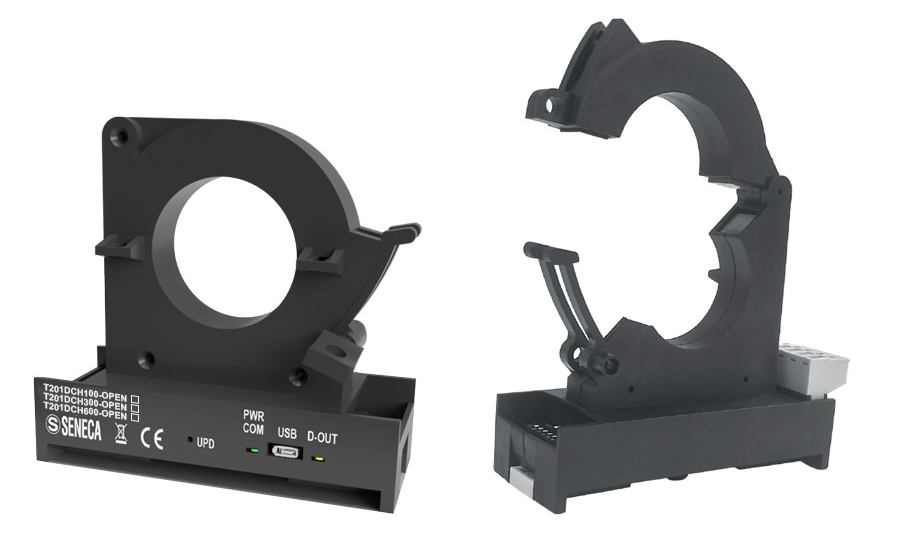

T201DCHxxX-OPEN Split Core Current Tranducer with Modbus
T201DCHxxx-OPEN Modbus CT Installation
T201DCH xxx OPEN is an isolated, DIN rail mount, contact-less AC / DC current split core current transducer with Modbus RTU RS485 serial communications and a seperate 0-10V linear output. There are 3 units which cover full scale ranges 50A / 100A, 150A / 300A & 300A / 600A selectable by dipwitch
Pixsys TRMS 50A AC/DC to 4-20 mA Current Transformer
2000.35.013 CT
2000.35.013 25A / 50A selectable current transformer is an isolated, DIN rail mount, contact-less TRMS AC/DC current transformer with 4-20mA analog signal. It is loop powered with 12-30VDC
Pixsys TRMS 50A AC/DC to Modbus Current Transformer
2000.35.014 CT
2000.35.013 50A current transformer is an isolated, DIN rail mount, contact-less TRMS AC/DC current transformer with 0 to 10V analog signal & Modbus RTU. It requires 12-30VDC power
