Pixsys DRR244 DIN Rail Mount Controller
DRR244-13ABC-T Controller
Pixsys DRR244 DIN rail Process and temperature controller sets the highest standards as a DIN rail mounted, single loop controller. With its large, bright 2 line display, which ensures optimal visibility and increased level of information for the user with new English scrolling Help functions.
Why this DIN rail controller is so Unique:
User selectable control Output :
Choose from; Mechanical Form C Relay, PNP transistor output, 0-10V, 4-20mA or Servo Valve Drive.
Universal Power Supply:
24-240VAC/DC no selection required:
Scrolling Help menu:
No manual to hand? No problems! As you click on each set up parameter, a text description scrolls across the lower display:
Contactless Smart Phone Configuration:
PC set up via micro USB port using free Labviewsoft software.
3 changover relay, 2 pnp and 1 analogue mA/V outputs 1 Universal analogue V/mA and 2 PNP inputs with 24 or 12VDC user selectable transmitter auxilliary power supply
Program with Android App

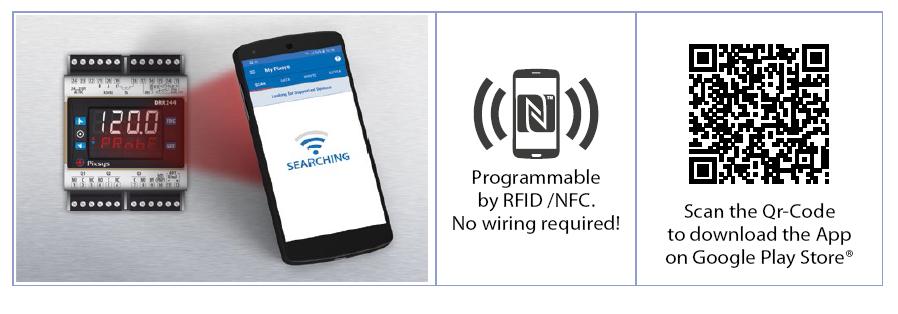

Programming is possible by NFC/RFID technology with dedicated App MyPixsys for Android smartphones and now for IOS systems using the bluetooth adaptor. Power not required for this function, allowing fast set-up and updates in situ. Save set up files and email
So Many Benefits;
Contactless programming with or without power. Place the rear of the phone in front of the controller wait a second for connection then transfer set up parameters from the smartphone over to the controller. Or upload from the controller onto the phone..Clone controllers in seconds, transfer set up parameters from one controller.
Need technical Support; we can interperate your requirements and set a controller up here at the office then send you the file via email or/WhatsApp straight to your phone for you download straight to the controller.
Store multiple commonly used configurations as file names, for 100% accurate configuration, fast recall of past jobs and project maintenance.
Additional Functions also available as standard:
2,3 or 4 Set-point Switch
2 Programmable Timers in MM.SS or HH.MM stop start from I/O or threshold.
Retransmission of SP or PV if mA/V when not Used For Control
Manual Reset of Relay if Used For Over Temperature Limit Control
Auto/Manual Drive
The outputs can be selected as command output, alarms, analogue retransmission. Serial communication via RS485 with Modbus RTU/Slave protocol is standard.
Program with Software
Programme by standard windows PC using free labsoftview software & mini USB cable. Power not required for this function

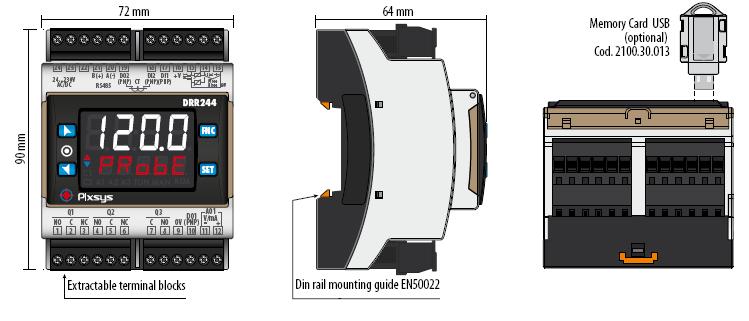

Dimmensions
>
SPECIFICATION
Power supply 24-230 V AC / DC +-15% 50/60 Hz - galvanical isolation 2,5KV Consumption 8 W Display 4 digits 0.5" white + 4 digits 0.3" red Operating conditions Temperature 0-45 degC, humidity 35-95 RH% Material Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2 Weight Approx. 185 g Analogue input - Resolution 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic compensation of cold junction) -25..85 DegC, +/-0,2% F.S. +/-1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), process signals 0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KOhm (50000 points) Res. 16 bit, selectable Programmable up to 2,1 ms (frequency up to 470 Hz) 2 PNP inputs Setpoint change, Hold, Run, Tuning launch, Start / Stop, Lock configuration Outputs 3 Relay 5 A - 250 V AC resistive change 2 PNP outputs 12 / 24 V DC - 30 mA max 1 analogue output selection 4-20 mA (40000 points +-0,2% F.S.) or 0-10 V DC (40000 points +- 0,2% F.S.) for command or retransmission PV / SPV Serial communication RS485 Modbus RTU - Slave (4800-115200 baud) Quick set-up options USB Flash Card, software LABSOFTVIEW, or EASY-UP, APP / NFC Programming via APP MyPixsys for Android smartphonesBack to top
