PROCESS & TEMPERATURE CONTROLLERS
-
-
Standard Temperature Controller & PID Controller Solutions

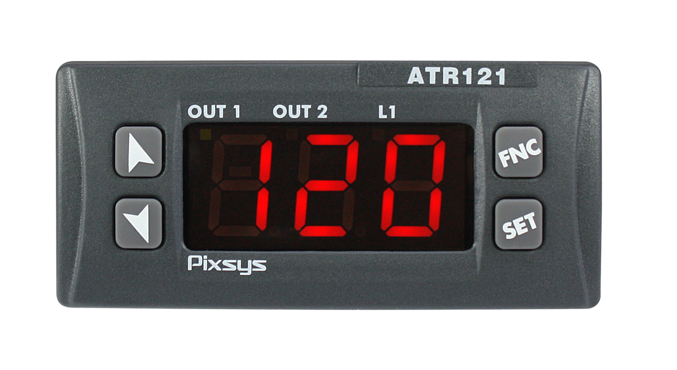

Pixsys ATR121 Temperature Controller
Economically priced 3 Digit PID process & temperature controller, size 32 x 74mm, programmable inputs thermocouple type K, J, R, S, PT100, 0-10V, 4-20mA & NTC/PTC thermistor with 12V transmitter power supply. Programmable outputs SSR/Relay, memory card, IP65 bezel, AC or DC supply is standard. The ATR121 Temperature controller is also available with DIN rail mount adaptor and Modbus RTU

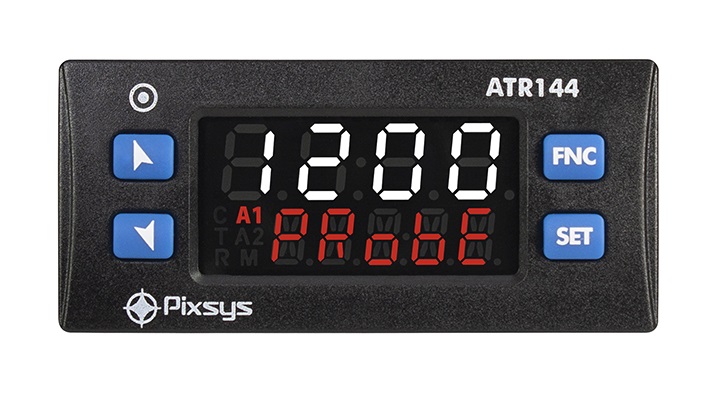

Pixsys ATR144 4 digit Temperature Controller with NFC
ATR144 72 x 36mm DIN Process & Temperature Controller
4 Digit PID process & temperature controller, size 32 x 74mm x 53mm depth, accepts inputs PT100, 0-10V, 4-20mA, NTC/PTC thermistor & thermocouple type K, J, R, S, with 12 and 24V sensor power for 2 wire transmitters. Outputs PNP / Relay, Smart Phone Connectivity by NFC, IP65 bezel, 24-240 AC or DC supply RS485 Modbus RTU slave option. ATR144 Temperature controller can also provide servo drive control

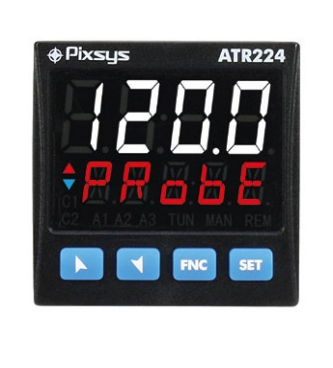

ATR224 PID Temperature Controller
ATR224-12ABC 48 x 48mm Process & Temperature Controller
Specification ATR224 Temperature Controller
Dual 4 Digit PID 48 x 48 DIN process & temperature controller, accepts inputs PT100, 0-10V, 4-20mA, NTC/PTC thermistor & thermocouple type K, J, R, S, N with 12 and 24V sensor power for 2 wire transmitters. Outputs PNP + 2 relays, Smart Phone Connectivity by NFC, IP65 bezel, 24-240 AC or DC supply.
ATR244 Blueline Advanced PID Temperature Controller
ATR244 1/16 DIN Process & Temperature Controller
Specification ATR244 Temperature Controller
1/16 DIN 48 x 48 Advanced process and temperature controller, 1 or 2 programmable inputs thermocouple type K, J, R, S,N, T PT100, 0-10 V, 4-20 mA & 10K NTC thermistor with 12 or 24V transmitter power supply. 1 or 2 User programmable outputs relay, SSR, 0-10V, 4-20mA, servo valve drive, programmable by Android smartphone via NFC, supply 24...230VAC/VDC

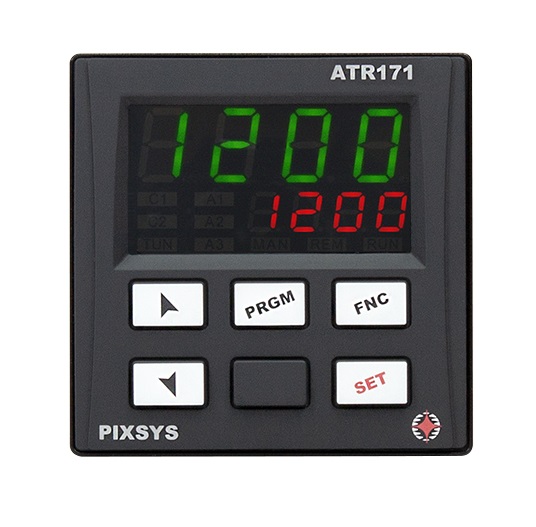

Pixsys ATR171 Temperature Controller
ATR171
72 x 72 DIN standard single loop temperature controller, programmable inputs thermocouple, PT100, PT1000, 0-10 V, 4- 20 mA, 10K NTC & PTC thermistor. Relay, SSR , 0-10V, 4-20mA, servo valve drive control outputs, ModBUS RTU, 12VDC transmitter power supply, memory card & PC configuration, supply 24...230VAC/VDC

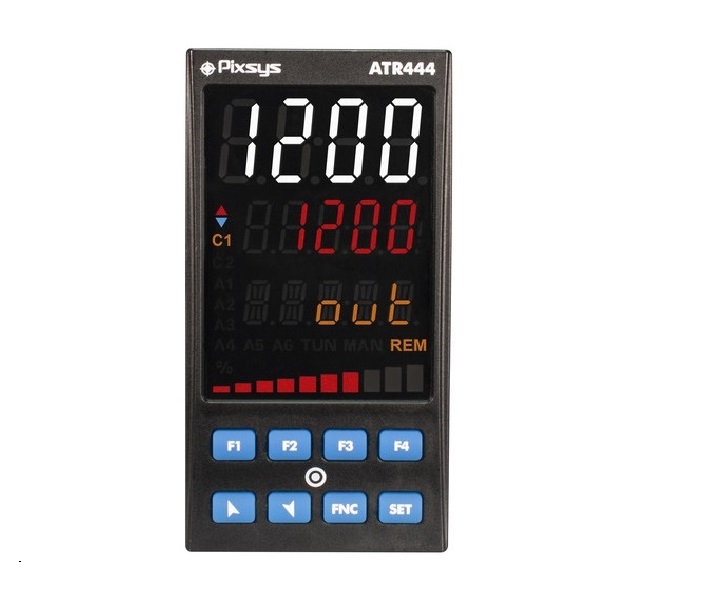

ATR444 Temperature Controller with up to 8 Outputs
ATR444 96 x 48 1/8th DIN Controller
Single or Dual loop 1/8 DIN 48 x 96 PID controller with up to 8 outputs, user programmable inputs PT100, PT500, PT1000, thermocouple type K, J, R, S, N, T, 10K NTC thermistor, 0-10 V, 4-20 mA & with 12 or 24V auxilliary power for 2 wire 4-20 mA sensors. User programmable outputs include relay, SSR, 0-10V, 4-20 mA & servo valve drive, memory card & PC configuration via PC software, IP65 bezel, Modbus RTU, very user freindly 8 step program and Mobile phone program APP via NFC, supply 24...230VAC/VDC

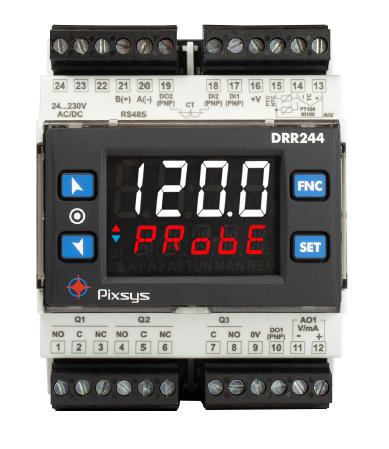

Pixsys DRR244 DIN Rail Mounted Controller | Temperature Controller
DRR244-13ABC-T DIN Rail Mount Controller
DRR244 DIN Rail controller, programmable inputs PT100, PT500, PT1000, Potentiometer, thermocouples, 10K NTC thermistor, 0-10 V, 4-20 mA with 12V or 24VDC selectable transmitter power for 2 wire 4-20mA devices. User programmable control outputs include 0-10V, 4-20 mA, relay, SSR & servo valve drive. 3 relays, 2 pnp output 2 pnp inputs. USB Flash card & PC configuration via labsoftview, contactless smart phone configuration with free APP available on Google Play. Modbus RTU is standard, supply 24...230VAC/VDC
Multi-Stage Programme Pid Controllers
ATR444 Temperature Simple Single program Controller
ATR444 96 x 48 1 Program of 12 Stages
1/8 DIN 48 x 96 PID controller with logic, analogue or relay outputs, user programmable inputs RTD's, thermocouples type K, J, R, S, N, T, in addition to standard analogue inputs 0-10 V, 4-20 mA & with very simple entry / edit or program and stop / start via keypad or external switch. Supply 24...230VAC/VDC
ATR621 Programme Kiln or Furnace Controller
ATR621
72 x 72 DIN Single loop PID temperature programmer controller or kiln controller, up to 15 programmable cycles of 45 stages. Programmable inputs thermocouple type R, K, S, J PT100, 0-10 V, 4-20 mA selectable outputs include relay, SSR, 4-20 mA & 0-10 V. ModBUS RTU & digital inputs for start/stop of the cycle, memory card and PC configuration, supply 24...230VAC/VDC
ATR421 Programme Furnace / Kiln Controller
ATR421 Kiln Controller
Powerful 96 x 48 DIN Single loop Kiln temperature programmer controller or set-point programmer, up to 15 programmable cycles of 45 stages. Inputs include thermocouple type R, J, S, K, T, N, PT100, 0-10 V, 4-20 mA. Relay, SSR, 0-10 V & 4-20 mA outputs. ModBUS RTU & digital inputs for start/stop of the cycle, memory card and PC configuration, supply 24..230VAC/VDC
DISCONTINUED CONTROLLERS
ATR401 Temperature Controller (Obsolete see ATR444 Below)
ATR401
1/8 DIN 48 x 96 PID controller with up to 5 outputs, user programmable inputs PT100, PT1000, thermocouple type K, J, R, S, N, T, 10K NTC thermistor, 0-10 V, 4-20 mA & with 24V auxilliary power for 2 wire 4-20 mA sensors. User programmable outputs include relay, SSR, 0-10V, 4-20 mA & servo valve drive, memory card & PC configuration via PC software, IP65 bezel, Modbus RTU, supply 24...230VAC/VDC
Pixsys DRR245 DIN rail Mount Controller | Temperature Controller (Replaced by DRR244 - below)
DRR245 DIN Rail Mount Controller (REPLACED BY DRR244 BELOW)
DIN Rail controller, programmable inputs PT100, PT1000, Potentiometer, thermocouples, 10K NTC thermistor, 0-10 V, 4-20 mA with 12V transmitter power for 2 wire 4-20mA devices. Programmable control outputs include 0-10V, 4-20 mA, relay, SSR & servo valve drive. Memory card & PC configuration via labsoftview, Modbus RTU is standard, supply 24...230VAC/VDC
ATR620 Programmable Kiln Pid Controller
ATR620 Programmable Controller
Powerful PID kiln temperature controller, 2 independent control loops & up to 15 programmable cycles of 20 stages. universal programmable inputs thermocouple type R, S, K, J, PT100, 0-10V, 4-20mA & programmable outputs relay / SSR. RS485 ModBUS & digital inputs for start/stop of programme, memory card for easy copying of configuration parameters supply 24/110/230 VAC supply
URE Pottery Kiln Temperature controller
Specification for URE72 Kiln Temperature Controller
Powerful Single loop Kiln temperature controller or set-point programmer, up to 15 programs of up to 15 stages. Inputs include thermocouple type R, S, K, T, N. Simple push button start and advance stage. Program can be edited by front push button or by user friendly software with PC connection. Supplied enclosed with Clipsal 410 4 pin socket, 2 metre cable and thermocouple connector. Supply 83..230VAC
Pixsys ATR226 Temperature Controller ..(Obsolete Replaced by ATR224)
ATR226 PID Controller
Specification ATR226 temperature controller
Low cost 4 Digit PID temperature controller, size 48 x 48mm, programmable inputs thermocouple type K, J, R, S, PT100, PT1000, NTC/PTC thermistor. Programmable outputs SSR/Relay, memory card & configuration by standard mini USB, IP65 bezel, AC or DC supply is standard. Latching relay with digital input or front push button reset, perfect for over-temperature applications, optional DIN rail adaptor
Pixsys ATR227 Temperature Controller ..(REPLACED BY ATR224 BELOW)
ATR227 Process Controller
Specification ATR227 temperature controller
4 Digit PID temperature controller, size 48 x 48 mm, user programmable inputs thermocouples type K, J, R, S, PT100, PT1000, NTC/PTC thermistor, mA, V, mV with 12VDC transmitter power supply. Special algorithm for infra red heater control. Programmable outputs SSR/Relay, memory card & configuration by standard mini USB, IP65 bezel, AC or DC supply is standard. Latching relay with digital input or front push button reset, optional DIN rail adaptor
ATR243 1/16 DIN PID Temperature Controller (Obsolete See ATR244 below)
ATR243 Temperature Controller
Specification for ATR243 Temperature Controller
>1/16 DIN 48 x 48 Process and temperature controller, programmable inputs thermocouple type K, J, R, S,N, T PT100, 0-10 V, 4-20 mA & 10K NTC thermistor with 12V transmitter power supply. User programmable outputs relay, SSR, 0-10V, 4-20mA, servo valve drive, memory card & PC configuration, IP65 bezel, supply 24...230VAC/VDC
Refrigeration Temperature Controllers
ATR131-1B Medium Temperature Refrigeration Controller
ATR131-1B Refrigeration Controller
Medium temperature refrigeration controller, standard 72 x 36 mm DIN, IP65 bezel, single 10A output, memory card, 10K NTC thermistor input & 230VAC supply. Also available with DIN rail mount adaptor.
ATR131-3B Refrigeration Low Temperature Controller
ATR131-3B Refrigeration Controller
Low temperature refrigeration controller with 10K NTC thermistor input & 3 control outputs for defrost, evaporator & compressor fan, memory card, IP65 bezel 230VAC power supply. Also available DIN rail mount.
Temperature Controllers Accessories
PT100 and Thermocouple Sensors
Solid State Relays
AC & DC Solid State Relay (SAP2440DR)
Light Duty Heatsink & Blank Plates (0040050019)
1/4, 1/8 DIN Adaptors & Blank Plates (ARQ1 96-48DIN)
DIN Rail Adaptor (DNRA-72)
Memory Card Suits All Controllers (MEMC)
