ATR444 Temperature Controller

Product Range

Blue Line 1/8 DIN Temperature Controller

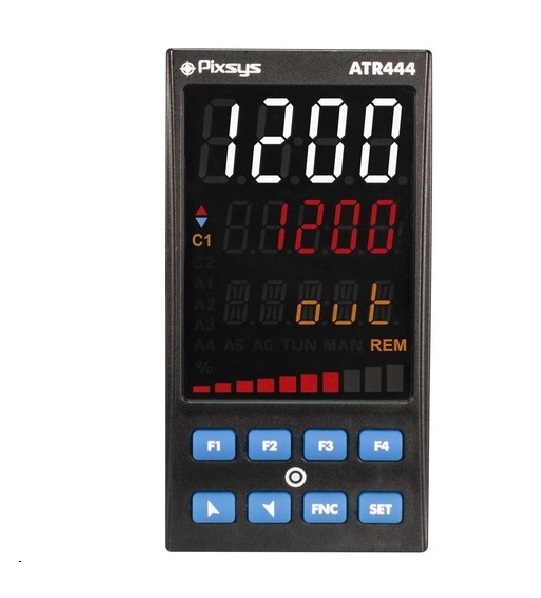

Pixsys ATR444 Temperature Controller

Pixsys ATR444 temperature and process controller sets the highest standards in a discreet single or dual loop 1/8 DIN temperature control technology. It stands out with the bright 3 line display which ensures optimal visibility and increased level of information for the operator with new 24 character scrolling alpha-numeric screen messaging.

Powerful and unique features:

User selectable Outputs :
Choose from; Relay, PNP (fir SSR or PLC inputs), 0-10V, 4-20mA or Servo Valve Drive.

Universal Power Supply:
24-240 VAC/DC no selection required:

Scrolling Help menu:
No manual? No problem! As you click on each parameter, a scrolling description appears in the lower display:

Scrolling customizable messages:
User specific 24 character alpha numeric messages triggered by alarms or digital inputs, entered via the smartphone APP or Labsoftview software:
Contactless Smart Phone Configuration:

Program with Android App or IOS system using the bluetooth adapter

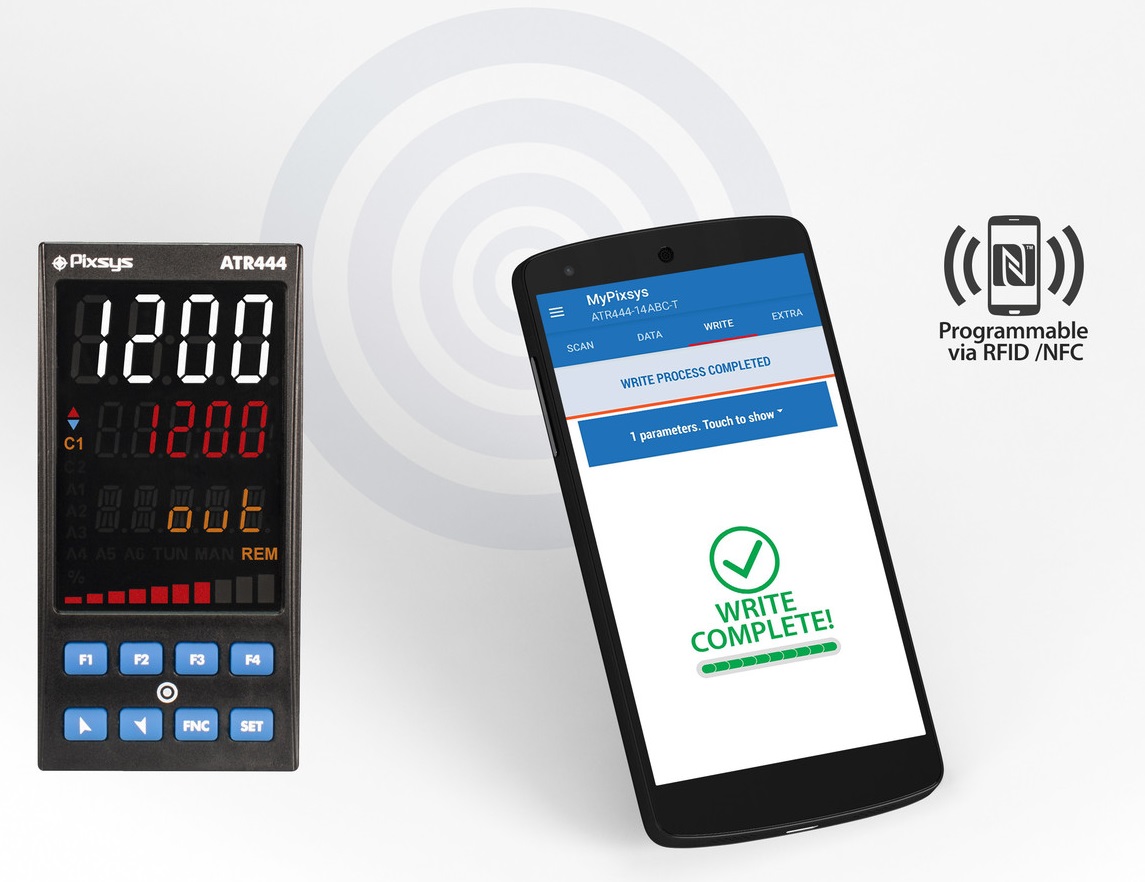

Programming is possible by NFC/RFID technology with dedicated App MyPixsys for Android smartphones and IOS systems. Power is not required for this function, allowing quick set-up/updates on site. Set up files can be saved and shared

Contactless programming of parameters without need for power. Touch back of the phone on bezel of the controller to transfer the set up parameters.
Clone parameters of one controller straight into another one, in seconds.
Need Support; we can set a controller up here send you the file via email/WhatsApp to your phone and you drop it straight into the controller.
Store multiple configurations as file names, for 100% accurate and quick recall of past applications.

Additional Functions also available as standard:
2 Set-point Switch
12 Step Program
2 Programmable Timers in MM.SS or HH.MM stop start from I/O or threshold.
Retransmission of SP or PV if V/mA Not Used For Control
Manual Reset of Relay if Used For Over Temperature Control
Auto/Manual Drive

Different models include dual analogue input and dual analogue output for sophisticated applications such as cascade loops, remote setpoint input & output. So it is possible to achieve two separate heating/cooling PID control loops in the one instrument or to process mathematical functions between two input values. The outputs can be selected as control, an alarm mode or analogue retransmission. Serial communication is available via RS485 with Modbus RTU Slave protocol.

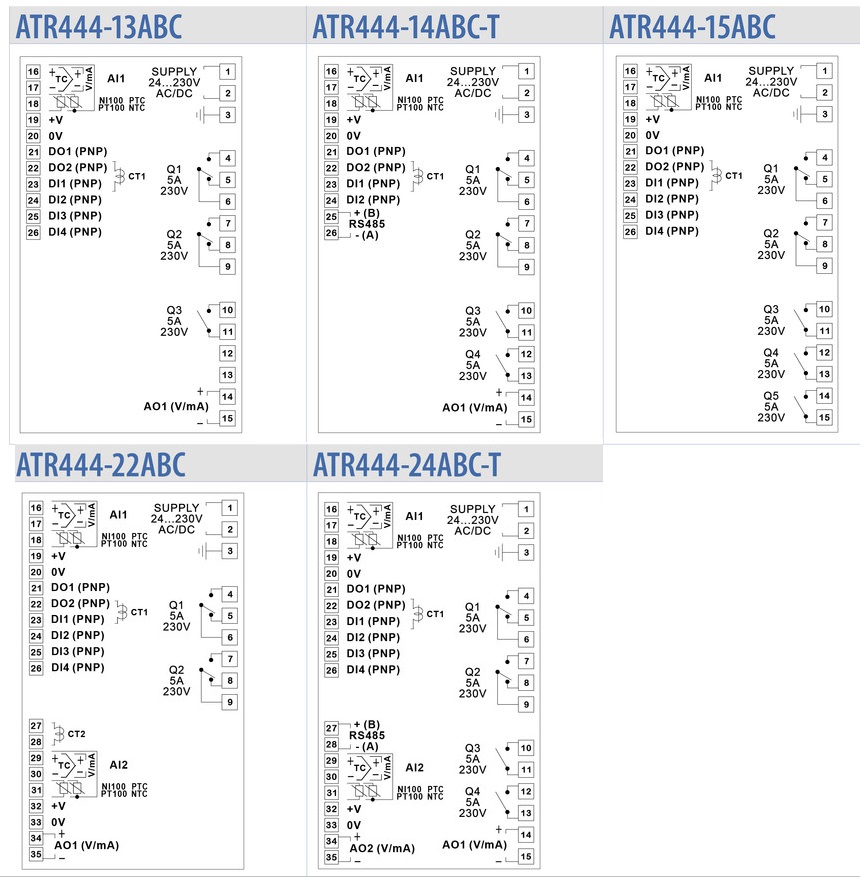

ATR444 Controller Model Selection

Program with Mobile Phone APP

Programming is also possible by standard windows PC using free labsoftview utility & mini USB cable. Power is not required for this function

SPECIFICATION

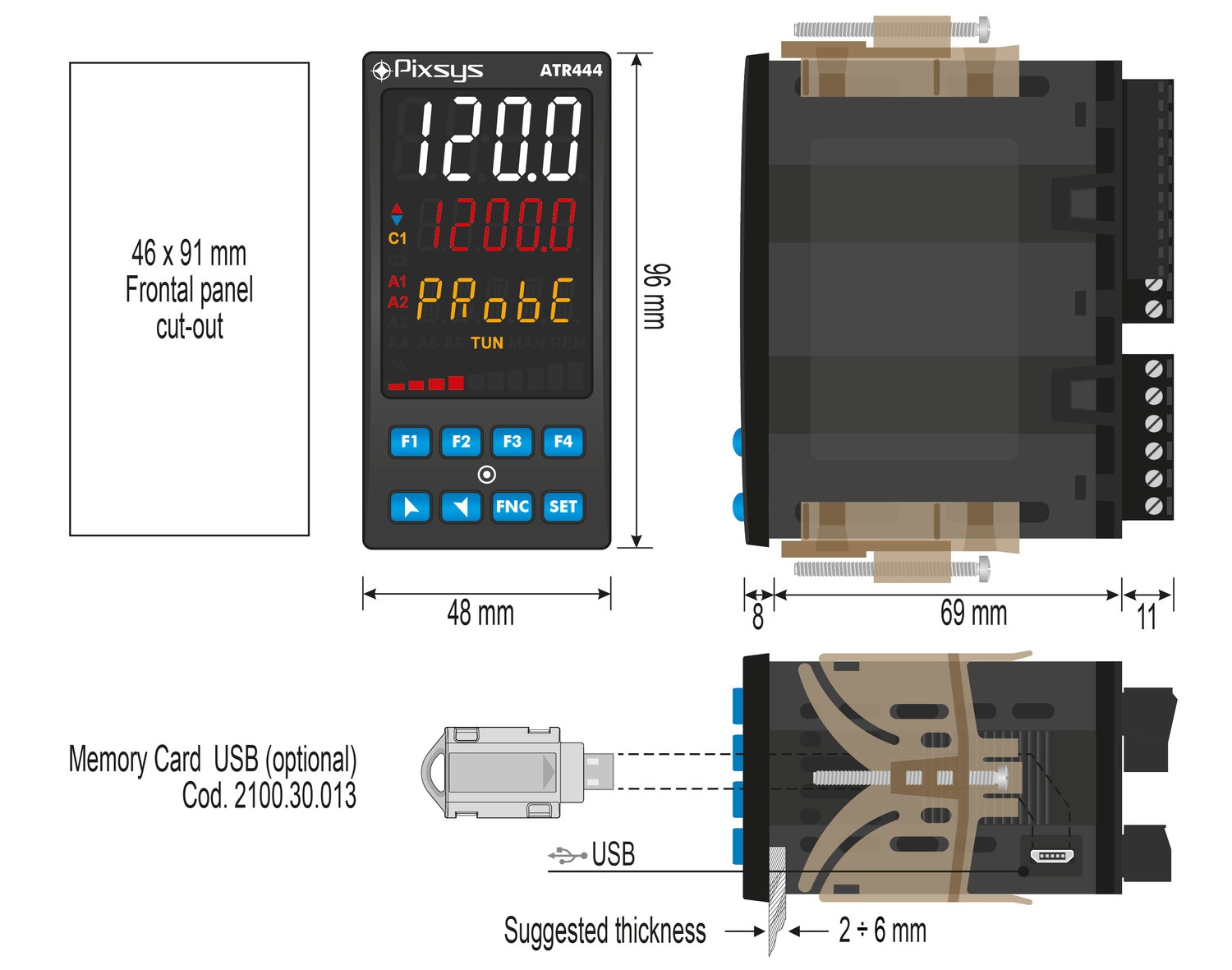

96 x 48 (front panel) x 80 mm

Power supply 24-230 V AC / DC +-15% 50/60 Hz - galvanical isolation 2,5KV

Consumption 8 W

Display 4 digits 0.5" white + 4 digits 0.3" red

Operating conditions Temperature 0-45 degC, humidity 35-95 RH%

Material Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2

Weight Approx. 245 g

Sealing IP65 (front panel) IP20 (box and terminal bloks)

Quick set-up options Memory Card, software LABSOFTVIEW, or EASY-UP, APP / NFC Programming via APP MyPixsys for Android smartphones

Inputs 1 or 2 - Configurable

Res. 16 bit, selectable Programmable up to 2,1 ms (frequency up to 470 Hz)

2/4 digital inputs Setpoint change, Hold, Run, Tuning launch, Start / Stop, Lock configuration

Outputs 2/5 Relay 5 A - 250 V AC resistive change

2/4 PNP 12 / 24 V DC - 30 mA max

1/2 analogue Selection 4-20 mA (40000 points +-0,2% F.S.) or 0-10 V DC (40000 points +- 0,2% F.S.) for command or retransmission PV / SPV

Serial communication RS485 Modbus RTU - Slave (4800-115200 baud code-T)
