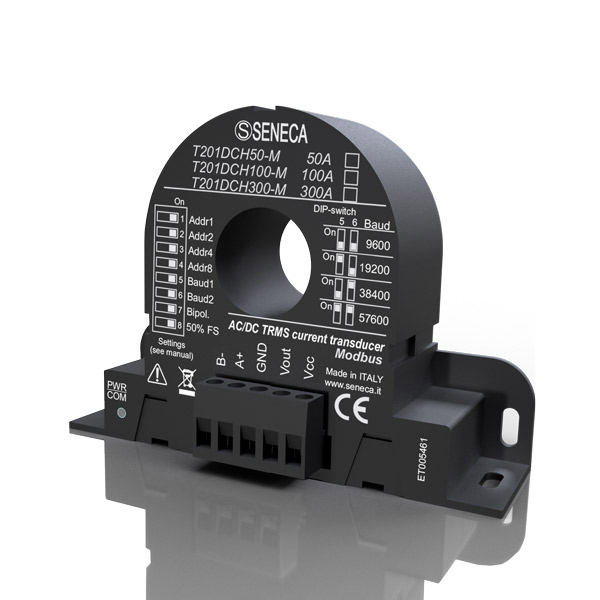

Current transformer or urrent transducer code T201DCH50 xx LP ia an AC / DC TRMS transformer galvanically isolated from the measuring circuit. The device is similar to a standard active current transformer, both in terms of operation and appearance, but is can measure both AC & DC current.
The current transformer / current transducer is powered by 4-20mA output loop, the measuring principle is hall effect and this provides a remarkable 0.5% accuracy. It is available in 3 versions; 50A 100A 300A 0r 600A full scale model MU also offers 1 digital output.
T201DCH50/100/300-M Installation Manual

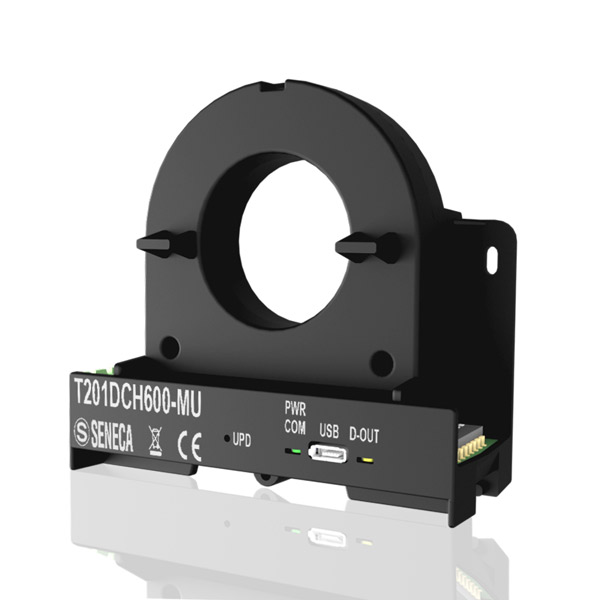

T201DCH600-MU Installation Manual
TECHNICAL DATA
Power supply 11-28VDC
Galvanic isolation 3 KV
A/D Resolution 12 bits 0.5% full scale
Removable terminals
DIN rail mount (vertical/horizontal)

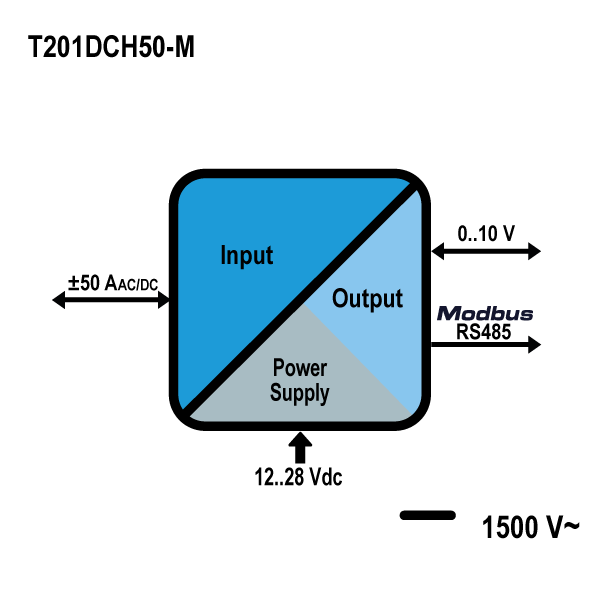

INPUT
Current : 50A / 100A / 300A / 600A TRMS selectable by dipswitch
OUTPUT
0-10V, Modbus RTU RS485 1200 to 115200 BPS Baud
ORDER CODE
T201DCH 50 M .. 25/50A Current Transformer with 0-10V & Modbus RTU
T201DCH 100 M .. 50/100A Current Transformer with 0-10V & Modbus RTU
T201DCH 300 M .. 150/300A Current Transformer with 0-10V & Modbus RTU
T201DCH 600 MU .. 600A Current Transformer with 0-10V & Modbus RTU
Temperature -40..+85°C 10..90% RH
IP20 Protection degree
Response speed 1000 ms
Overload 2KA Impulsive 300 Continuous

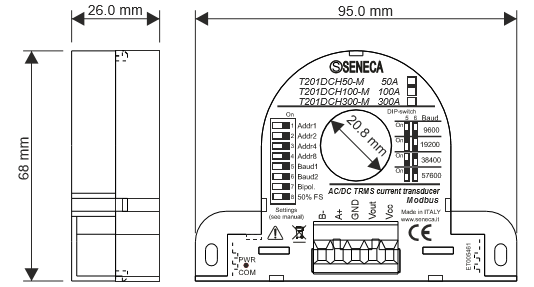

Dimmensions 95 x 68 x 26mm
Weight 72g
Approvals CE, EN 61000-6-4, EN 64000-6-2 EN 61010-1
