T201DCH xx LP Current Transducer
Current Transformer with 4-20mA

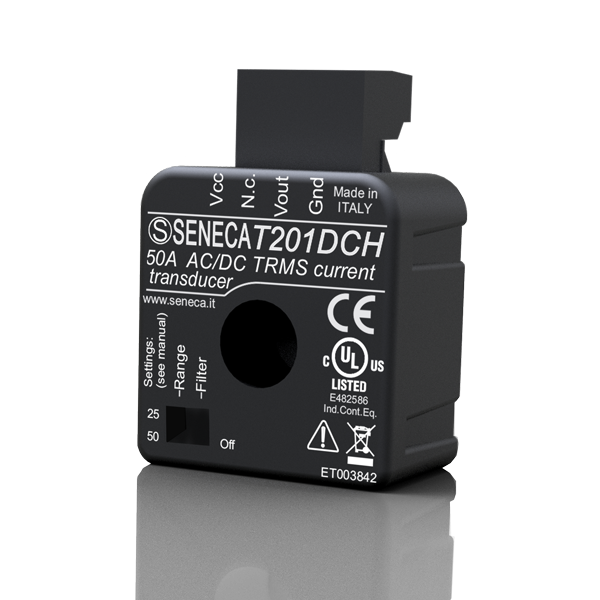

Current transformer or urrent transducer code T201DCH50 xx LP ia an AC / DC TRMS transformer galvanically isolated from the measuring circuit. The device is similar to a standard active current transformer, both in terms of operation and appearance, but is can measure both AC & DC current.

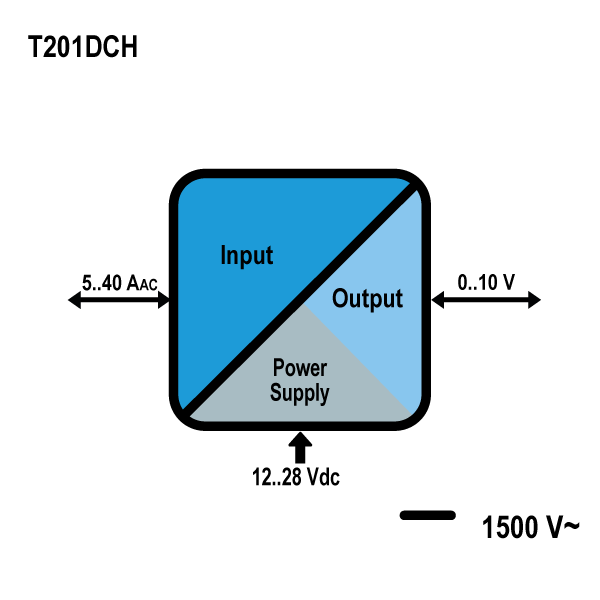

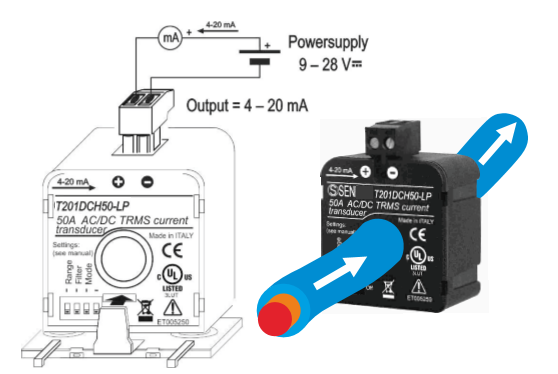

The current transformer / current transducer is powered by 4-20mA output loop, the measuring principle is hall effect and this provides a remarkable 0.5% accuracy. It is available in 3 versions; 50A (25A) 100A (50A) or 300A (150A) full scale selectable by one dipswitch.
TECHNICAL DATA
Power supply 9-28VDC
Loop powered 4-20mA 2 wire
Galvanic isolation 3 KV
A/D Resolution 12 bits 0.5% full scale
Removable terminals
DIN rail mount (vertical/horizontal)
INPUT
Current : 25A / 50A / 100A / 150A / 300A TRMS selectable by dipswitch
OUTPUT
4-20mA 12 bit
ORDER CODE
T201DCH 50 LP 25A / 50A Current Transformer with 4-20mA
T201DCH 100 LP 50A / 100A Current Transformer with 4-20mA
T201DCH 300 LP 150A / 300A Current Transformer with 4-20mA
Temperature -40..+85°C 10..90% RH
IP20 Protection degree
Response speed 1000 ms
Overload 2KA Impulsive 300 Continuous
Dimmensions 46 x 63 x 26mm
Weight 72g
Approvals CE, EN 61000-6-4, EN 64000-6-2
EN 61010-1
