Pixsys Current Transformer Modbus RTU
Product Range
See Also:
2000.35.014 Modbus Current Transducer
Current Transducer RS485

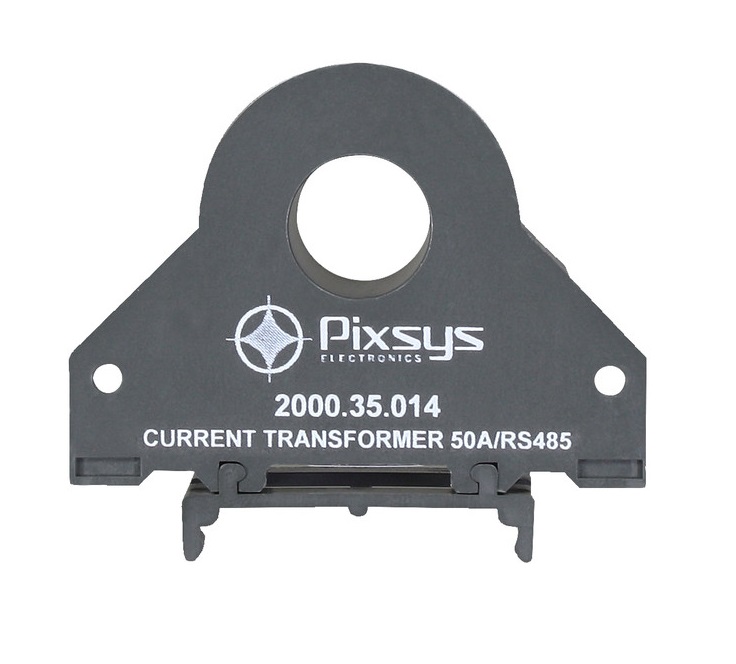

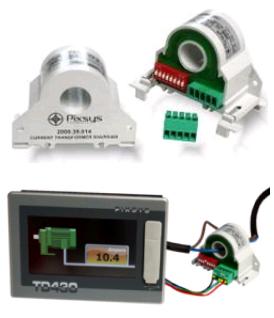

Current transformer or current transducer code 2000.35.014 is an AC / DC TRMS current transformer with galvanic isolation from the measuring circuit. The device in terms of both appearance & operation is similar to standard current transformer or CT, but is can also measure AC or DC current & provide both a linear 0-10V DC output and a Modbus RTU serial signal via RS485 port.
The current transformer / current transducer is powered by 11-35VDC, the measuring principle is hall effect and this provides a remarkable 0.5% accuracy. It has 50A or 25A full scale selectable by dipswitch
TECHNICAL DATA
Power supply 11-35VDC
Galvanic isolation 3 KV
A/D Resolution 12 bits 0.5% full scale
Removable terminals
Baudrate up to 115200 BPS
Address 1..250
Parity selectable even or odd 8,x,1
INPUT
Current : 25A / 50A TRMS selectable
by dipswitch, bipolar +/-50 or +/-25 A DC
OUTPUT
RS485 Modbus RTU and 0-10V 12 bit
ORDER CODE
2000-35-014 Current Transformer with Modbus
Temperature -40..+85°C 10..90% RH
IP20 Protection degree
Response speed 1000 ms
Overload 2KA Impulsive 300 Continuous
Dimmensions 46 x 63 x 26mm
Weight 72g
Approvals CE, EN 61000-6-4, EN 64000-6-2
EN 61010-1
