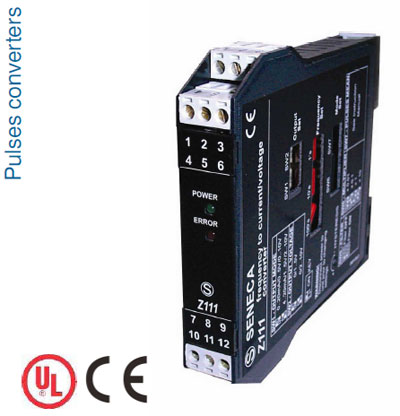

Z-LINE Z-111 Frequency DC Current / Voltage converter
|
 |
| INPUT: Pulses: mechanical contact, reed , npn with 2 and 3 wires , pnp with 3 wires and 24V DC power supply, Namur, photoelectric, ?HALL? sensor, and variable reluctance. Frequency from 1 Hz to 9.99 KHz |
| OUTPUT:current 0..20, 4 . 20 mA voltage 0..5, 1..5, 0..10, 2..10 Vdc |
| ACCURACY: 0,3% |
| Galvanic isolation @ 3-way |
| Screw-fit terminals removable |
| Din rail mounting |
| Power supply: 19..40 Vdc, 19..28 Vac |
|
|
|
| TECHNICAL SPECIFICATIONS |
Z111 ? Frequency DC Current Voltage converter
|
|
|
GENERAL FEATURES
|
| Power supply |
19÷40Vdc, 19÷28 Vac |
Design |
Terminal housing for mounting on 35 mm DIN 46277 |
| Channels |
N.1 |
DIP Switch |
- Inputs signal setup
- Output signal setup |
| Accuracy |
0,3% of end scale |
Enclosure |
"V0" self-extinguishing glass filled nylon case |
| Status indicators |
Output // supply against impulse overvoltage 400W /ms. |
Dimensions |
17,5 x 100 x 112 mm (w x h x d) |
| Galvanic Isolation |
Power supply // input // output at 1500 Vac, digital |
Weight |
140 g |
| Hot swapping |
Yes |
Operating temperature |
0..50 °C |
| Resolution |
11 bit |
Connections |
Plug-in screw clamp terminal blocks, wires up to 2.5 mm2 |
| Power consumption |
2,5 W |
IP Protection |
IP 20 |
| Max frequency |
9,99 KHz |
Standards |
EN50081-2, EN50082-2, EN61010-1 |
| Protections |
Surges: 400W/ms. Loop supply short-circuit protected |
Approval |
CE |
| Protection for inputs |
Except current: 60V continuous; current 200mA continuous. |
Standards |
EN50081-2
EN50082-2
EN61010-1 |
| Humidity |
30..90% a +40°C (not condensing) |
Approvals |
CE, UL-CSA |
|
|

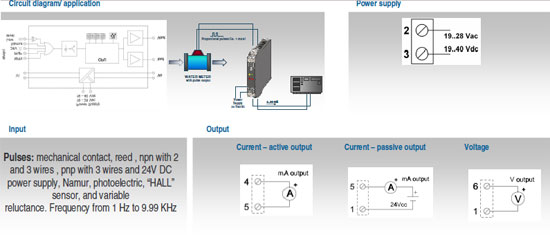

INPUT
|
|
pulses: mechanical contact, reed , npn with 2 and 3 wires , pnp with 3 wires and 24V DC power supply, Namur, photoelectric, ?HALL? sensor, and variable reluctance. Frequency from 0,1 Hz to 9.99 KHz
|
|
OUTPUT
|
|
Current: 0..20 mA, 4..20 mA, 20..0 mA e 20..4 mA Higher load resistance: 600 Ohm
Voltage: 0..5 Vdc, 1..5 Vdc, 0..10 Vdc and 10..0 Vdc Lower load resistance: 2,5 KOhm
|
|
|
DIMENSIONS AND INSTALLATION
|
|
|
|
|
|
|
|
