Z113-1 Trip Amplifier
24VDC powered Signal trip amplifier with dual relay output and programmable input.
Z113-1 is a DIN rail mounted trip amplifier with two normally open relay outputs which share the same common, which can accept multiple inputs including (0)4-20mA 0-10V, 0-1V, (0)1-5V, thermocouple, RTD sensors and Potentiometers. Programmable with the free EASY programming software and standard micro USB cable. Power supply is 10 to 40VDC. 18 to 28VAC with 18VDC transmitter power supply for 2 wire 4-20mA sensors.

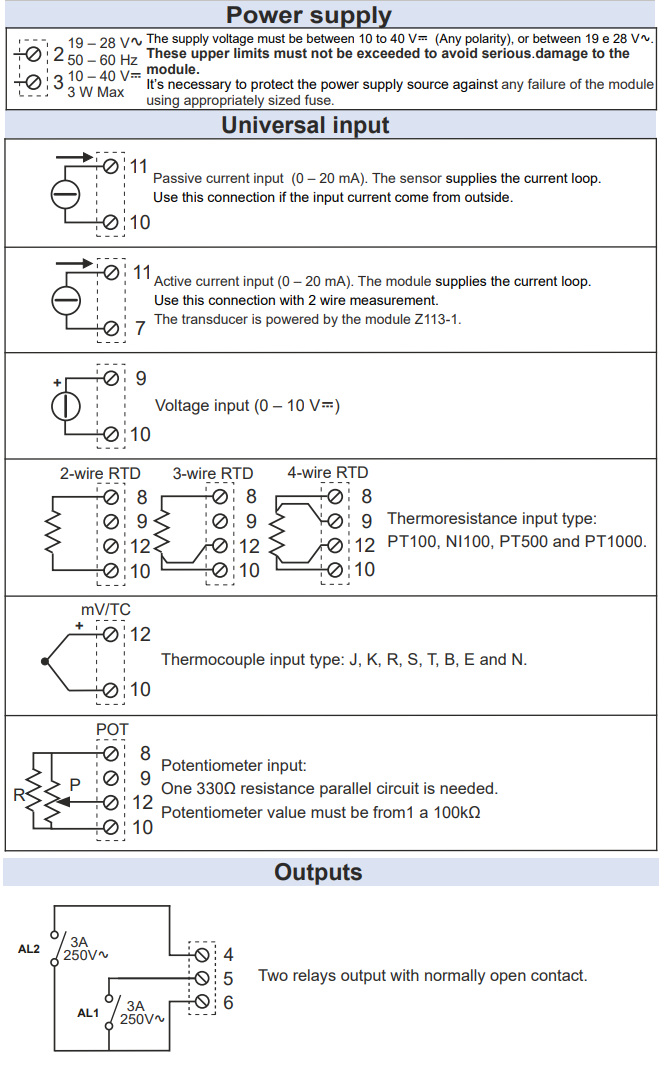

Z113-1 Trip Amplifier Connections

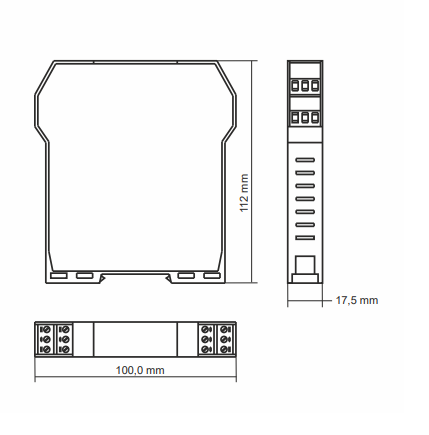

Z113-1 Trip Amplifier Dimmensions
Z113-1 Specification
Power supply 10..40Vdc/18..28Vac
Power consumption typical 2.5 W Max 3 W
Transducer Power Supply 17VDC 25mA max
Accuracy 0,1%
Response time 6 ms
Input Filter 0-19 Seconds Programmble
Status Indicators Power supply, error
Mounting 35 mm DIN rail guide
Protection Degree IP20
Operating Temperature -10..+65 DegC
Dimension (W x H x D) 17.5 x 100 x 112 mm
INPUT:
2,3 and 4 wire PT100, NI100, PT500 and PT1000
Thermocouple input type: J, K, R, S, T, B, E and N.
One 330ohm resistance parallel circuit is needed.
Potentiometer value from 1 a 100kohm
Channel Numbers 1
Voltage
Range: 0..10Vdc
Impedance: 120 kohm
Current
Range: 4..20 / 0..20 / mA Active or Passive
Impedance: 50 ohm
OUTPUT:
Relay Numbers 2 SPST
Voltage
Range: 250VAC CAT II
Current
Range: 3 A @ 250VAC; 3 A @ 30VDC
Z113-1 Specification
Power supply 10..40Vdc/18..28VacPower consumption typical 2.5 W Max 3 W
Transducer Power Supply 17VDC 25mA max
Accuracy 0,1%
Response time 6 ms
Input Filter 0-19 Seconds Programmble
Status Indicators Power supply, error
Mounting 35 mm DIN rail guide
Protection Degree IP20
Operating Temperature -10..+65 DegC
Dimension (W x H x D) 17.5 x 100 x 112 mm
INPUT:
2,3 and 4 wire PT100, NI100, PT500 and PT1000
Thermocouple input type: J, K, R, S, T, B, E and N.
One 330ohm resistance parallel circuit is needed. Potentiometer value from 1 a 100kohm
Channel Numbers 1
Voltage Range: 0..10Vdc
Impedance: 120 kohm
Current Range: 4..20 / 0..20 / mA Active or Passive
Impedance: 50 ohm
OUTPUT:
Relay Numbers 2 SPST Voltage Range: 250VAC CAT II
Current Range: 3 A @ 250VAC; 3 A @ 30VDC
