RTD-FV2 PT100 Transmitter
Transmitter to convert RTD to 0-10V, 4-20mA or Modbus
RTD-FV2 is a flexible dual channel DIN rail mounted temperature transmitter that the user can program to convert PT100 into a active 4-20mA, 0-10VDC signal or Modbus RTU RS485 serial communications. It has a backlit LCD display of both temperature channels, is powered from a 12-24VDC power supply, baud rate & address are configurable via the key pad.

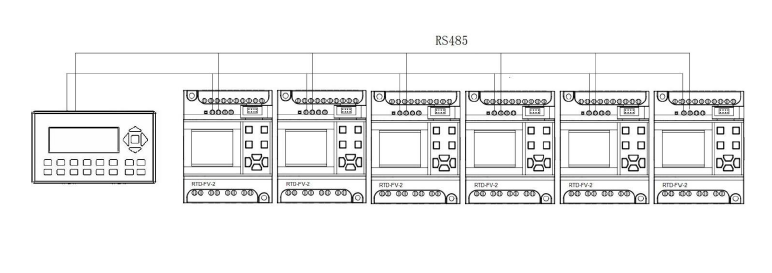

Typical PT100 to Modbus Application
Display multi zone temperature application using the RTD-FV2 PT100 to Modbus Transmitter. SH300 HMI is connected to several units each containing different address.

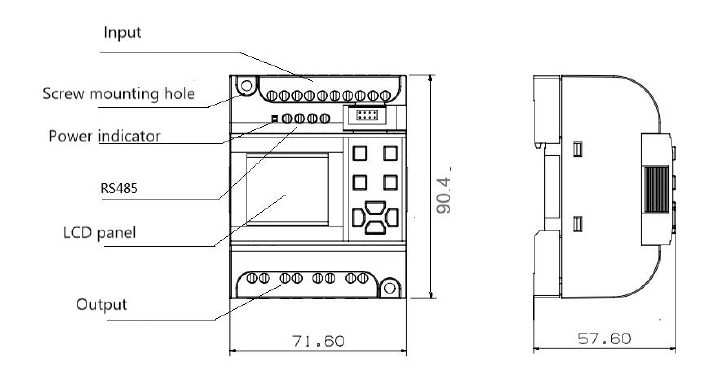

RTS-FV2 PT100 Dimmensions
PT100-FV2 Temperature Converter Specification
Input Power DC 12-24VRated Voltage 85 to 110% 5W
Input Temperature sensors 2 x PT100
Sample period 200 mS
Full Range -200 to 850 degC
Display Method LCD Display with Backlight
Accuracy +/- 0.2%
Output Type Current 4-20mA 2 Channels, Voltage 2-10V 2 Channels
Communication Modbus RTU slave protocol 9600 to 115,000 BPS baud rate
Vibration 10-55 Hz 10M/S2 3 Axis 10 min
Operating temperature 0-50 DEGC
Operating Humidity 35-85% RH Non Condensing
Storage temperature -20 to 65 DegC
