67DDT0 Digital Time Switch

Precise time programming for Daily/Weekly/Pulse switching

25 ON/OFF programs

Weekend Exclusion (FRI SAT or SAT SUN) and Weekly OFF programming

LED Indication of Relay status

12/24 h display formats

6 Years Battery reserve

Simple Reset & Manual override

Settable DST & Keypad Lock Feature

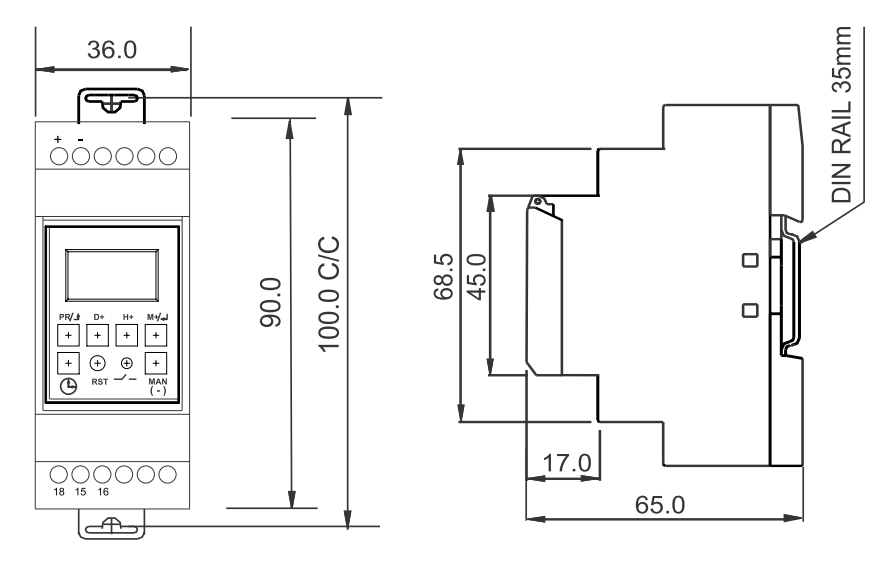

GIC-67DDT0-24-Hour-Time-Switch-Dimmensions

Ordering Information

67DDT0 110 - 240 VAC, Digital Time Switch - Crono, 1 C/O

67DDT0 24 VDC, Digital Time Switch - Crono, 1 C/O

69HDT0 12 VDC, Digital Time Switch - Crono, 1 C/O

67DDT9 110 - 240 VAC, Digital Time Switch - Pulse, 1 C/O

6GHDT9 24 VDC, Digital Time Switch - Pulse, 1 C/O

69HDT9 12 VDC, Digital Time Switch - Pulse, 1 C/O

Specification

Supply Voltage 110 - 240 VAC 50/60 Hz

Supply Variation -20 % to +10%

67DDT0 Number of Programs 25 ON/OFF Programs

67DDT9 Number of Programs 16 Pulse Programs

Display three Lines Text LCD

Power Consumed (Max.)6 VA

DST Programmable

Time Clock Accuracy +/- 2 s/day max. over the Operating Temperature range

Power Reserve from Factory 6 Years

Contact Rating 16A (For 'NO') & 5A (For 'NC') @ 240 VAC / 24 VDC (Resistive), Inductive (cos = 0.6):- 6 A @ 250 VAC

Relay Output 1 C/O

Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3/1.5 A

Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.11 A

Humidity (Non Condensing) 95% (Rh)

Storage Temperature -10 DegC to + 60 DegC

Operating Temperature -10 DegC to + 55 DegC

Enclosure Flame Retardant UL 4-V0 n 9

Dimension (W x H x D) (in mm) 36 X 90 X 65

Weight (unpacked) Approx. 110 g

Mounting Base / DIN rail

Applications

Ideal for Lighting applications like street lighting, Advertising Displays, Glowsigns. Also can be used for Air conditioners / Coolers, Geysers, conveyors, pumps etc. Ideal for Siren, Bell applications
