APM-MAX Large Digital Panel Meter for Process Signals or Power
APM-MAX-M23

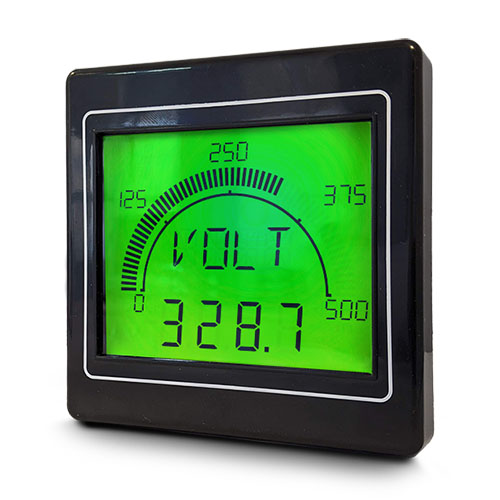

The Trumeter APM-MAX-23 Process digital panel meter is a large digit display, multi-colour RGB back-lit LCD panel mount meter for 4-20mA, 0-10V, and current shunt inputs with Ethernet and RS485 for Modbus TCP Modbus RTU. An innovative, easy to set up, programmable panel meter providing highly visual indication of your critical parameters with interface to external control systems via communications. The APM-MAX-M23 has been specifically designed for engineers requiring a more effective way of monitoring and displaying process data. The Trumeter APM series digital displays are revolutionising the future of panel meter
APM-MAX-M23: for low voltage applications; configurable as a process meter (4-20mA, 0-10V) or to be used in conjunction with a shunt.
APM-MAX-M21: for high voltage applications; configurable as an ammeter, volt meter, frequency meter or power monitor (Watts, VA & Power Factor)
Designed for a wide range of monitoring applications, the APM-MAX combines the instant visual representation
of an analog meter with the speed and accuracy of a digital meter for instant recognition and precision measurement.

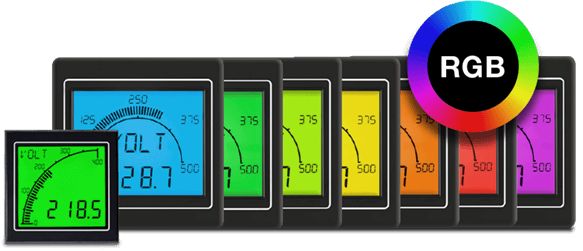

The large 81.5mm x 66mm display features a two-line display, programmable scale, alarm set-points and colour changing, full color RGB backlight for instant alerts.
Manuals
APM-MAX digital panel meters are suitable for many applications including:
building management – generators and perfomance monitoring – marine applications – process monitoring – aviation industry applications

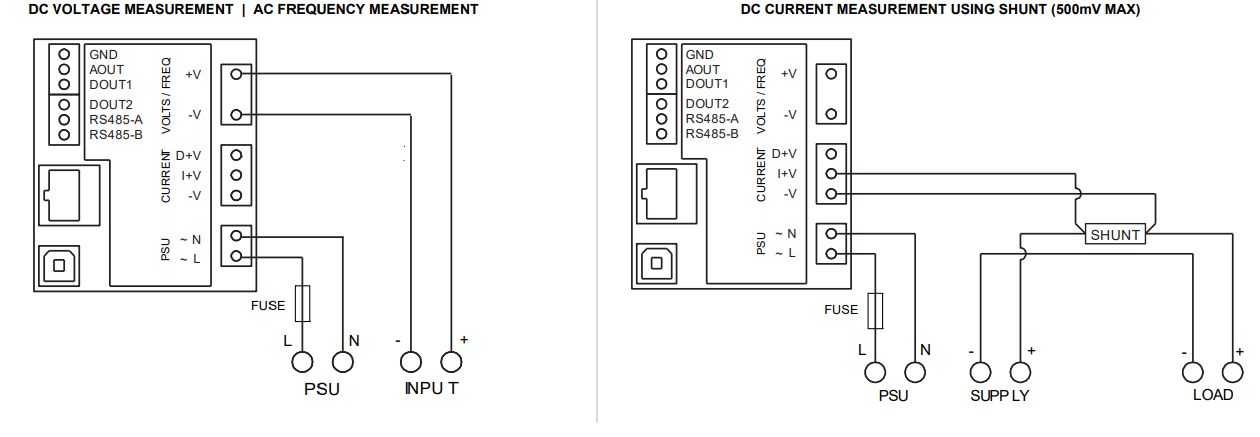

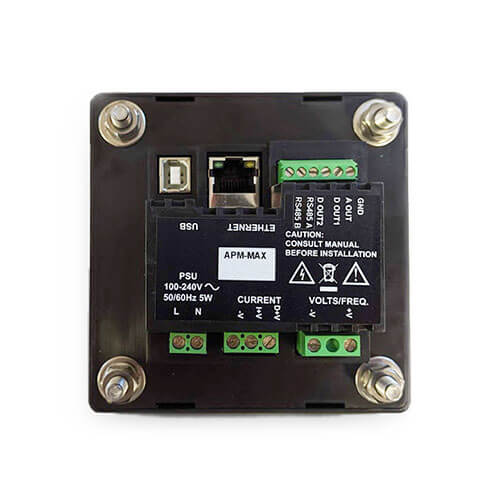

Connections
Software for TRUAPM Panel Meter

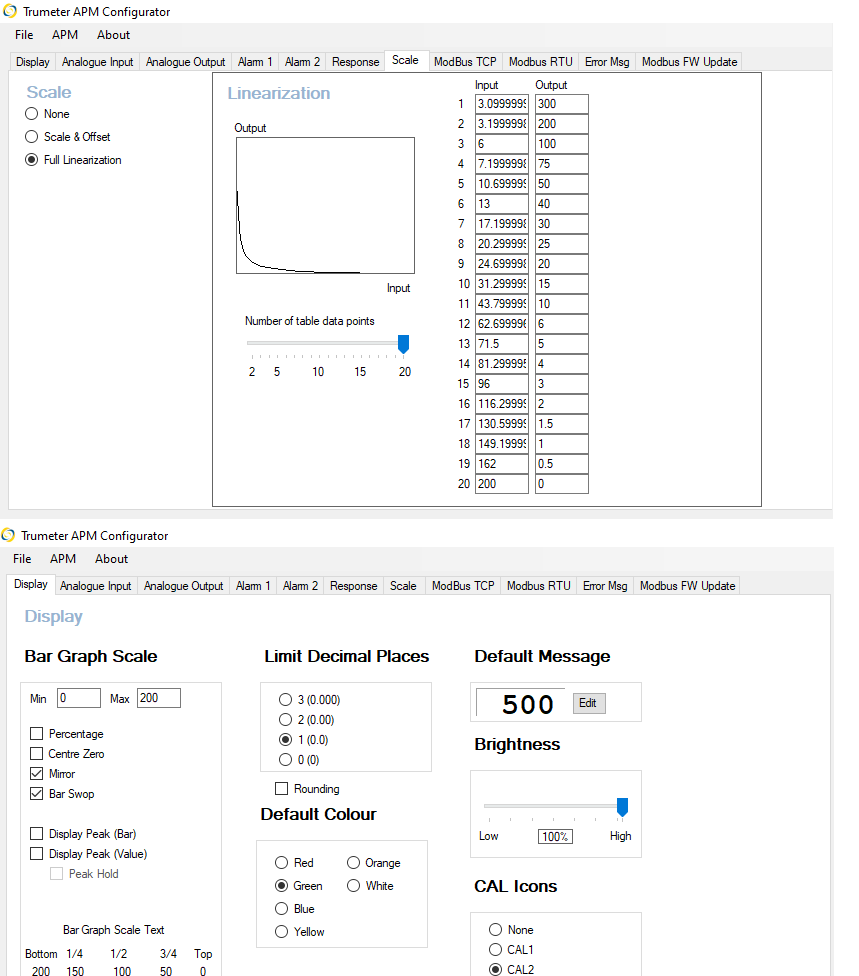

APM Configurator software is a free intuitive Windows based software utility used for configuration of the APM-MAX meter. Upload or download to the device, scaling, creation of up to 20 point lineartization curves, alarm thresholds, colour changes, outputs and annunciators.

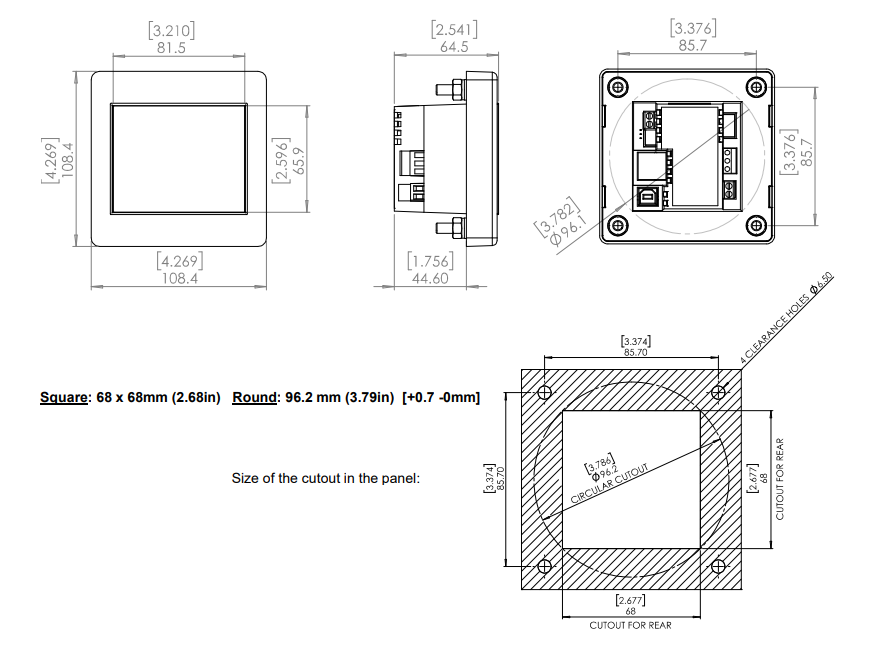

Physical Dimmension APM-MAX
Specification TRUAPM
INPUTS
VOLTS
APM-MAX-21 0 - 600VAC/DC APM-MAX-23 0 - 10VDC
CURRENT
APM-MAX-21 0 - 5A AC APM-MAX-23 0 - 50mA VDC
CURRENT with Shunt
APM-MAX-21 0 - 500mV DC APM-MAX-23 0 - 500mV DC
FREQUENCY
APM-Max-21 0 - 400Hz APM-Max-23 0 - 400Hz
APM-Max-21 Power Measurement Watts, VA & Power Factor
POWER SUPPLY
Low Voltage (DC) 12-24V DC (50-60Hz AC)
Accuracy
DC & Frequency 0.1% AC 0.5%
Display modes Peak or RMS
ENVIRONMENTAL
Temperature - operating -10 to +60 degC
Temperature - storage -40 to +70 degC
IP rating (from the front) IP65
DISPLAY
Number of digits 4
Digit height 14.5mm
Digit height of annunciator 6.8mm
Number of message characters 4
Backlight colours Red, Green, White
LCD display Positive or Negative
COMMUNICATIONS
RS485 Modbus RTU and Ethernet Modbus TCP/IP
OPTIONAL OUTPUTS
Max voltage 34V 500mA
Analogue 4-20mA, 0-10VDC
Analogue output 4-20mA
CERTIFICATION UL and cUL, CE
