APM Digital Current Shunt Panel Meter

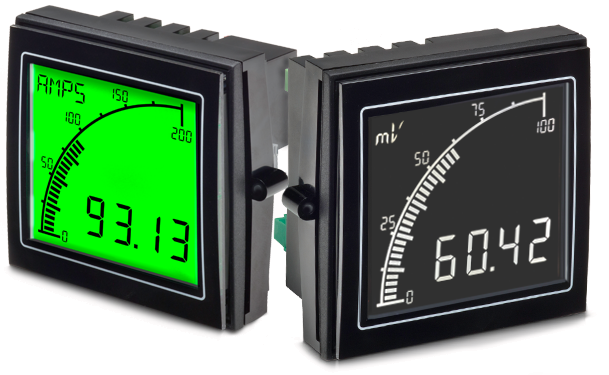

APM-Shunt-APO Programmable Panel Meter for DC Current
The Trumeter APM-Shunt-APO is easy to set up, highly visual digital panel meter for measurement of amps used in DC current applications. it requires a 12 to 24V DC power supply and accepts a programmable input of 0-1000 mV for current shunts, the most standard options being 50 mV, 75, mV & 100 mV shunts. It Provides a high level of accuracy and an immediate visual display of your process measurement with with the 4 digit numeric display and the 90 degree digital moving bar-graph. The Trumeter APM-SHUNT-APO panel meter is an economical alternative to the traditional moving coil style analogue meter and often expensive, standard 96 DIN digital panel meter.
The APM-SHUNT-APO digital panel meter has an input range 0-1000 mV and an accuracy of 0.5%.
APM digital current shunt panel meters are suitable for many applications including:
–load banks and power perfomance monitoring – industrial applications – commercial installations – aviation, marine and automotive industry
