APM Digital Volt Frequency Amp Meter 100-240VAC Supply
APM-M2-APO Programmable Input Meter

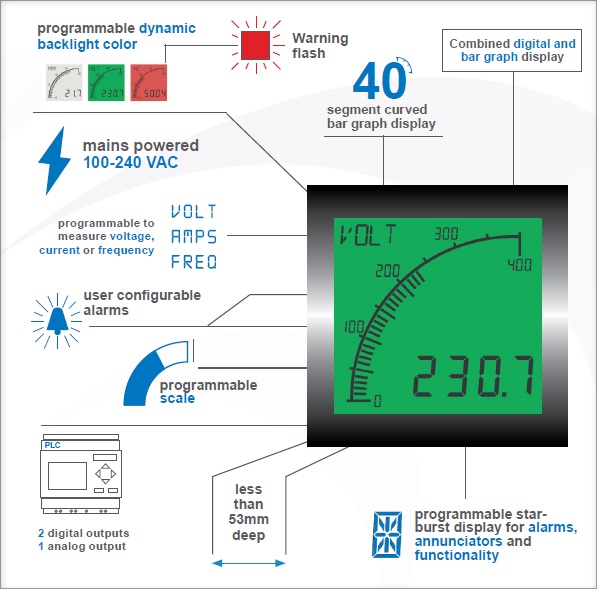

The Trumeter APM-M2-APO Multi-function programmable panel meter is the most visual, simple to use, programmable digital panel meter. it is a mains powered user programmable panel meter which accepts AC & DC frequency, voltage or current inputs. It Provides high levels of accuracy and an immediate visual indication of your parameters with with the numeric display and the 90 degree bar graph. The Trumeter APM M2 is an economical alternative to the traditional moving coil analogue meter and often expensive, digital panel meter.
The APM-M2 digital panel meter for Volts, Amps & Frequency has an input range of 0-600 Volts AC/DC RMS, 0-5 Amps & 2-400Hz respectively and an impressive accuracy of 0.1%.
APM digital panel meters are suitable for many applications including:
– mains applications – generators and power perfomance monitoring – industrial applications – process monitoring – aviation industry applications
APM M2 Voltmeter Ammeter Software
Physical Dimmension M2 Voltmeter Ammeter
Specification APM-M2 Voltmeter Ammeter
Max Volt 0 - 600VAC/DC RMSFrequency range 2 - 400Hz
Current 5 Amps AC/DC
Accuracy 0.1%
ENVIRONMENTAL
Temperature - operating -10 to +60 degC
Temperature - storage -40 to +70 degC
IP rating (from the front) IP65
POWER SUPPLY
Nominal Input 100-240VAC
DISPLAY
Number of digits 4
Digit height 12mm [0.47"]
Number of message characters 4
Backlight colours Red, Green, White
LCD display Positive or Negative
OUTPUTS
Max voltage 24V
Max current 500mA
Analogue output 4-20mA
CERTIFICATION UL and cUL, CE, RCM Approval
