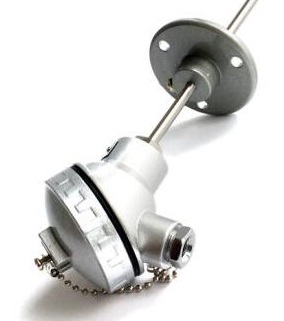

Type K Thermocouple with Aluminium Head
CT200012X K Thermocouple Sensor
Low cost general purpose K Thermocouple temperature sensor max 800 DegC with 6mm stainless steel tube under aluminium IP65 terminal head. Mineral insulation.

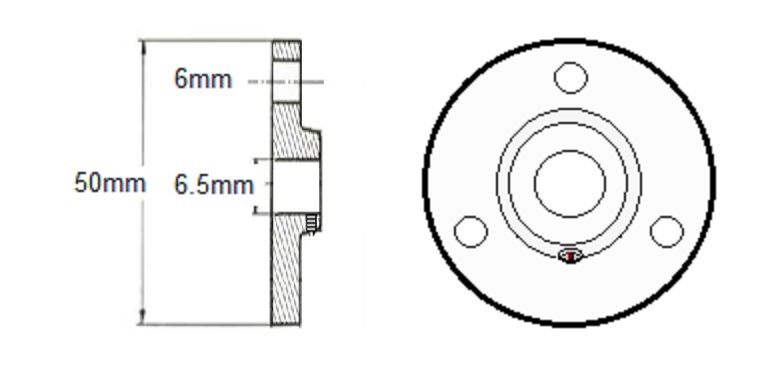

CT2000121 300mm total length below head including fitting CT2000122 400mm total length below head including fitting CT2000121-T 300mm total length below head with 4-20mA output CT2000122-T 400mm total length below head with 4-20mA outputCT2000FN removable Mounting Flange

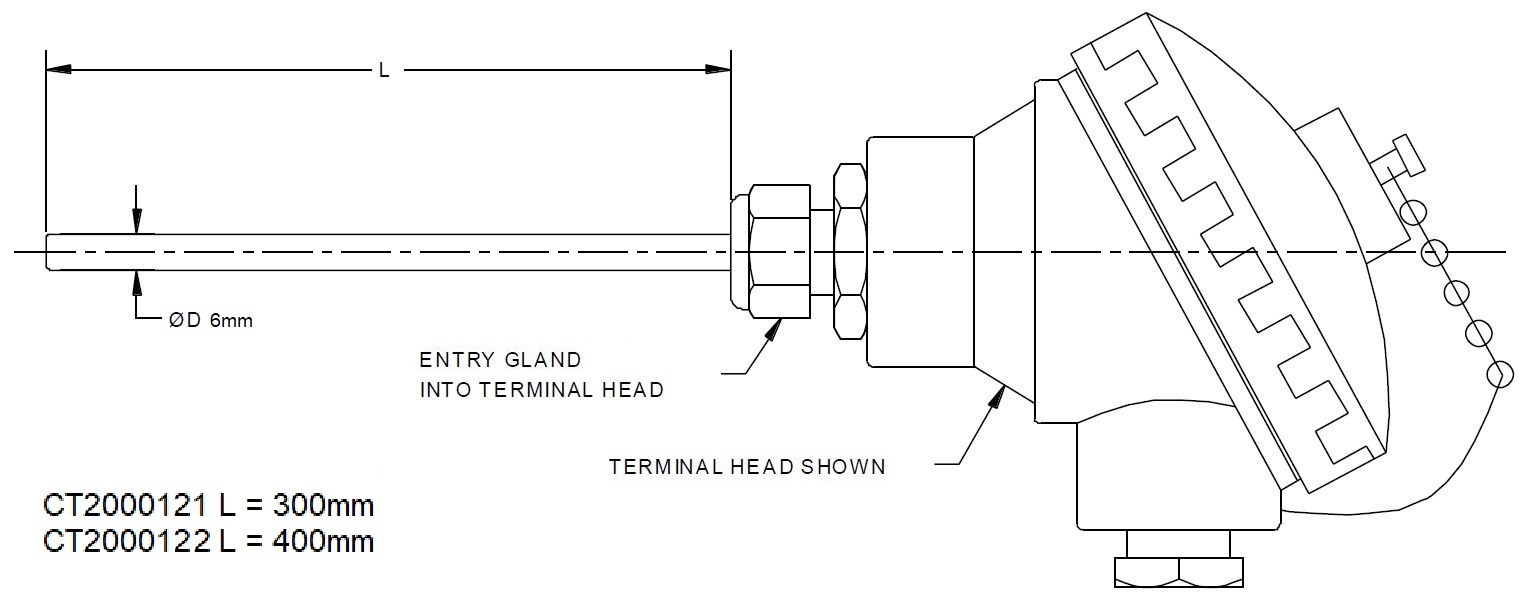

CT20001XX K Thermocouple Sensor Dimmensions
2000.35.015 Isolated Universal Thermocouple/PT100 Transmitter
Transmitter 2000.035.015 isolated universal temperature transmitter. Smartphone configurable via Android app or RFID PC programmer. Thermocouple or 2,3 or 4 wire PT100 input.
Free Smartphone App for Transmitter Programming
Android App for smartphones with NFC for fast programming of in head transmitters. Free from Google Play search Pixsys
