Low Cost 5 Digit Panel Meter
N25 Panel Meter
Destined for measurement of d.c. voltage or d.c. current,
temperature through Pt100 resistance thermometers,
J, K thermocouples, a.c. voltage and a.c. current.
5 LED digit display with 15 mm digit hieght.
Parameters programmable by PD14 programmer:
precision of displayed results (decimal point),
measurement averaging time,
recounting of indications (individual characteristi c),
automatic or manual compensation: cold juncti on
temperature for measurement with thermocouples
or wire resistance for measurement with Pt100 (N25T).
N24/25 Panel Meter User Manual
Applications
Labsoftview Configuration Software

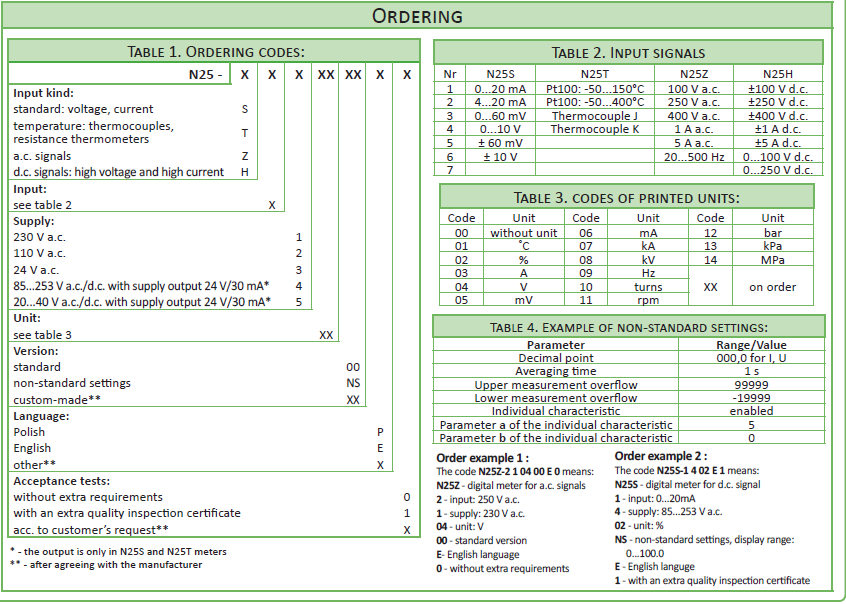

SPECIFICATION
Weight < 0.25 kg
Overall dimensions 96 x 48 x 64 mm (with terminals)
panel cut-out: 92 +0.6 x 45+0.6 mm
Protection grade (acc. to EN 60529) ensured by the housing: IP65 from the terminal side: IP 20
Display 4-digit LED display, 15 mm high, red colour indication range: -1999...9999
Supply voltage
230V ± 10% a.c. (45...65 Hz); 110 V ± 10% a.c. (45-65 Hz)
24V ± 10% a.c. (45...65 Hz);
85-253 V a.c. (40...400 Hz) or d.c.; 20-40 V a.c. (40-400 Hz) or d.c.
input power consumption: 6 VA
Temperature ambient: -10...23...55DegC storage: -25 to 85DegC
Relative humidity <=95% condensation inadmissible
Averaging time >= 0.5 s 1 second default set
Electromagnetic
compatibility
noise emissions acc. to EN 61000-6-4
noise immunity acc. to EN 61000-6-2
Isolation between circuits basic
Installation category III (for the 400 V option - category II)
Maximal phase-to-earth operating
voltage
for supply circuits: 300 V, for measuring circuits: 600 V - cat.II
for other circuits: 50 V
