Modular PLC with Modbus - CanOpen
PL500 / PLE500 PLC
PLC series PL500/PLE500 is based on a modular and flexible concept. CPU PL500 is the control unit and connectivity node for the PLC, operating on a ARM CORTEX A8 -1 GHz microprocessor and featuring extensive range of serial ports and protocols: RS485, RS232 (Modbus RTU), Ethernet (Modbus TCP/IP), CanOpen.

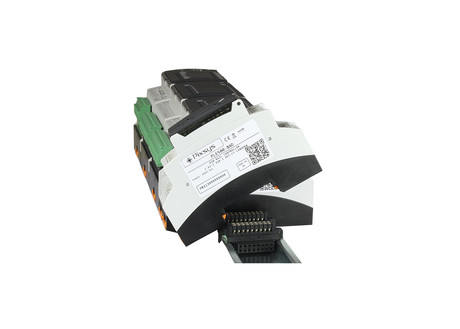

Multiple variations of analogue & digital I/O are available on PLE500 expansion modules. Communication among CPU and I/O modules is via a real-time internal Bus on DIN-rail.
Flagship of Pixsys PLC range are the PID modules with programmable analogue input which include direct Ohm, mV, thermocouple and RTD, currently available as single loop with multiple loop arriving soon.
The Development environment LogicLab, compliant with IEC 61131 standards, is now the same for this PLC series in addition to the HMI and Panel PC, thus ensuring scalability of applications & optimal sinergy among different model numbers.
Connectivity with third-party hardware thanks to wide list of drivers is already included.
The extensive library of Pixsys devices allows their straightforward and easy integration into applications

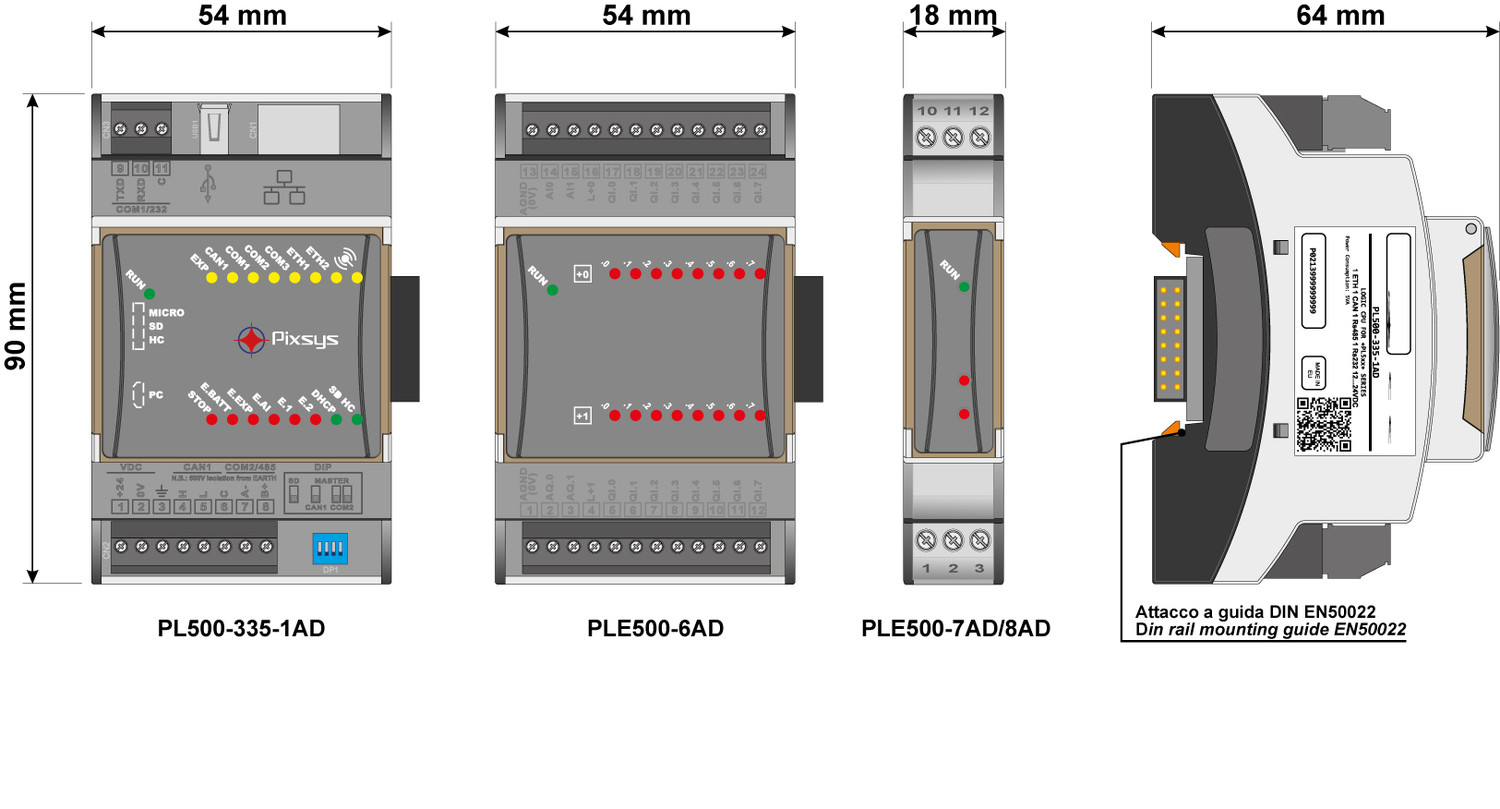

PL500 / PLE500 PLC Dimmensions
SPECIFICATIONOrdering codes
PL500-335-1AD PLC DIN Rail CPU 1 Ethernet, 1 RS485, 1 RS232, 1 CANopen PLE500-6AD
PL500 Expansion 16 Digital I/O, 2 AI, 2 AO PLE500-7AD
PL500 Expansion 1 AI, 2 DO PLE500-8AD
PL500 Expansion 1 AI, 2 DO, 1 AO
Main features
Box DIN43880 - 3 module 54x90x64 (PL500, PLE500-6AD), 1 module 18x90x64 (PLE500-7AD, PLE500-8AD)
Power supply 12..24 V DC +/- 15%
Power consumption 3 W
Operating conditions Temperature 0-45 °C, humidity 35..95 RH%
Material Noryl V0
Weight Approx. 250 g
Sealing IP20 box
Terminal blocks Extractable
PL500 technical data
Processor ARM Cortex A8-1 GHz
Memory Flash 4 GB/ RAM 512 MB DDR3
Memory Card Micro SD
Expansion Bus PLE-DIN-BUS (real time) on DIN RAIL
Field bus RS485 (Modbus RTU Master/Slave), RS232 (Modbus RTU Master/Slave), CANopen (Master), Modbus TCP/IP (Master/Slave)
USB 1 port for PLC programming/update
Ethernet 1 port 10/100 Base-T on RJ45 for PLC programming and for Modbus TCP/IP communication
PLE500-6AD technical data
Digital input 16 PNP (selectable)
Digital output 16 PNP (selectable)
Encoder input 4 (Res. 32 bit, 50 KHz) Push Pull
Analogue input 2 (Res.16 bit 40000 points) 4..20mA/0..10V
Analogue output 2 (Res. 16 bit) 0/4..20 mA
Bus Protocol PLE-DIN-BUS (real time) on DIN RAIL
PLE500-7AD technical data
Digital output 2 PNP
Analogue input 1 (Ris. 16 bit) selectable: TC type K,S,R,J, PT100, PT500, PT1000, Ni100, PTC1K, NTC10K, (β 3435K), 0..10 V (54000 points), 0/4..20mA (40000 points), 0..60 mV (16000 points, potentiometer 6 KΩ, 150 KΩ (50000 points)
Bus Protocol PLE-DIN-BUS (real time) on DIN RAIL
