PT100 250 DegC with Aluminium Head

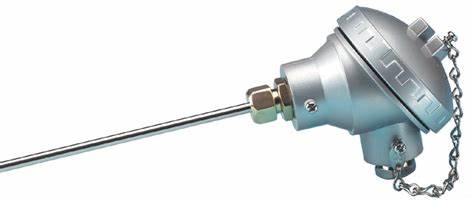

CT20001XX PT100 RTD Sensor





Low cost general purpose class B PT100 temperature sensor max 250 DegC with 6mm stainless steel tube under aluminium IP65 terminal head. Class B +/- (0,3+0,005 * t), +/-0,3 °C (0 °C), ±0,8 °C (100 °C), defined on range (thin film resistor)

CT2000110 200mm total length below head including fitting

CT2000111 300mm total length below head including fitting

CT2000112 400mm total length below head including fitting

CT2000110-T 200mm total length below head with 4-20mA output

CT2000111-T 300mm total length below head with 4-20mA output

CT2000112-T 400mm total length below head with 4-20mA output

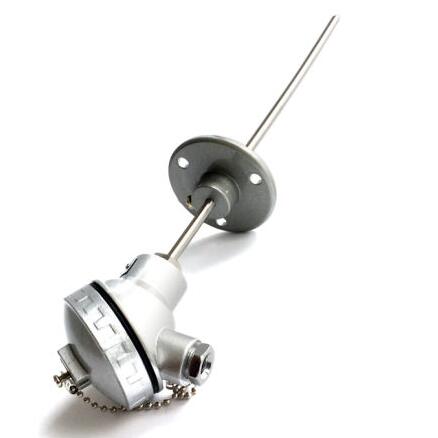

CT2000FN removable Mounting Flange

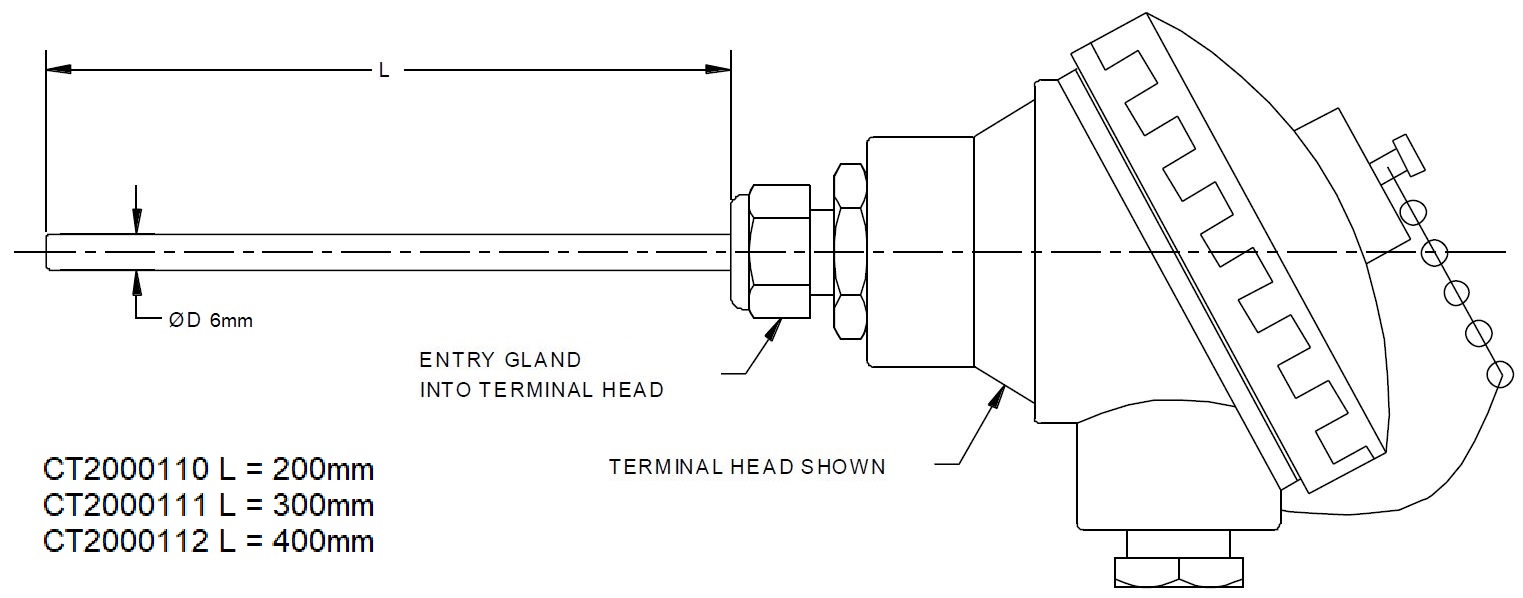

CT20001XX PT100 RTD Sensor Dimmensions



2000.00.146 PT100 Sensor 50mm x 6mm Max Temp 250 degC

2000.035.010 PT100 Temperature Transmitter



Transmitter 2000.035.010 temperature transmitter. Smartphone configurable via Android app or RFID PC programmer. 2,3 or 4 wire PT100 input -200 to 600 degC



2000.35.015 Isolated Universal Thermocouple/PT100 Transmitter

Datasheet

Transmitter 2000.035.015 isolated universal temperature transmitter. Smartphone configurable via Android app or RFID PC programmer. Thermocouple or 2,3 or 4 wire PT100 input.

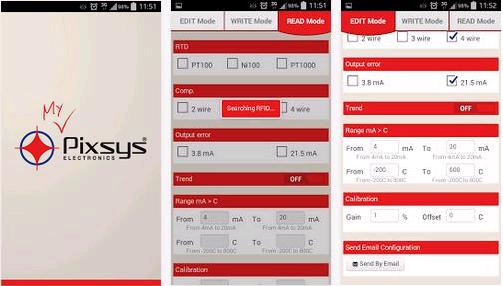

Free Smartphone App for Transmitter Programming



Android App for smartphones with NFC for fast programming of in head transmitters. Free from Google Play search Pixsys
