APM Digital Rate Panel Meter
APM-RATE-APO Programmable Panel Meter Rate measurement

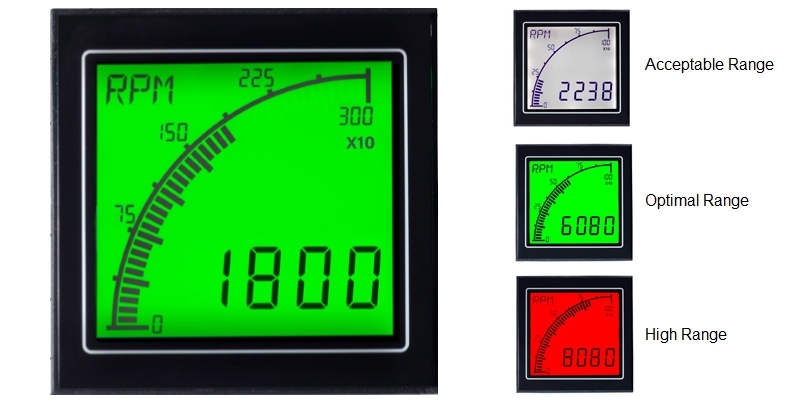

The APM Rate Meter is a programmable digital rate meter specifically designed for effective display, monitoring and measurement of speed, rate and flow to an accuracy of 0.01%. It uses a 12 to 24V AC/DC power supply and accepts a programmable input of 0.001 to 60 Khz. It Provides a high level of accuracy and an immediate visual display of your process measurement with with the 4 digit numeric display and the 90 degree digital moving bar graph.
The Trumeter APM-RATE-APO panel meter is a very economical alternative often expensive, standard 96 x 48 DIN digital panel meter. The APM-RATE-APO digital panel meter has an input range 0.001 to 60 Khz and an accuracy of 0.001%.

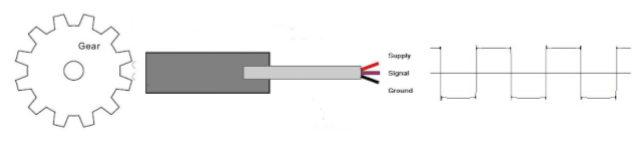

Typical application for APM-RATE-APO
The APM-RATE-APO detects and measures the frequency of the output from the inductive sensor. An underspeed or overspeed relay output can be assigned and the threshold set with the configuration software or a retransmission output in 4-20mA of rate measurement.

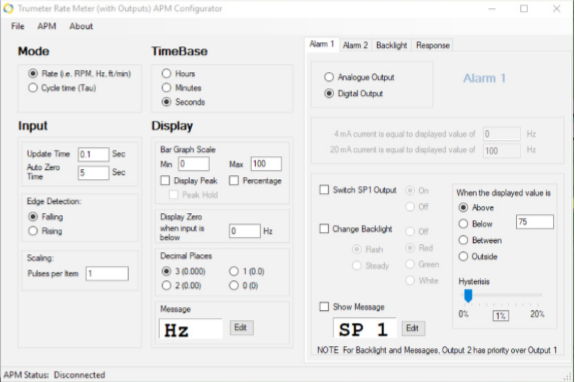

Set the APM Rate Meter with free software
APM digital panel meters are suitable for a variety of applications including:
–Flow meters & utilities, perfomance monitoring – industrial applications – aviation, marine and automotive industry
Physical Dimmension APM Rate Meter
Specification APM-RATE-APO Digital Panel Meter
Input 0-60 khzLogic = 0 < 1.2V
Logic = 1 > 2.0V
Max Input Voltage 36 V Accuracy 0.01%
ENVIRONMENTAL
Temperature - operating -10 to +60 degC
Temperature - storage -40 to +70 degC
IP rating (from the front) IP65
POWER SUPPLY
Nominal Input 12-24V DC
DISPLAY
Number of digits 4
Digit height 12mm [0.47"]
Number of message characters 4
Backlight colours Red, Green, White
LCD display Positive or Negative
OUTPUTS
Max voltage 24V
Max current 500mA
Analogue output 4-20mA
CERTIFICATION UL and cUL, CE, RCM Approval
