S315 Digital Panel Meter in enclosure
S315-4-IP66 4-20mA Digital Panel Meter in IP66 enclosure
S315-4-IP66 is a 4 digit 4-20mA loop powered, digital panel meter supplied enclosed in an IP66 ABS enclosure with hinged transparent lid, ideal for field mounting inside or outside. The S315 panel mount indicator mounted inside the enclosure is a loop powered low energy LED digital display which maintains a bright display even at lower end of the 4-20 mA input scale. The decimal point, 4-20mA input scaling and sample filter are configured by password protected frontal push buttons. The item code is also available with 2 panel meter enclosure and a 3 panel meter enclosure.
S315 4-20ma Panel Meter User Manual

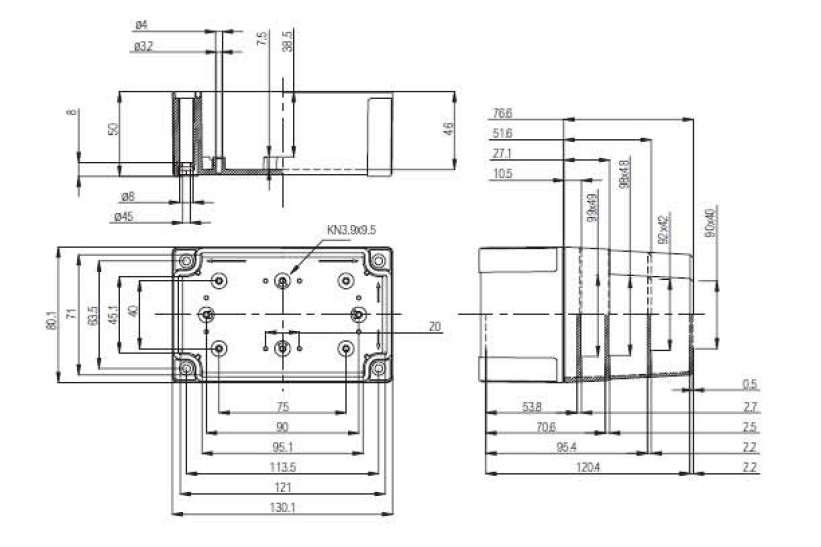

S315-4-IP66 Panel Meter Dimmensions
S315-4-IP66 Panel meter SPECIFICATION
By the input Power supply loop (max 30 V)Voltage drop Max 7 V [6,2 V + (506 * 4-20 mA)]
ADC resolution 16 bit (40.000 points)
Memory EEPROM, 10 years
DISPLAYING AND MEASURE
Display LED, 4 digits
Front buttons 3 (down, up, menu)
Accuracy 0,05%
Thermal stability 0,005%/DegK
Linearity 0,05%
INPUT
Channel 1
Type and range Current (4-20mA)
Electromagnetic interf. < 1%
Value > 3% of full scale or greater than 9999
Value < 3% of start scale or lower than -9999
