4.3" HMI Text Display
SH300 HMI or Text Panel

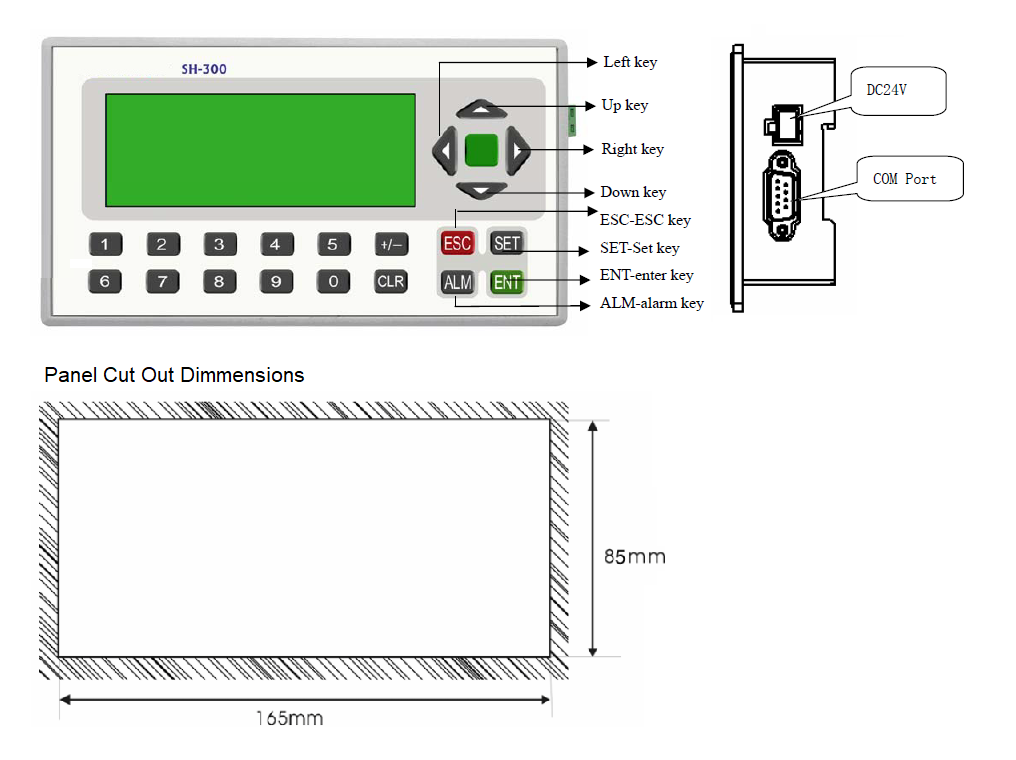

SH300 is a low cost 4.3" monochrome 192 x 64 pixel, text panel or HMI that can be connected to a PLC or other Modbus RTU slave device to display variables, statuses and allow operator modification of threholds and presets. the SH-300 can also display basic graphics such as push buttons, lamps, bar graphs, trends and bit maps.
The windows based project development software of SH300 is user friendly and
easy to learn.

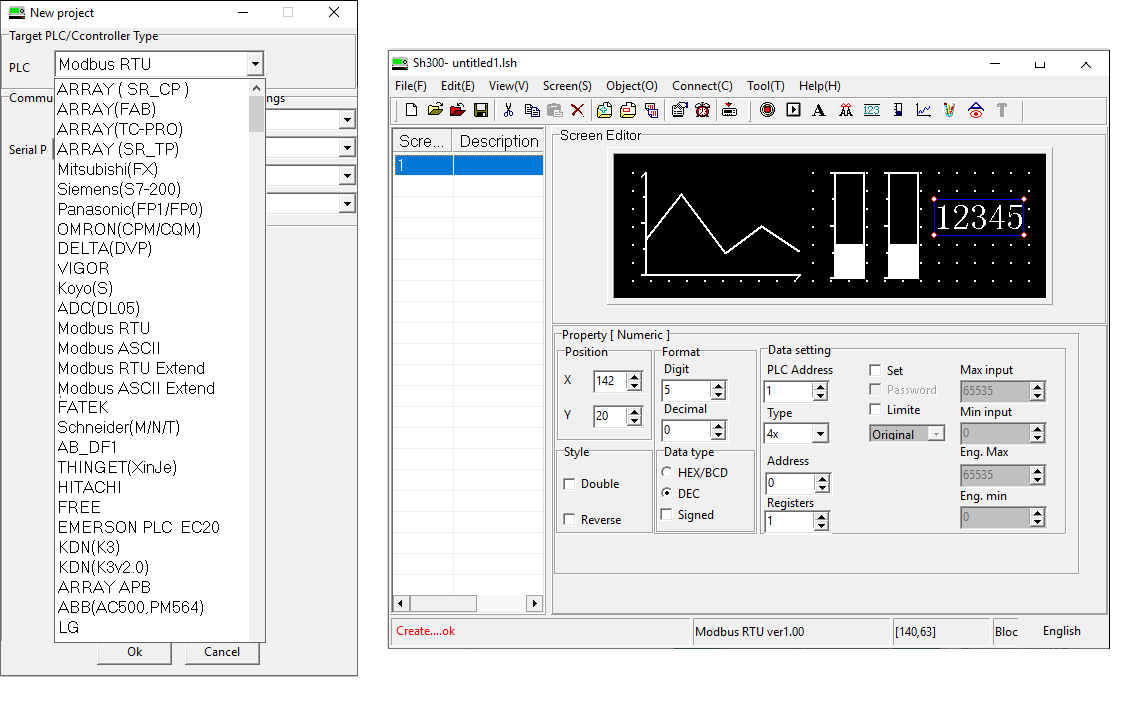

SH300 HMI Program Software
SH-300 Text Panel or HMI is programmed by SH300 program software compatible with latest versions of Windows. Numeric, text and various graphical representations of variables can be configured. There is also as standard alarm templates, password protection of entry and multi language selection.
The SH300 HMI supports Modbus RTU functions 03 and 04 only, there are also protocols for many third party devices including Siemens, Allan Bradley, Mitsubishi, Omron etc
