SR12 Smart Relay
Product Range
Smart Relay with Modular Display / HMI
SR12MRDC Smart Relay
The SR smart relay or mini PLC is a low cost, programmable controller programmed by Supercad FBD free software, which is powerful and simple to learn. The The SR smart relay has optional frontal display, which is modular in design and can be mounted on the front of the PLC or into panel mount kit for operator access to essential parameters. These can be locked behind a password.
The SR12MRDC smart relay is powered by 12-24VDC supply, it has 4 mechanical relay outputs & 8 digital inputs. 6 of these digital inputs can also be used as 0-10V inputs for applications involving moisture, temperature, pressure, flow, liquid level etc. The SR smart relays host a range of comprehensive functions. In addition to standard counters, timers & logical functions they have analogue comparators,real time clock with time schedulers, display and user adjustment for functions such as thresholds, counter or timer presets.The SR smart relays are supplied without a display. An optional display SR-HMI is available which clips onto the front. The SR-HMI can also be mounted onto the front of the control panel using the SR-HMI EHC panel mount adapter kit which is supplied with a mtr of cable with d9 connector.
SR-HMI LCD Display
SR-HMI with SRHMI-EHC Panel Mount Adapter

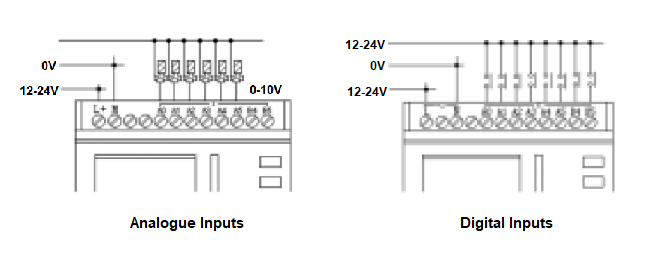

Analogue Inputs
The SR smart relays provide solutions for process control applications. 6 of the 8 digital inputs are configurable for 0-10V analogue input.

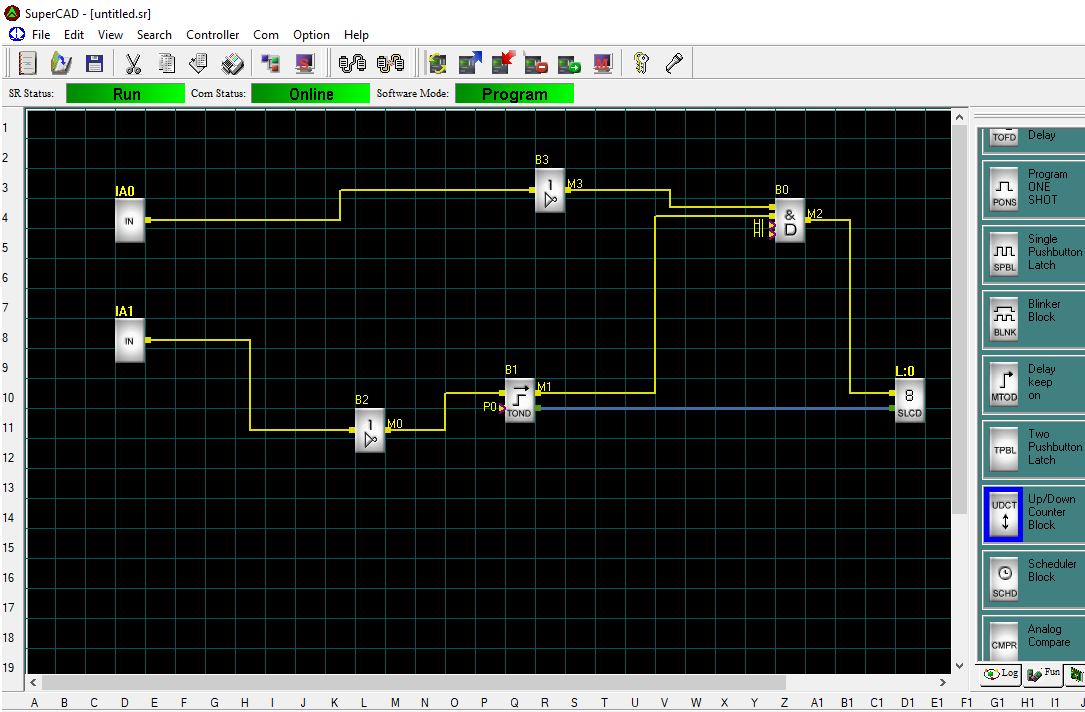

SuperCad Free FBD Program Software

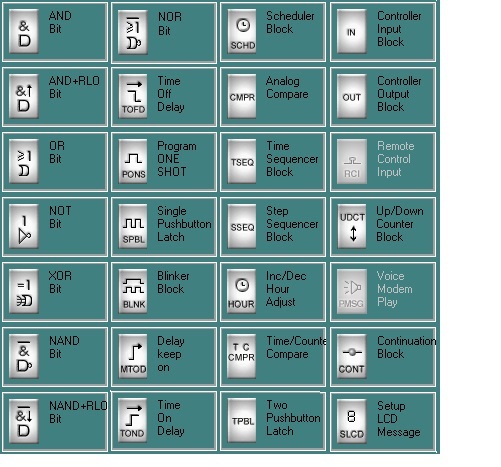

Standard Functions
