STR551 Digital Panel Meter with Bargraph

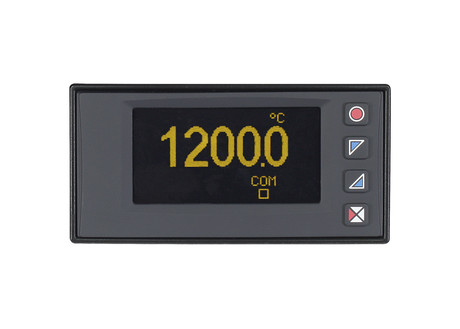

Digital Panel Meters STR551-AD for 4-20mA, 0-10V input signals
The indicator STR551 stands out in its market segment for the bright OLED display and the innovative multilingual interface as well for RFID/NFC connectivity. The analogue input can be configured by parameter for a wide range of temperature sensors and process signals in mA and Volts. The monochromatic OLED graphic display supports a large numeric display, graphs showing process trend with programmable sampling times and bar graphs with alarm thresholds typically used for level, flow and dosage visualization.
The linearization of input can be customized up to 16 points as required on tanks with irregular profile. Mathematical functions linked to process value are also available, such as Totalizer and Sum. Connectivity is guaranteed by RS485 with Modbus RTU/Slave protocol.

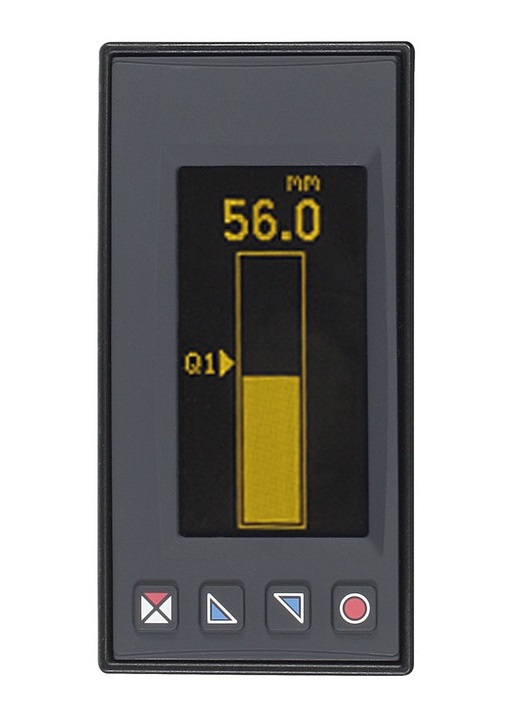

Numeric, Bargraph or Trend Display
Vertical or Horizontal Orientation
For maximum flexibility of use, it is also possible to choose between horizontal or vertical installation of the same device.
Distinctive feature of the entire STR series is the ability to configure and clone the device using an Android smartphone via RFID/NFC using the free MyPixsys smart phone APP from GooglePlay

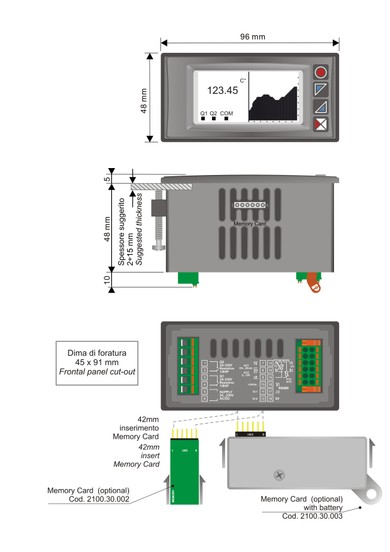

Physical Dimmension STR551
Specification
Box 96x48 (Front panel) x 48 mm (1/8 Din)
Power supply 24-230VAC/DC +/-10% 50/60 Hz (galvanic isolation 2500V)
Consumption 6 VA
Display OLed (monochromatic yellow)
Operating conditions Temperature 0-45 °C, humidity 35-95 RH% (non condensing)
Material Box: Polycarbonate V0
Weight Approx. 165 g
Sealing Front panel: IP54 (IP65 with gasket) - Box and Terminal blocks:IP20
Quick set-up options Software LABSOFTVIEW, Android Smartphone and/or Memorycard

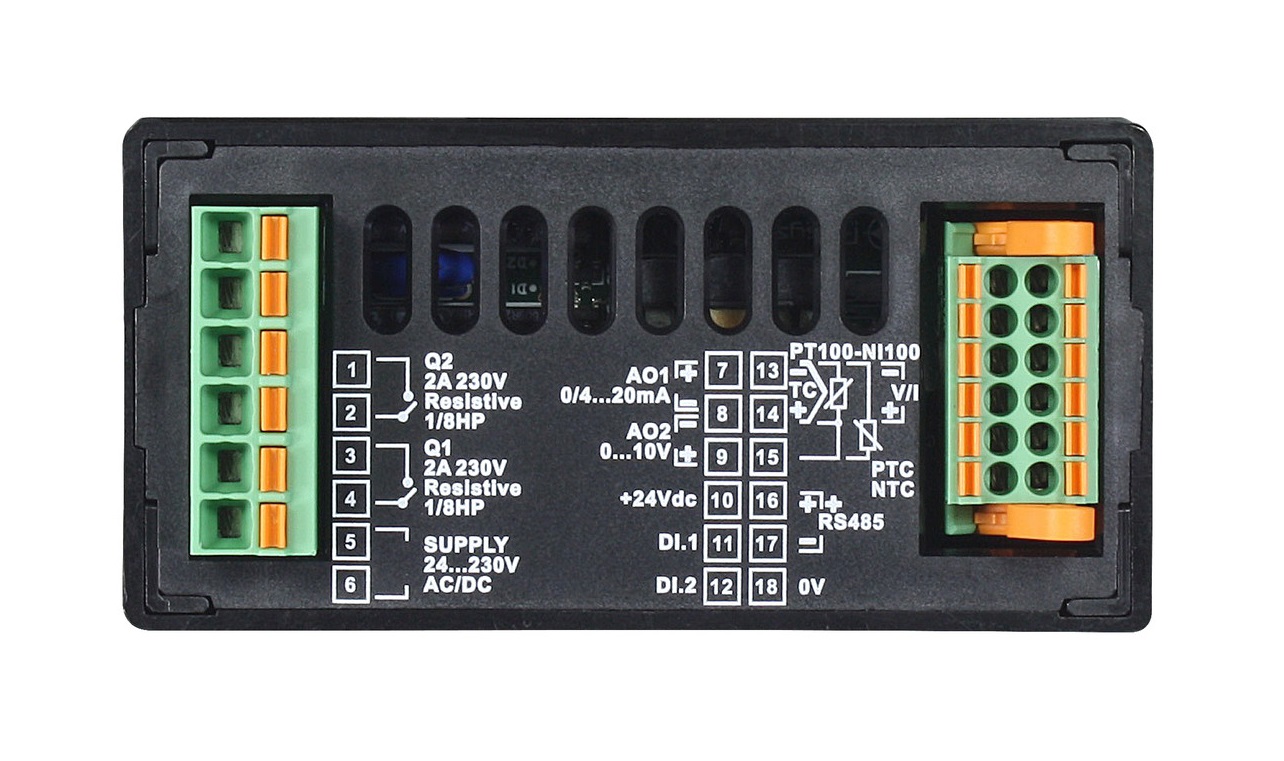

Wiring extractable terminal blocks, spring lock
Inputs 1 Analogue
Res.16 bit, Selectable for TC type K, S, R, J, T, E, N, B (automatic compensation of the cold junction 0-50 °C, +/- 0,2% F.S. +/- 1 Digit F.S.), thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), process signals 0-10V (54000 points), 0 / 4-20mA (40000 points), 0-60 mV (16000 points), Potentiometer 6 KΩ, 150 KΩ (50000 points) Customizable linear input (max 16 steps)
2 Digital
PNP inputs programmable for Run / Hold / Tare-Zero / Alarms reset/ Peaks reset/ Totalizer reset / Activate-Reset Sum / Parameters-Setpoint Lock
Sampling time 4,1 ms (Frequency from 4,12 Hz to 242 Hz)
Outputs
2 Relays
2A - 250VAC (resistive charge)
2 Analogue
1 output 0-10V (60000 points) - 1 output 0 / 4-20mA (60000 points)
1 Auxiliary 24 VDC - 30mA for external sensors supply (loop-powered)
Serial communication RS485 Modbus RTU - Slave (1200...115200 Baud) galvanically isolated from Power supply/Inputs/Outputs
Software features Alarms regulation
ON - OFF with hysteresis
Alarm mode
Absolute / Threshold, Band with instantaneous/delayed/retentive/by digital input activation, Sensor failure / Activation by serial line
CERTIFICATION UL and cUL, CE
Pixsys Smartphone APP free download from GooglePlay
