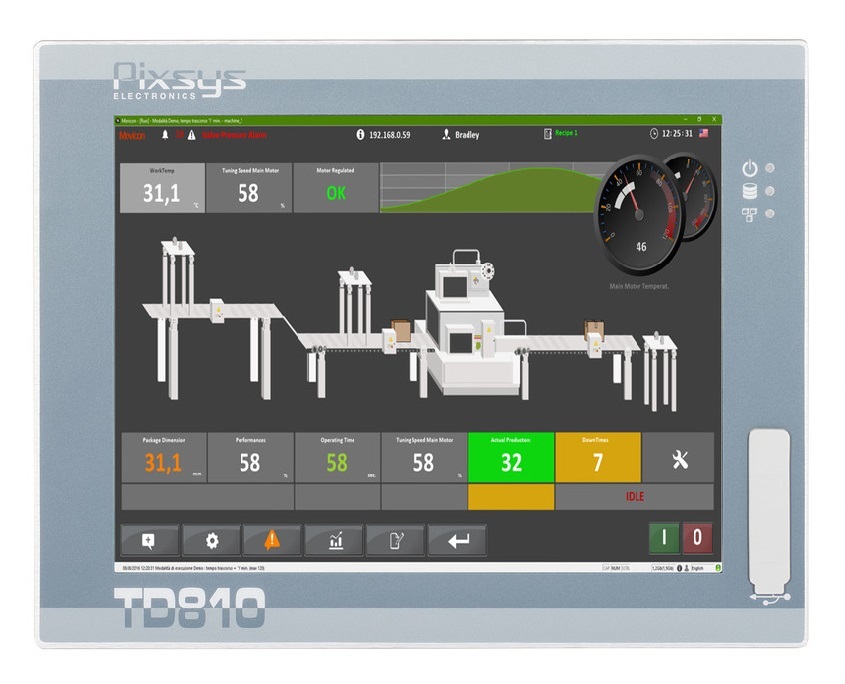

10.4" colour touchscreen HMI 800 x 600 Pixel
TD810-AD HMI with modular PLC
HMI 10.4" integrating soft-plc + 1 RS485 + 1 CANopen + 1 Ethernet + Movicon CE Lite
273 x 215 (front panel) x 35
Power supply 12...24 V AC / V DC +/-15% 50/60 Hz (galvanic isolation 2500V)
Processor ARM Cortex A8 @ 1 GHz
Memory eMMC 4 GB/ RAM 512 MB DDR3
Serial communication RS232-RS485 (1200..115200 Baud) galvanically isolated
Sealing Front Panel IP65
Supports 1 x ETD1644 Expansion Module
TD810-AD with modular ETD1644 expansion fitted
ETD1644 I/O Expansion Module
16 programmable digital I/O outputs PNP- 3 Encoder Push-Pull res. 32 bit max 80 KHz -
SPECIFICATION
Processor ARM Cortex A8 @ 1 GHz
Memory eMMC 4 GB / RAM 512 MB DDR3
Serial communication RS485 (1200..115200Baud) galvanic isolated
Field busCAN (70K..1Mbit) galvanic isolated
USB 1 USB 2.0 on the back side
Ethernet 1 Ethernet 10/100 Base-T on RJ45 connector
Memory card SD/MMC Reader
Software features
Operating system Windows 7 Embedded Compact
Programming of operating logics Logiclab, optional choice of languages according to IEC 61131-3
Programming of graphic interface Movicon 11
Communication protocols Third party drivers including BACnet IP, B+R System 2000, Allen Bradley DF1 Internet IP, Siemens. I/O Driver supported by Movicon, Modbus RTU Master/Slave; Modbus TCT/IP Master/Slave; CAN Open Master; Free-port mode for modems or proprietary devices
Real-Time clock, Back-up battery
