12.1 Inch HMI with 2 Independant Ethernet Ports and Soft PLC

SEE ALSO;

TD830-AD 15.6 Inch HMI

Resistive Touch screen 1280x800, ratio 16:9

Based on the WEC 7 operating system and ARM CORTEX A8 processor, with integrated solid-state memory, the panel is programmable with Movicon 11.6, allowing interface with the most popular PLC brands.

Connectivity includes an opto-isolated RS485 serial port and two 10/100 Ethernet ports with distinct MAC address to allow separation between the machine/plant network and the company network (ERP, Industry 4.0, Internet access).

VPN connection for remote desktop/webserver and program debugging/updating is integrated via pre-installed Pixsys Portal software service.

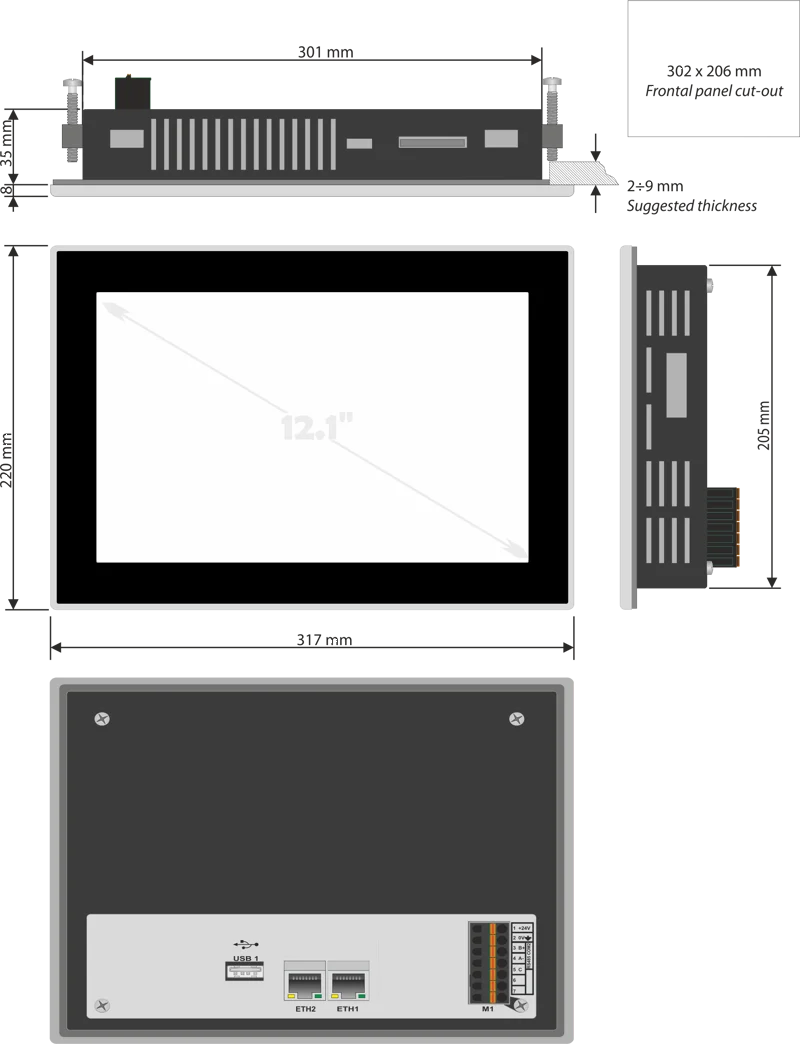

DIMMENSIONS









TD820-AD can support up to 2 modular ETD1644 expansion.


ETD1644 I/O Expansion Module
16 programmable digital I/O outputs PNP- 3 Encoder Push-Pull res. 32 bit max 80 KHz -

4 analogue inputs (res. 16bit) selectable: Thermocouple type K, J, S, R (automatic compensation of the cold junction 0-50 degC, accuracy @ 25degC +/-0,2% F.S. or +/-1 digit), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), linear inputs (0) 4-20mA (40000 points), 0-10V (54000 points), 0-40mV (16000 points), potentiometers F.S. 6/150Kohm (50000 points) 4 programmable analogue outputs

4-20 mA/ 0-10 Volt




DIN Rail Expansion Modules



Din rail mount expansion modules for Pixsys and third party devices with digital I/O, universal analogue inputs and 0-10V 4-20mA analogue outputs. All modules utilize both Can Open and Modbus RTU protocol, user selectable input types and communication settings. 12-24VAC/DC supply.





SPECIFICATION

Power supply 24 V AC/DC +/-15% 50/60 Hz - galvanic isolation 2,5kV

Power consumption 8,5 Watt/VA

Processor ARM Cortex A8 @ 1 GHz

Memory eMMC 2 GB / RAM 512 MB DDR3

Display 12.1" LCD TFT resistive touch, 1280x800 pixel, 16:9, 16.7M colors (24 bit), 400 cd/m2(lifetime typ. 30000h @ 25 DegC

Clock Real-Time clock, Back-up battery

Serial communication RS485 (1200..115200 Baud) galvanically isolated

Ethernet 2x 10 / 100 Mbit/s - separate MAC address

USB 1x USB 2.0

Operating system Windows 7 Embedded Compact

Communication protocols Modbus RTU - Modbus TCP/IP - OPC-UA client - ADS Twin CAT - B+R System 2000 PVI - S7/TCP -FINS Serial - FINS Ethernet - NJ Ethernet/IP - MELSEC Serial - MELSEC Ethernet - DF1 Protocol - Ethernet/IP

Graphic interface programming Movicon 11.6 (IDE)

VPN Pixsys Portal software (pre-installed in demo version) for remote desktop connection (VNC)/ Web Server/ Client FTP /remote assistance.
