VT-PROC-LV Panel Meter

Vista Touch Process Panel Meter with Modbus TCP and Data-logger



VT-PROC-LV Multi-channel panel meter installation guide



The VT-PROC multi-channel panel Meter has inputs for up to eight sensors (4 x 4-20mA and 4 x 0-10V), consolidating multiple input signals into a single monitoring point and providing an inexpensive solution to convert multiple analogue signals to Modbus TCP/IP.

There are four programmable maths functions ( +, -, x, /, x2) and advanced non-linear scaling which enable custom calculations and compensation for complex sensor types. The VT-PROC delivers 0.1% accuracy across the full input range and support for both Modbus RTU (RS485) and TCP/IP (Ethernet) protocols.



The VT-PROC also has data-logging capability storing data in CSV format to internal 2mB non-volatile memory which can be expanded and extracted by USB flash drive (FAT16/FAT32 format up to 32GB)

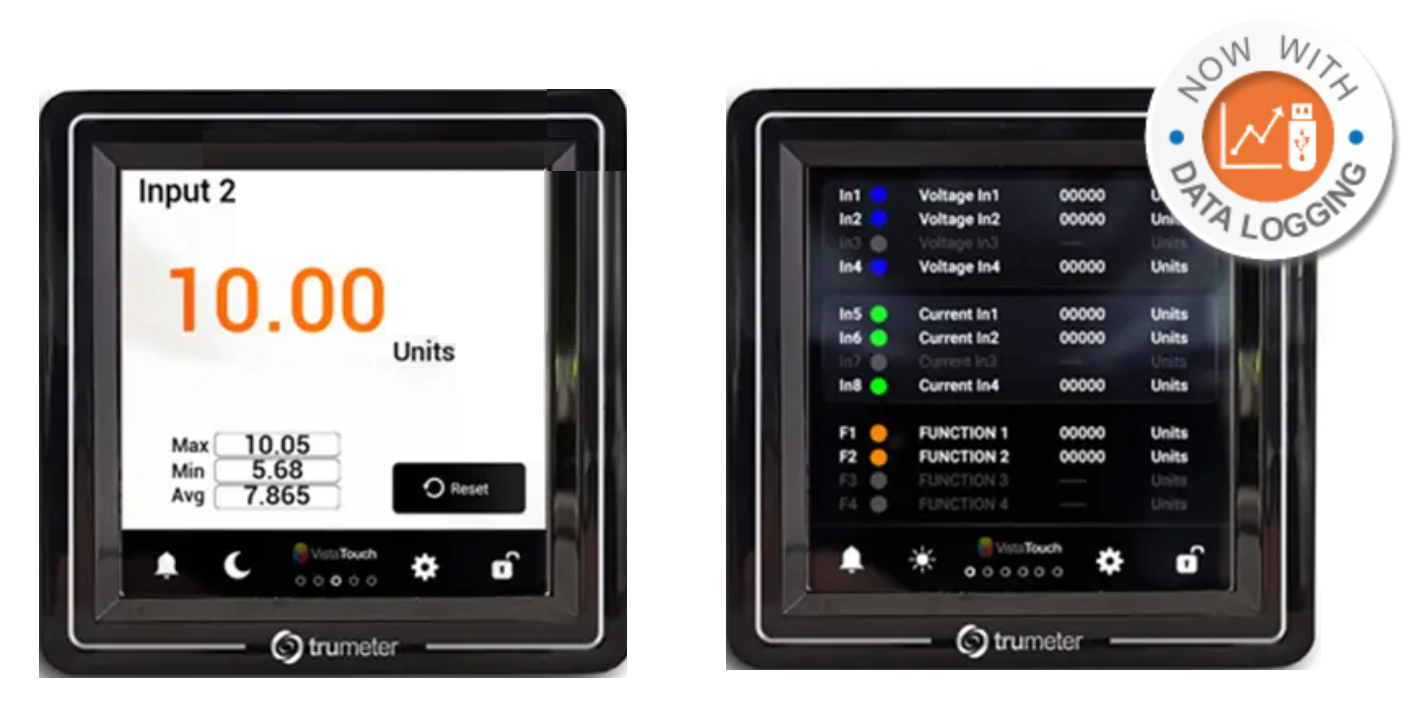

The VT-PROC-LV has a 65K full-color 70mm x 70mm Intuitive touchscreen for easy configuration and adjustment, in addition to local data logging through the Ethernet port, Trumeter Cloud remote monitoring, trending, and alarm notifications are available.

IP65, NEMA250 & UL50E Type 12 and Type 4 protection rating is standard with 1/4 DIN (92x92mm cut out) industry-standard mounting.

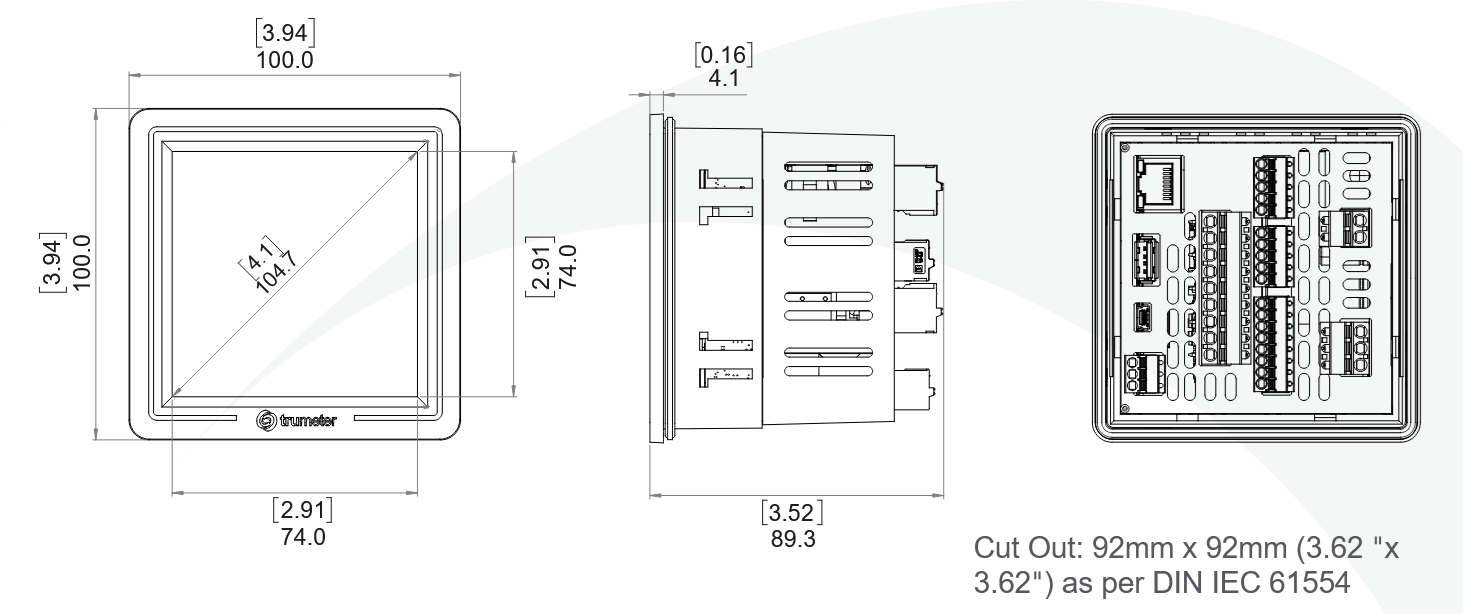

DIMMENSIONS

TECHNICAL DATA

PSU 12-24V AC/DC VT-PROC-LV

4 Current 4-20mA 240 Ohm Impedance

4 Voltage 0-10V >1 MOhm Impedance

Input Measuring Accuracy 0.1%

2 relay contacts DC-13: 30V / 5A MAX, AC-15: 277V / 5A MAX

Analogue Output 4-20mA 0.5% accuracy 0.02mA resolution

Communication RS485 - Modbus RTU Ethernet - Modbus TCP

Platform - Trumeter Cloud

USB - Mass storage (USB flash drive)

Memory 2MB of internal non-volatile memory to store all settings Supports USB flash drive (FAT16/FAT32 format up to 32GB)

Certifications CE, cUL, IP65, ROHS, UKCA, UL, EN61010-1, NEMA250 Type 4 and Type 12, UL50E Type 4 and Type 12

Operating Temperature -20 DegC to +60 DegC 0 - 85 % RH Non Condensing

Dimensions 3.94in x 3.94in x 3.52in | 100mm x 100mm x 89.3mm

Bezel IP Rating IP65
