Extra Large Industrial Process Display
W410 Display
The W410 large digit display is equiped with one universal input, type: 0/4-20 mA, 0-10V, 0-150 mV, Pt 100/500/1000 or TC (K, S, J, T, N, R, B, E). Due to wide range of characteristic curves (linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks) the meters can be used in various process control systems. This device is equipped with a large, 100 mm high, large LED display with brightness adjustable in 8 steps. The device has 4 buttons being used for main parameter programming. To get high protection level, the keyboard is mounted under transparent cover. To allow the user to change parameters without opening the cover, an IR sensor is mounted for set up via the SIR remote programmer. The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems. The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values. This large display meter can also be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output. The large panel meter may also be configured with free S-Config software via the RS-485 communication port.

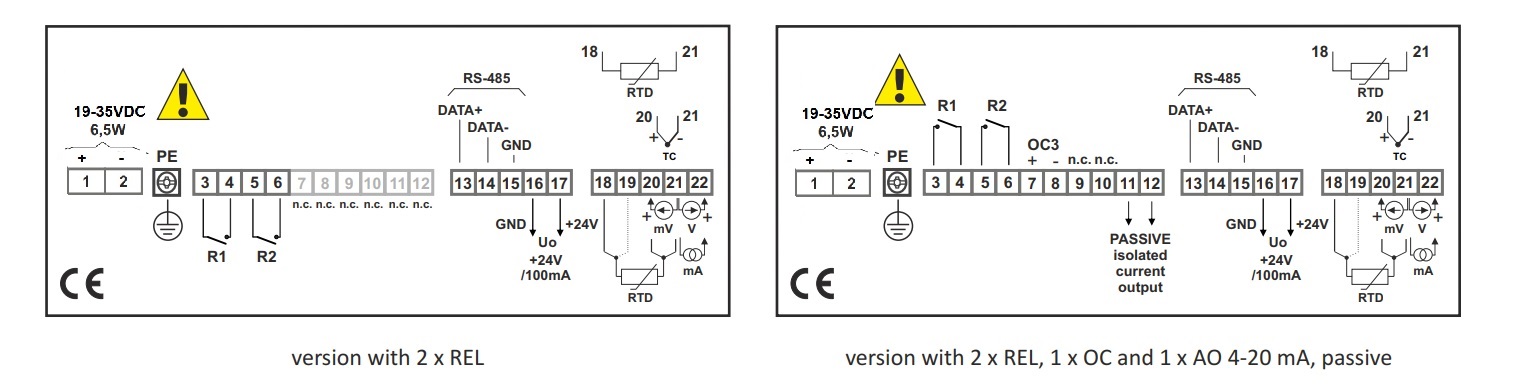

Terminal Connections

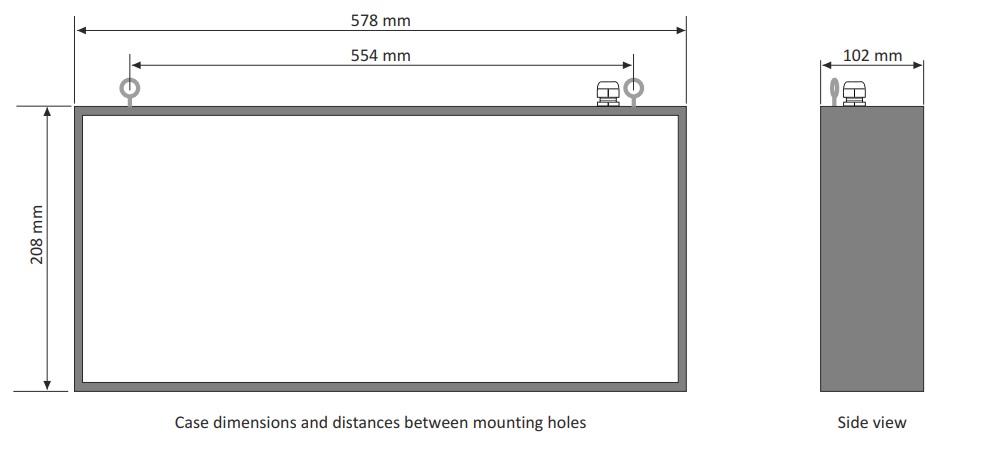

Physical Dimmensions USUR-W10 Large Display
Specification
Power supply Power consumption 19V - 50V DC; 16V - 35V AC or 85 - 260V AC/DC, all separated for 19V - 50V DC: max. 13,5 W; for 16V - 35V AC: max. 19,5 VA; for 85 - 260V AC/DC: max. 21 VADisplay LED, 4 x 100 mm, 8 adjustable steps of brightness
Displayed values -999 - 9999 + decimal point
Input current: 0-20 mA or 4-20 mA, input resistance < 65 ohm(typ. 30 ohm), overload-protected, input current limited to 50 mA;
voltage: 0-5 V, 1-5V, 0-10V or 2-10V, input resistance > 100 kohm
input resistance ohm thermoresistance: Pt100, Pt500, Pt1000 (automatic recognition of 2, 3 and 4-conductor connection, resistance
compensation of connecting conductors to 20 ohm at any conductor); measuring range: -100 degC - 600 degC
thermocouple: type K, S, J, T, N, R, B, E; measuring range: K: -200 degC - +1370 degC; S: -50 degC - +1768 degC; J: -210 degC - +1200 degC; T: -200 degC - +400 degC; N: -200 degC - +1300 degC; R: -50 degC - +1768 degC; B: +250 degC - +1820 degC; E: -200 degC - +1000 degC
milivoltage: 0-60 mV, 0-75 mV, 0-100 mV, 0-150 mV, > 1,5 M
accepted prolonged input overload: 20%
Accuracy 0.1% @25 degC ± one digit (inputs: current, voltage, milivoltage, thermoresistance, thermocouple K, J, E); 0.2%@ 25 degC (thermocouple N), 0.5%@25 degC (thermocouple S, T, R, B) Stability 50 ppm/ degC
Binary outputs 2 or 4 x REL Imax=1A, Umax=30VDC/250VAC (cos=1) or OC Imax=30mA, Umax=30VDC, Pmax=100mW
Analogue output (available with 2 x REL or OC, see ordering) active current: - passive current: isolated, max. 2,8-24 mA), active voltage: 0/1-5V, 0/2-10V (max. 0-11V), 2000
operating range 0/4 20 mA (max. 0-24 mA), load resistance 700 Ω max., resolution 13 bit range 4-20 mA ( load resistance 600 ohm@24VDC, resolution 13 bit range load resistance min. ohm, resolution 13 bit
Power supply output 24V DC +5%, -10% / max. 100 mA, stabilized Communication interface RS-485, 8N1 and 8N2, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (not galvanically isolated)
Operating temp. 0 degC - +50 degC (standard), -20 degC - +50 degC (option)
Storage temp. -10 degC - +70 degC (standard), -20 degC - +70 degC (depending on option)
Protection class IP 30
Case wall mounting; material: wall mounting; material: aluminium + methyl polimethacrylate
Dimensions (WxHxD) 578 x 208 x 102 mm
