Extra Large Modbus RTU Master or Slave Display
W510 LED Display
The W510 is a simple digital indicator intended for visualizing numerical values and characters defined by user (in SLAVE mode only) sent from the master device over a RS485 serial interface network. The displayed value may be collected from other device (in MASTER mode). The display brightness is adjustable in 8 steps. The W510 has 4 buttons for main preset entry. To acheive a high protection level, the keyboard is mounted under the transparent cover. To allow user to modify presets without opening the cover a IR sensor can connect with remote controller keypad. Modbus RTU protocol is used to communicate with device. The indicator can be configured with IR remote controller, local keypad or free S-Config software via the RS-485 communication port.

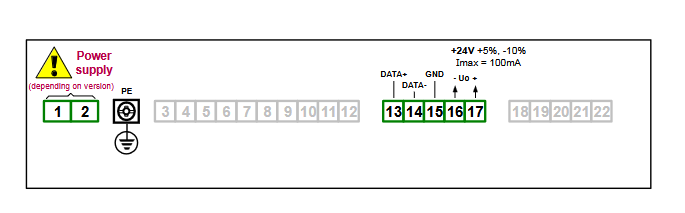

Terminal Connections

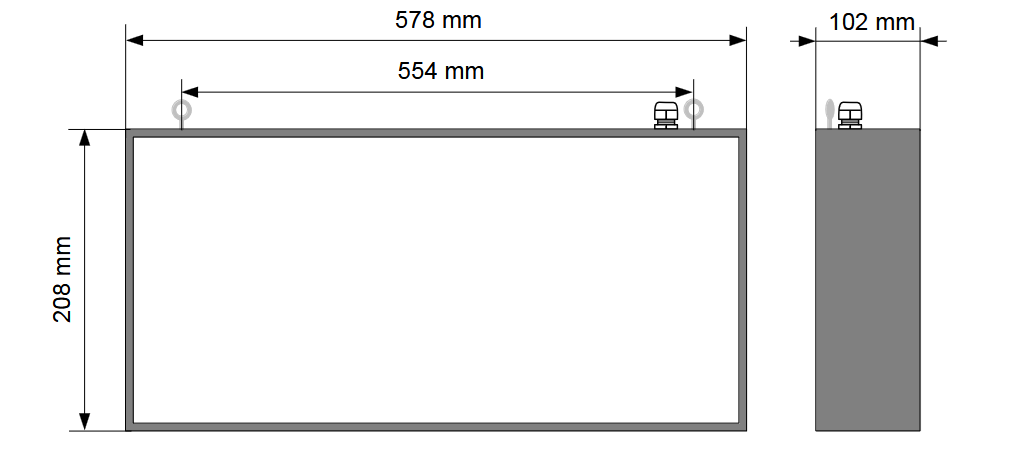

Physical Dimmensions USUR-W10 Large Display
Specification
Power supply Power consumption 19V - 50V DC; 16V - 35V AC max. 13,5 W; for 16V - 35V AC: max. 19,5 VA; Display RED LED, 5 x 100 mm, 8 adjustable steps of brightnessDisplayed values -9999 - 99999 + decimal point
Communication interface RS 485, 8N1 and 8N2, Modbus RTU, not separated Baud rate 1200 bit/s รท 115200 bit
Protocol Modbus RTU Master or Slave Operating temp. 0 degC - +50 degC (standard), -20 degC - +50 degC (option)
Storage temp. -10 degC - +70 degC (standard), -20 degC - +70 degC (depending on option)
Protection class IP 30
Case wall mounting; material: wall mounting; material: aluminium + methyl polimethacrylate
Dimensions (WxHxD) 578 x 208 x 102 mm
