DST-100 Programmable Temperature Transmitter

2000.00.0xx Temperature transmitter with LED display

User Manual





Pixsys DST-100 is an industrial temperature sensor utilising a -50 to 150 degC rated PT1000 temperature sensor with inbuilt transmitter, dual PNP output switch with inbuilt LED display. Both 0-10V and 4-20mA ouputs are selectable by the user. The DST-100 Temperature Transmitter stands out due to RFID contactless programming using the free smartphone APP and LED display head rotation to allow viewing during different mounting orientations, scaling of measuring range of 50% of the nominal scale and integrated datalogger with programmable sample time are standard features

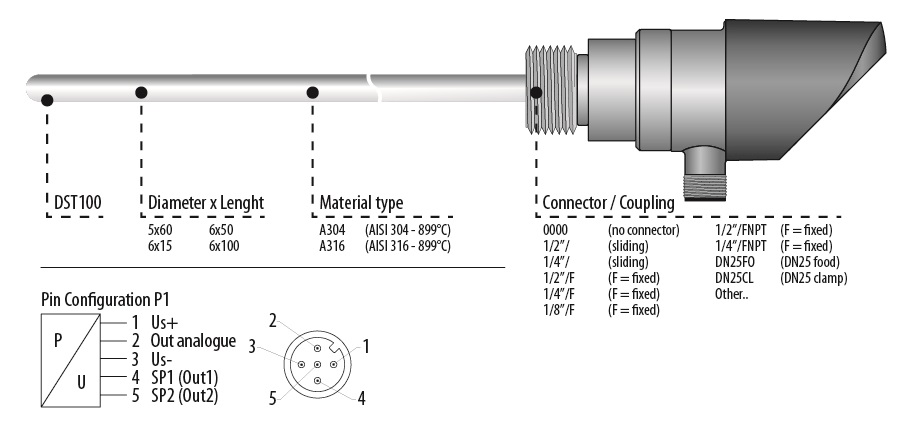

DST100 Temperature Transmitter Options



DST100 Smart Phone Configuration

The Pixsys APP on Google Play or Itunes for IOS devices is free download which allows fast contactless set up and convenient management of files and file sharing



DST100 Pressure Transmitter Specification

Power supply 15..30 VDC

Power consumptionMax 0,8 W

Operating conditionsTemperature -25..+85 degC, humidity 35..95 RH%

Material Sensor housing: galvanised steel; display housing: polycarbonate

Weight Approx. 189 g

SealingIP67 - FPM, NBR, EPDM

Measuring range

2000.01.002DST100 - Range -50 to +150 degC / Fixed connection - 1/2"GAS EL = 100 mm

2000.01.003DST100 - Range -50 to +150 degC / Fixed connection - 1/2"GAS EL = 150 mm

2000.15.002DST100 - Range -50 to +150 degC / Sliding connection - 1/4" NPT EL = 100 mm

2000.15.003DST100 - Range -50 to +150 degC / Sliding connection - 1/4" NPT EL = 150 mm

2000.93.002DST100 - Range -50 to +150 degC / Clamp connection - C50 EL = 100 mm

2000.96.002DST100 - Range -50 to +150 degC / Food connection - DN50 EL = 100 mm

All adjustable 50..100% F.S.

Measuring range- 50..150 °C

Sensor typePT1000

Pressure connection1/4" GAS (Multiple adapters available to match different process connections for various industries)

Electric connection 5 Pole Male M12x1

Housing orientation Display 335 degree rotatable - Electrical connection 343 degree rotatable

Sensor working temperature- 25..+ 85 DegC

Accuracy+/- 0,2% F.S. @25degC Software features

Digital output N.2 outputs PNP

Analogue output Programmable by parameter as mA or V

Display 4 Digit 1..3 decimal points

Pressure unit Selectable deg C,F,K

DataloggerRing buffer: 3518 data points - Sampling time: 0.1 ... 999.9 s, Off (0)

Quick set-up optionsProgramming via MyPixsys APP for Android smartphones (NFC)
