 On Delay Din Rail Timer














  • Ucontrol Terms & Conditions of Sale


  • 12RDT4 DIN Rail ON DELAY Timer 240V - 24VAC/DC

    On-Delay-DIN-Rail-Timer

    12RDT4 Simple On delay Timer with potentiometer adjustment 240V and 24VAC/DC supply. 0.3 seconds to 30 hours 5A @ 240 VAC changover relay.




    Features:


    Compact 17.5 x 65 x 90mm DIN rail mountable

    Time mode on delay

    Wide timing range: 0.3s - 30Hr

    Potentiometer Adjustment for hour minute or seconds

    Green LED Power ON, Red LED Relay ON

    Contact Rating 5A @ 240 VAC / 28 VDC (Resistive)

    Max power consumption 8 VA

    Multi-voltage: 24VAC/DC 240VAC +/- 10%

    Operating Temperature -10 DegC to +55 DegC

    Storage Temperature -20 DegC to +70 DegC

    Enclosure Flame Retardant UL94-V0

    Weight 75g

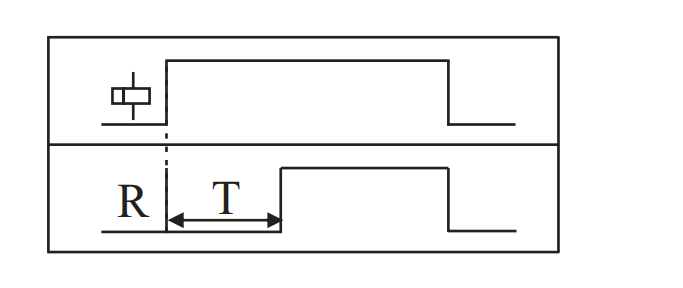

    On-Delay-Timer
