12RDT4 DIN Rail SIGNAL OFF DELAY Timer 240V - 24VAC/DC

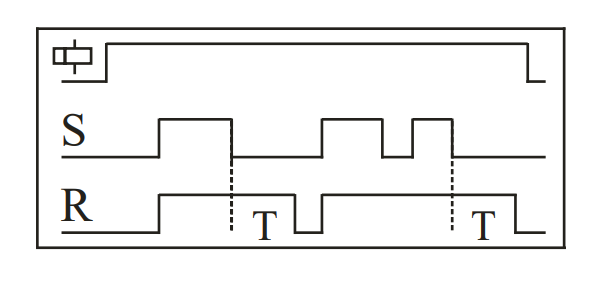

12RDT4 Simple Signal off delay Timer with potentiometer adjustment 240V and 24VAC/DC supply. 0.3 seconds to 30 hours 5A @ 240 VAC changover relay.
Features:
Compact 17.5 x 90 x 65mm DIN rail mount Time mode signal off delay delay Wide timing range: 0.3 second - 30 Hour Potentiometer Adjustable hour minute and seconds Red LED Relay ON, Green LED Power ON Contact Rating 5A @ 240 VAC / 3A @ 30 VDC (Resistive) Max power consumption 8 VA Multi-voltage: 24VAC/DC 240VAC +/- 10% Operating Temperature -10 DegC to +55 DegC Storage Temperature -20 DegC to +70 DegC Enclosure UL94-V0 Flame Retardant Weight 75g
-
