SMART RELAYS AND MINI PLC
-
-
SR Series Smart Relay 22 I/O

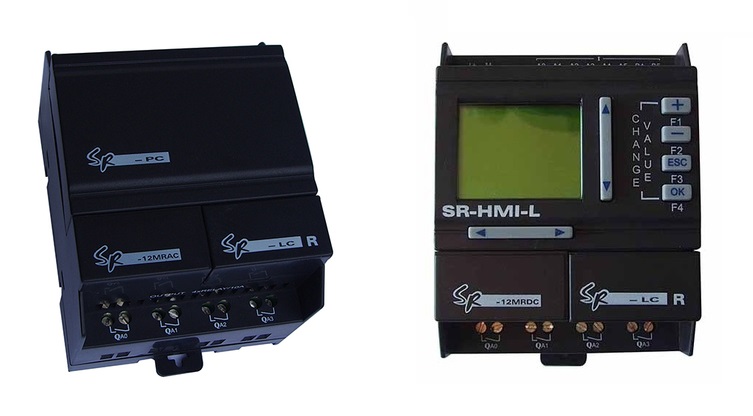

SR12-MRDC Smart Relay Specifications
The SR smart relay is a low cost, programmable controller with 14 I/O, 8 Digital in (6 analogue 0-10V) and 4 relay outputs. The The SR smart relay has optional frontal display, which is modular in design and can be clipped on to the front of the PLC or into panel mount adaptor kit for operator access to essential parameters. These can be locked behind a password. Free Supercad program software.

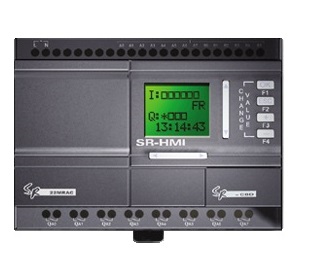

SR Series Smart Relay 22 I/O
SR22-MRDC Smart Relay
SR22-MRDC Smart Relay Specifications
.jpg "Smart Relay")
The SR smart relay is a low cost, programmable control with 22 I/O, 14 Digital in (8 analogue 0-10V) and 8 relay 2A mechanical relay outputs. The SR22 smart relay has optional frontal display, which is modular in design and can be clipped on to the front of the Controller or into panel mount adaptor kit for operator access to key parameters. These can be protected behind a password. Supercad program software is free of charge.

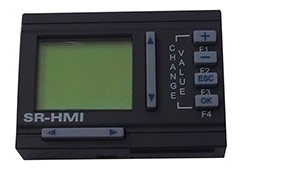

SR-HMI LCD Modular Display for SR Series Smart Relay
The SR-HMI is a modular 4 line of 10 Character backlit LCD display for the SR series smart relay or PLC. It can be used with up to 64 function blocks to display functions such as messages, analogue inputs, threshold, timer, count or preset values and allow adjustment by the operator. Access can be protected by 4 digit password.

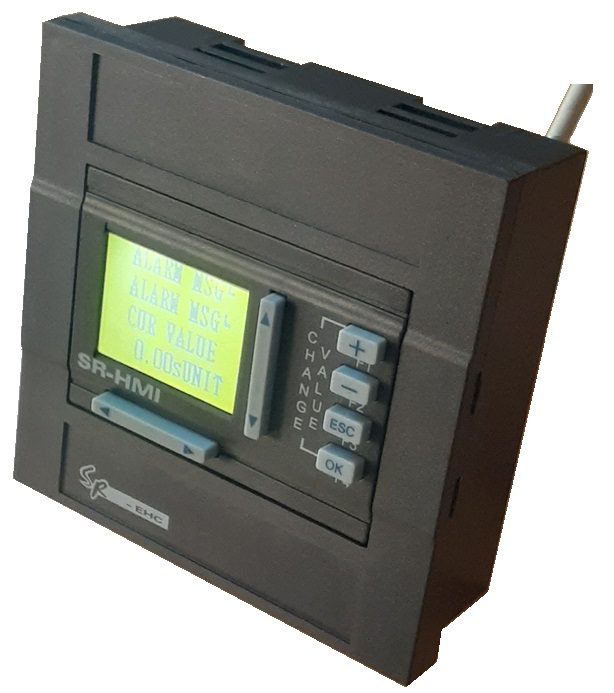

SR-EFC Modular Panel Mount Adaptor for SR-HMI
The SR-EFC is a panel mounting adapter kit for the SR-HMI. The SR-EFC allows operator to view and adjust certain operational parameters in the controller from the front of the panel.
APB Series PLC with Modbus

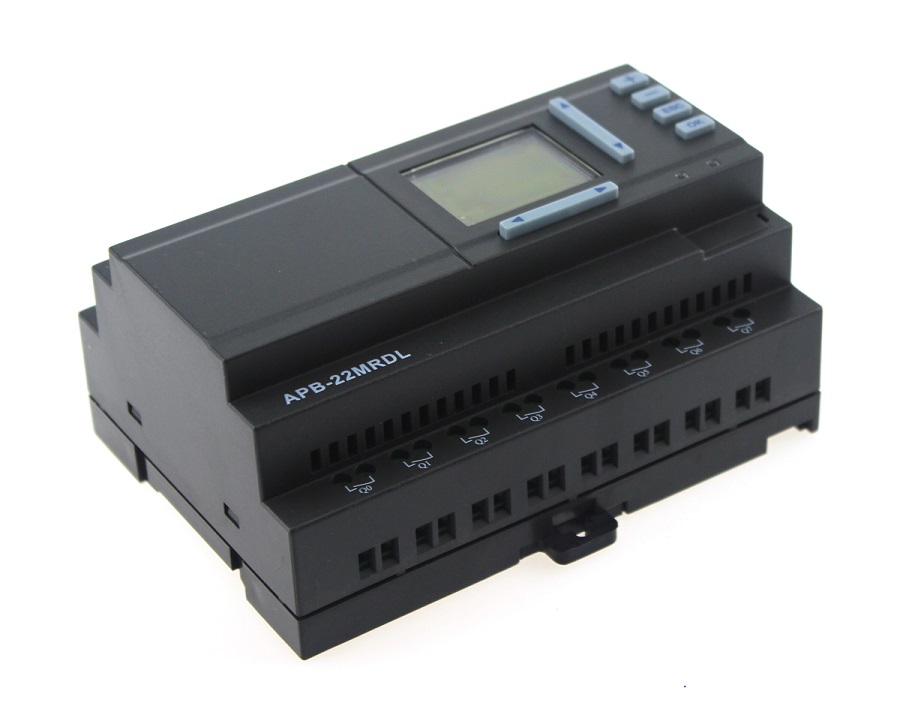

APB-MRDL 22 I/O Modbus RTU Slave PLC
The APB-MRDL is a low cost, PLC with 22 I/O, 14 Digital in (12 x 10 bit analogue 0-10V) and 8 x mechanical relay outputs with Modbus RTU Slave protocol. The APB has an integrated frontal display which can display 4 x 16 lines text ,user graphics and allow adjustment of parameters. High speed inputs 0-10Khz which can be used in quadrature mode for positioning and powerful FBD based free program software.

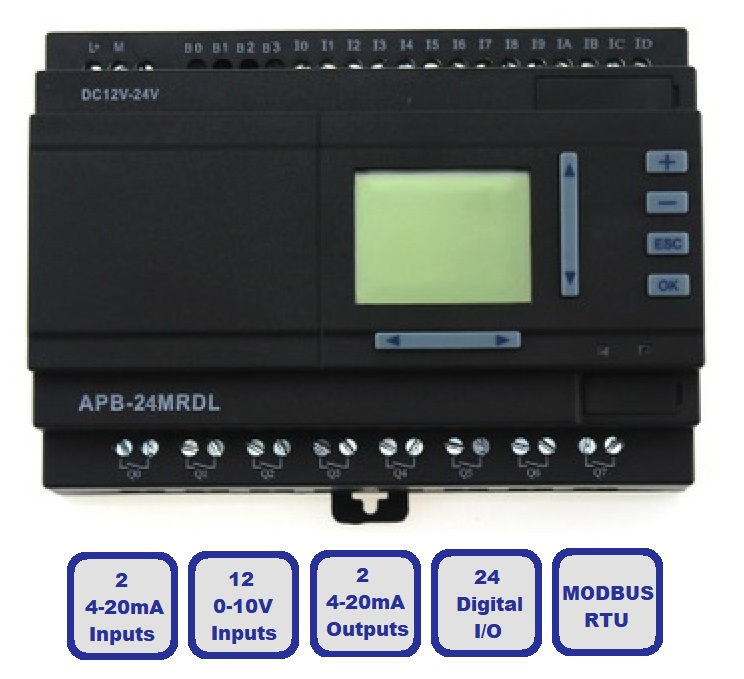

APB24-MRDL 24 I/O Modbus RTU Slave PLC
The APB24-MRDL has the same extensive features as the APB-22MRDL except 14 Digital in (12 x 10 bit analogue 0-10V and 2 x 4-20mA) and 6 x mechanical relay outputs (2 analogue output) with Modbus RTU Slave protocol.

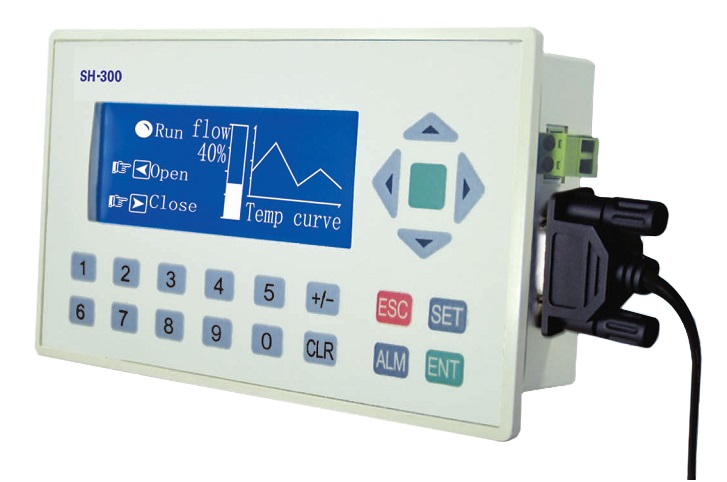

SH-300 Text Panel HMI
SH300 is a low cost 4.3" monochrome 192 x 64 pixel, text panel or HMI that can be connected to a PLC or other Modbus RTU slave device to display variables, statuses and allow operator modification of threholds and presets. the SH-300 can also display basic graphics such as push buttons, lamps, bar graphs, trends and bit maps. The windows based project development software of SH300 is user friendly and easy to learn. The SH300 HMI supports Modbus RTU functions 03 and 04, there are also protocols for many third party devices including Siemens, Allan Bradley, Mitsubishi, Omron etc

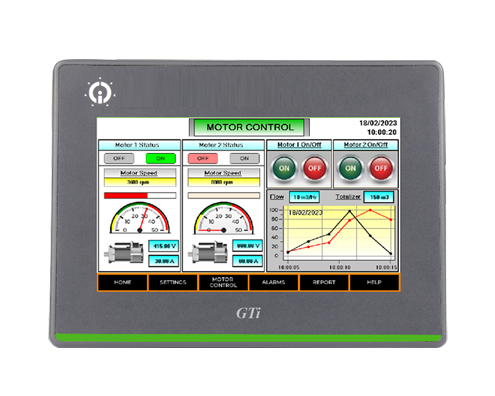

HMXXXB GTI HMI
HM104 4.3", HM107 7" and HM110 10" HMI panels featuring Data logging, Trends, Alarm, Recipe, and Password Management. (With & Without Ethernet Model), Touch Panel HMI redefines user-friendliness, efficiency, and precision. These HMI's offer seamless communication between the operator and the machine, regardless of whether Ethernet connectivity is available. Modbus RTU, Modbus TCP and third party drivers.
